SKU: SC-N16

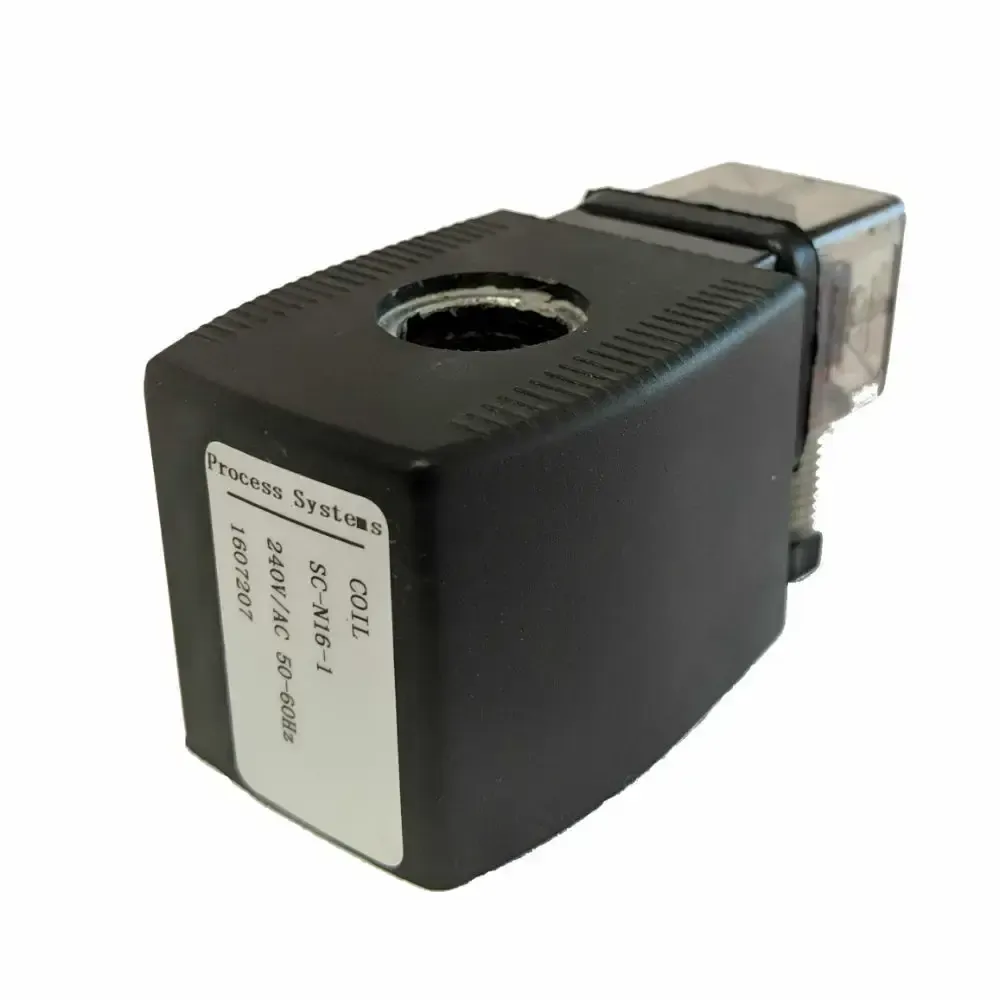

16.1mm Solenoid Coil

From $71.50

Inc GST
In Stock
Make an Enquiry

Class H clsoed wound insulation which results in a maximum operating temperature of 180°C and max ambient temperature of 50°C.

Voltage Resistance (Ω) Current (A) Power Temperature
DC12V 7.65 1.490 18W 85
DC24V 30 0.780 18.5W 85
AC24V 4.95 0.710 17VA 80
AC110V 118 0.155 17VA 80
AC240V 400 0.105 25VA 75

*Above measurements are in its cold state @ 15℃

12mm Solenoid Valve Coil

Dimension Measurement (mm)
Shaft Diameter (Ø) 16
Height (H) 40
Width (B) 43
Length to Centre (L1) 25
Length Overall (L2) 59

Operator Size 16mm
Watts 20
Volt Amps 21
Voltage All
Insulation Class H

Rating IP65

.
.
