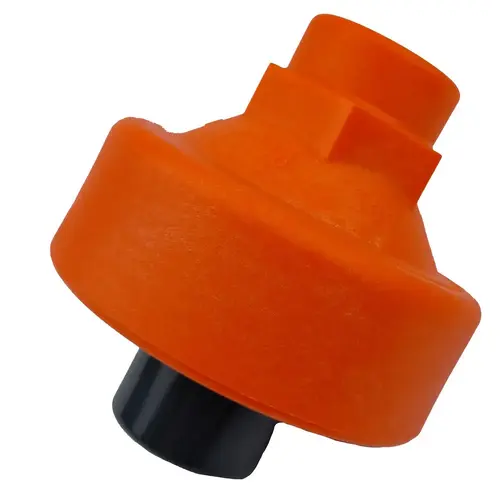

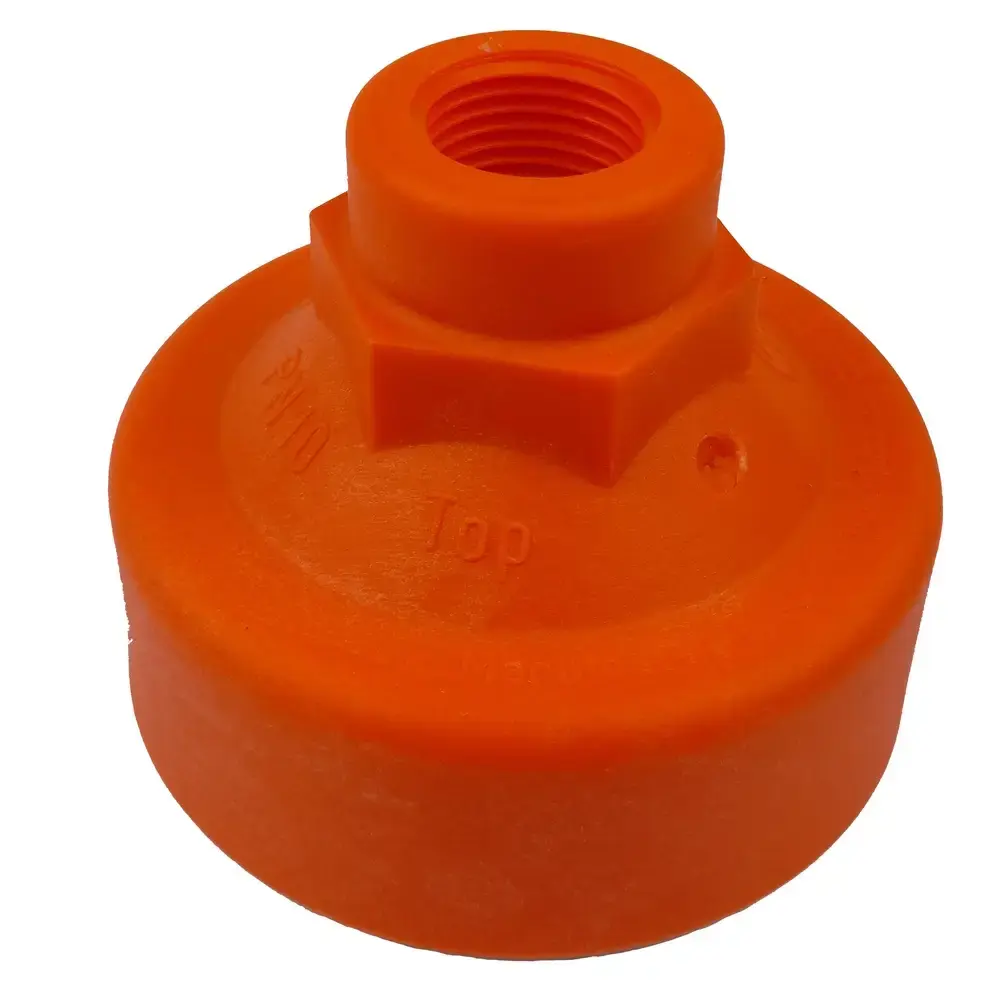

The uPVC Gauge Diaphragm seal is ideal for applications where a Stainless Steel diaphragm is not suitable. Suitable for media pressures up to 10 Bar (see below chart), this seal has an EPDM diaphragm with a PTFE coating on the media side. This makes it ideal for use in chemcial applications where the internals of the gauge needs to be protected.
All diaphragm seals can be filled and mounted to gauges using a selection of filling medias available. Contact Sales for further information on filling media and assembly to pressure gauge.

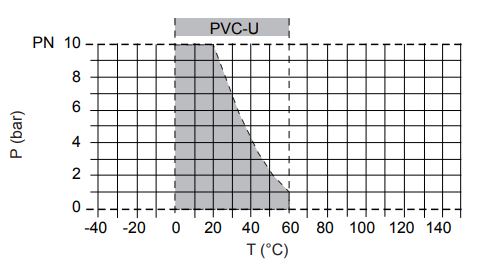

*Note: The above Pressure Temperature curve is a guide for media which do not negatively impact the physical and chemical characteristics of the valve material.
Connection | d | DN | D | h | t |
---|---|---|---|---|---|
G1/4" | 25 | 20 | 80 | 86 | 18 |
G1/2" | 32 | 25 | 80 | 86 | 22 |
Item | Description |
---|---|
1 | Pressure Gauge Connection |
2 | Bonnet |
3 | Separating Diaphragm (EPDM with PTFE coating) |
4 | Bottom Section |
