50% OFF RRP $121.00

SKU: LES52-02

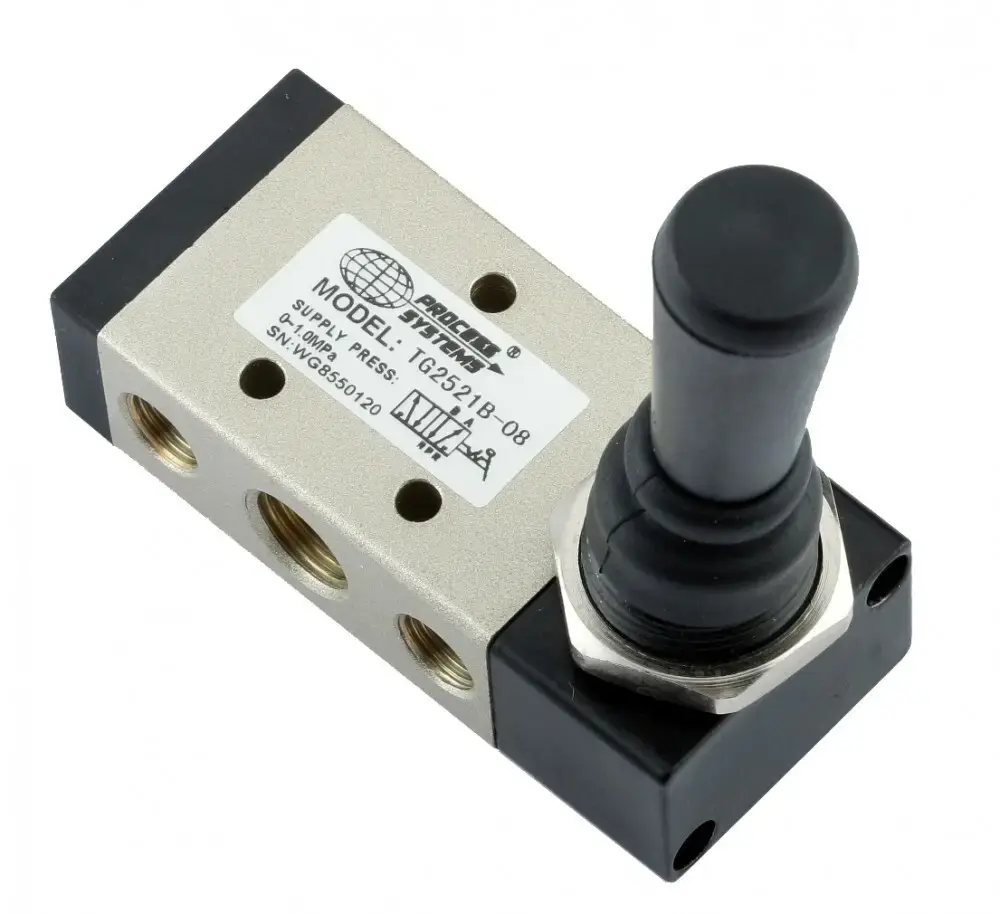

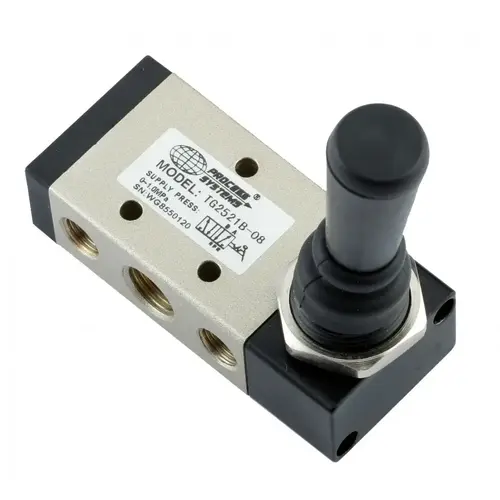

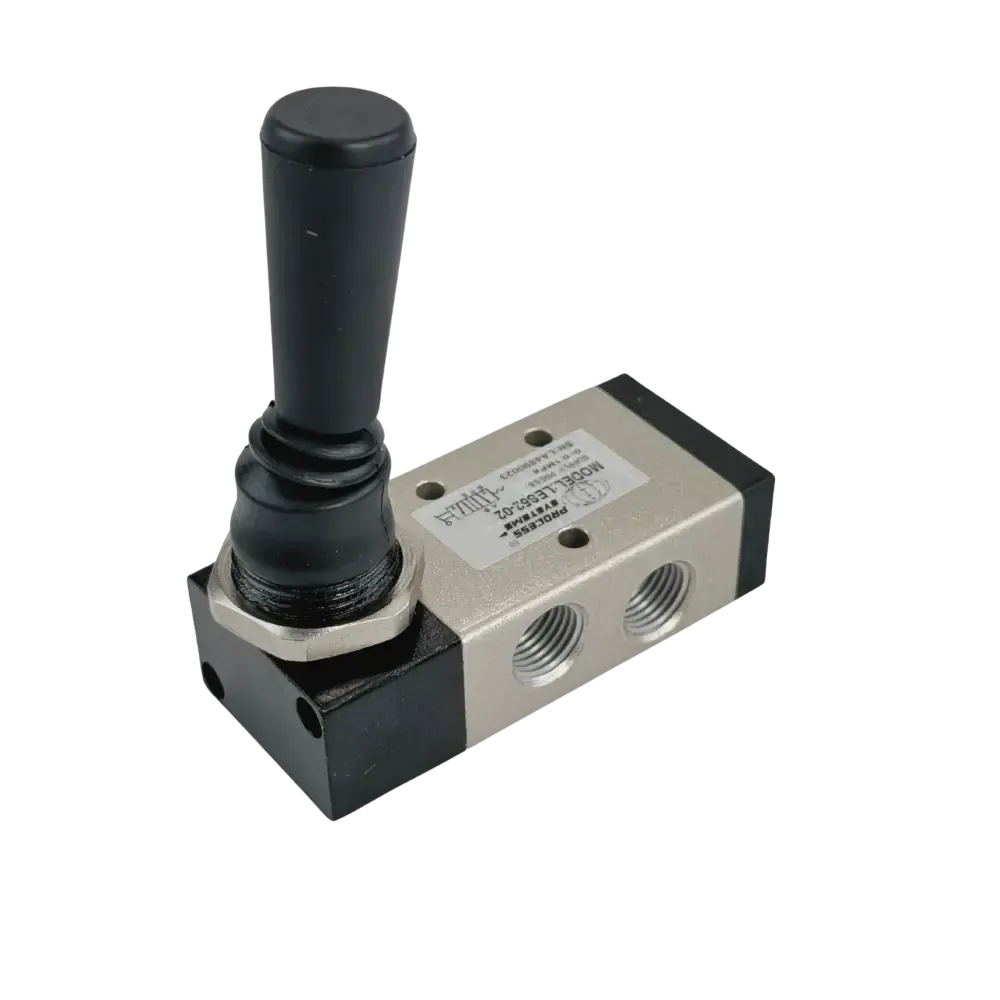

1/4" BSP Aluminium 5/2 Way Lever Spring

$60.50

Inc GST
In Stock
Make an Enquiry

The LES52 series are a five way two joystick control, spring return valve. Ideal for controlling cylinders or pneumatic actuators simply push the lever one way and then release to return back to its resting position. Simple to use, install and maintain.

5 way 2 position lever spring valve

Specification LES52-02
Port Size (BSPP) 1/4"
Exhaust Size 1/8”
Function 5/2 Lever Spring
Pressure Range 0 to 10 BAR (147 psi)
Max Inlet Pressure 10 BAR (147 psi)
Medium Temperature -5 to 60°C
Body Die Cast Aluminium
End Caps Reinforced Plastic
Joystick Thermoplastic
Lubrication Not Required
Applicable Medium Air

5 way 2 position lever spring valve

Size 1/4" BSP
Function 5 way 2 position lever
Body Aluminium
Pressure Range 0 to 10 BAR
Media Air

LES52-02

1/4" BSP Aluminium 5/2 Way Lever Spring

Features:

Size 1/4" BSP
Function 5 way 2 position lever
Body Aluminium
Pressure Range 0 to 10 BAR
Media Air

Description:

The LES52 series are a five way two joystick control, spring return valve. Ideal for controlling cylinders or pneumatic actuators simply push the lever one way and then release to return back to its resting position. Simple to use, install and maintain.

5 way 2 position lever spring valve

Specification LES52-02
Port Size (BSPP) 1/4"
Exhaust Size 1/8”
Function 5/2 Lever Spring
Pressure Range 0 to 10 BAR (147 psi)
Max Inlet Pressure 10 BAR (147 psi)
Medium Temperature -5 to 60°C
Body Die Cast Aluminium
End Caps Reinforced Plastic
Joystick Thermoplastic
Lubrication Not Required
Applicable Medium Air
.

1/4" BSP Aluminium 5/2 Way Lever Spring

LES52-02

Dimensions:

5 way 2 position lever spring valve

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult PCIPro Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.

WARRANTY INFORMATION

All valve series and other products manufactured or distributed by PCIPro are warranted by PCIPro to be free of defects in material and workmanship for a period of 1 year from the date of purchase or as the manufacturer warrants. PCIPro obligation under this warranty is limited to repair or replacement of the defec1ive product or refund of the purchase price paid solely at the discretion of PCIPro and provided such defective product is returned to PCIPro freight prepaid and upon examination by PCIPro such product is found defective. This warranty shall be void in the event that the product has been subject to misuse, misapplication, improper maintenance, modification or tampering. This warranty is expressed in lieu of all other warranties, expressed or implied from PCIPro representatives or employees. PCIPro reserves the right to change Valve and Brochure specifications without notice.

.
