SKU: SC-C2

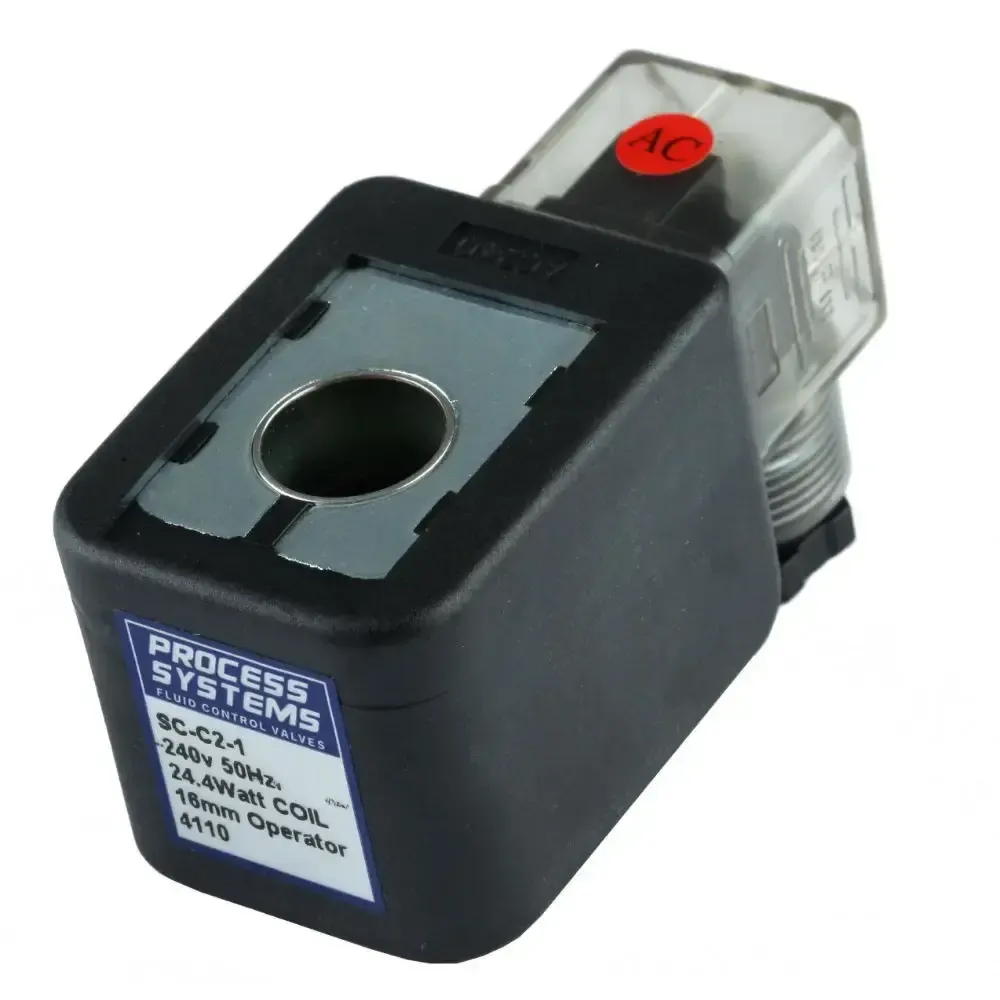

16.1mm Solenoid Coil

From $71.50

Inc GST
In Stock
Make an Enquiry

Solenoid Coil and DIN Plug to suit 16.1mm operator. It can suit any brand solenoid valve as long as it complies to the specs of this coil, our models are listed below. Class H closed wound insulation which results in a maximum operating temperature of 180°C and max ambient temperature of 50°C.

Valve Series Description
B55 Brass 2/2 Zero Differential Normally Closed
S55 316 Stainless Steel 2/2 Differential Normally Closed
B75 Brass 2/2 Differential Normally Closed
B76 Brass 2/2 Differential Normally Open
S75 304 Stainless Steel 2/2 Differential Normally Closed
B75H Brass High Pressure 2/2 Differential Normally Closed
B75HH Brass Very High Pressure 2/2 Differential Normally Closed
B55H Brass High Pressure 2/2 Direct Acting Normally Closed
S55H 316 Stainless Steel High Pressure 2/2 Direct Acting Normally Closed
B56 Brass 2/2 Direct Acting Normally Open

16.1mm Solenoid Valve Coil

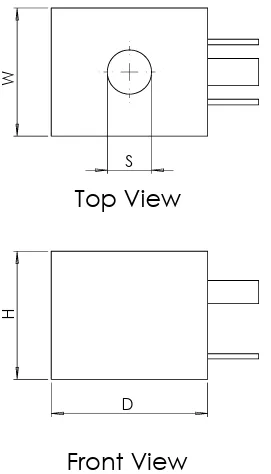

Dimension Measurement (mm)
S 16.1
H 40.6
W 42.1
D 56.0

Operator Size 16.1mm
Watts 24
Volt Amps 24.4
Voltage All
Insulation Class H

Rating IP65

.
.
