3 Way 2 position Roller Lever Spring Valve

From $19.25

In Stock
Make an Enquiry

The RLS32 series are a three way two position roller lever spring return valve. The lever is pressed down (triggered by something going over the top of the roller) and once released the lever will spring back to its resting position. Ideal for tripping from another air ram. Simple to use, install and maintain.

3 way 2 position roller valve spring return

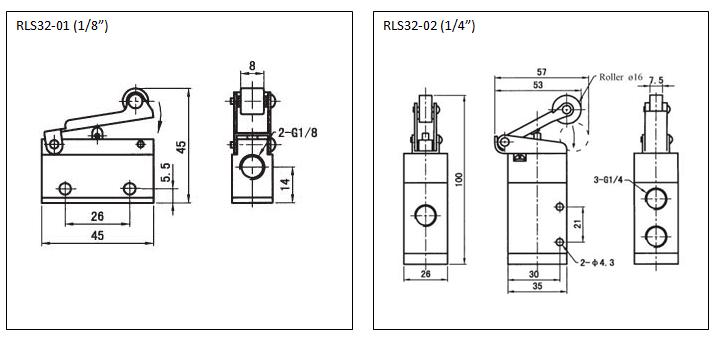

Specification RLS32-01 RLS32-02
Port Size (BSPP) 1/8” 1/4"
Pressure Range 0 to 10 BAR
Max Inlet Pressure 10 BAR
Medium Temperature -5 to 60°C
Construction Die Cast Aluminium
Lubrication Not Required
Applicable Medium Air

3 way 2 position roller valve

Size 1/8" to 1/4" BSP
Function 3 way 2 position roller lever
Body Aluminium
Pressure Range 0 to 10 BAR
Media Air
