SKU: RBS52

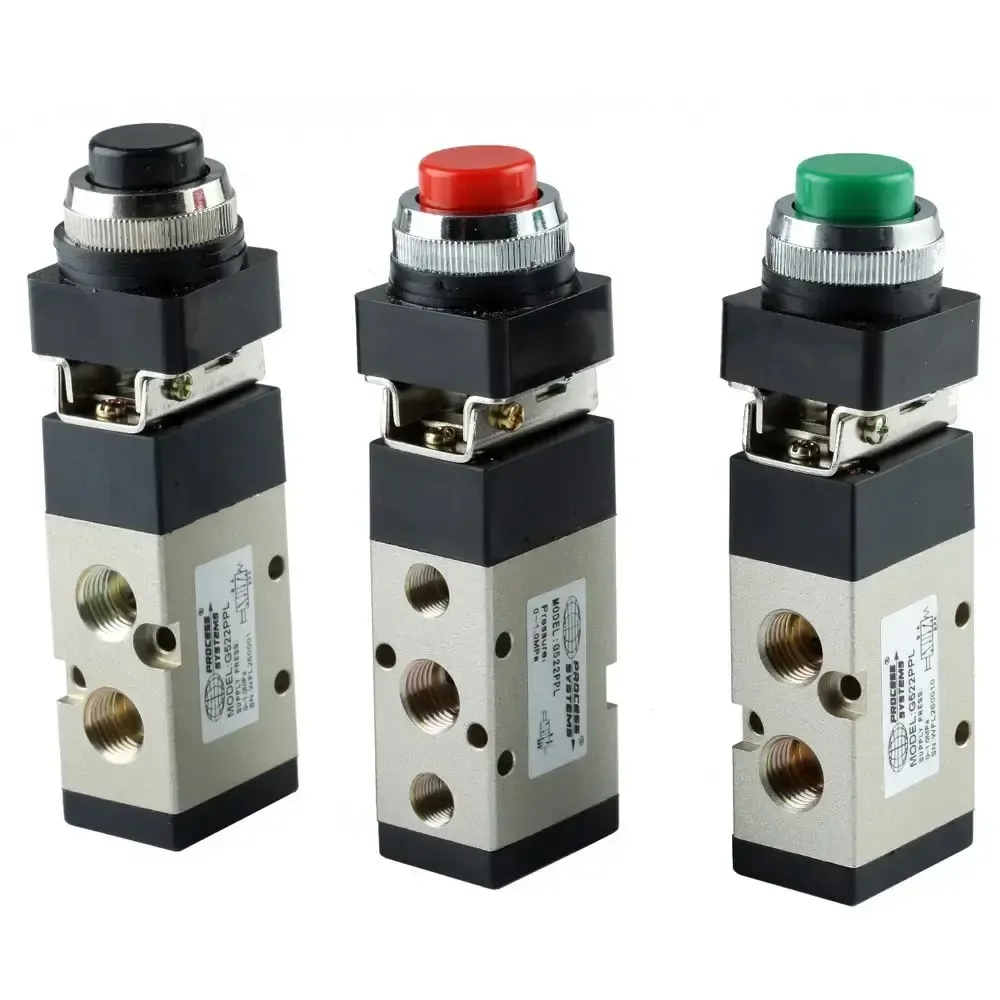

5 Way 2 position Raised Button Spring Return Valve

From $60.50

Inc GST
In Stock
Make an Enquiry

The RBS52 series are a five way two position raised button spring return hand valve. When pressed it will activate and then return to its resting position once the user removes pressure from the button. Simple to use, install and maintain.

Specification RBS52-02-B RBS52-02-G RBS52-02-R
Port Size G1/4” G1/4” G1/4”
Exhaust Port Size 1/8” 1/8” 1/8”
Button Colour Black Green Red
Pressure Range 0 to 10 BAR
Max Inlet Pressure 10 BAR
Medium Temperature -5 to 60°C
Body Die Cast Aluminium
End Caps Reinforced Plastic
Button Thermoplastic
Lubrication Not Required
Applicable Medium Air

Size 1/4" BSP
Function 5 way 2 position raised button
Body Aluminium
Pressure Range 0 to 10 BAR
Media Air

.
.
