SKU: REG

Airline Regulator

From $24.20

Inc GST
In Stock
Make an Enquiry

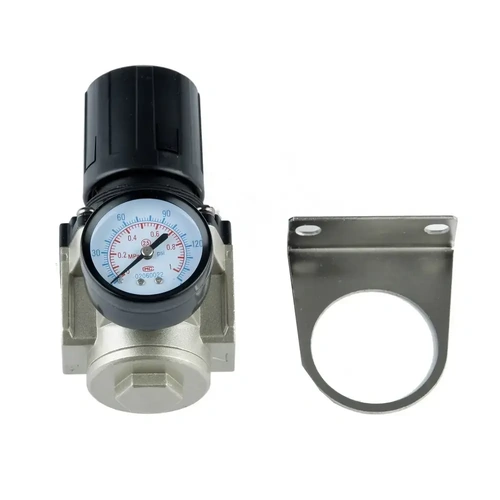

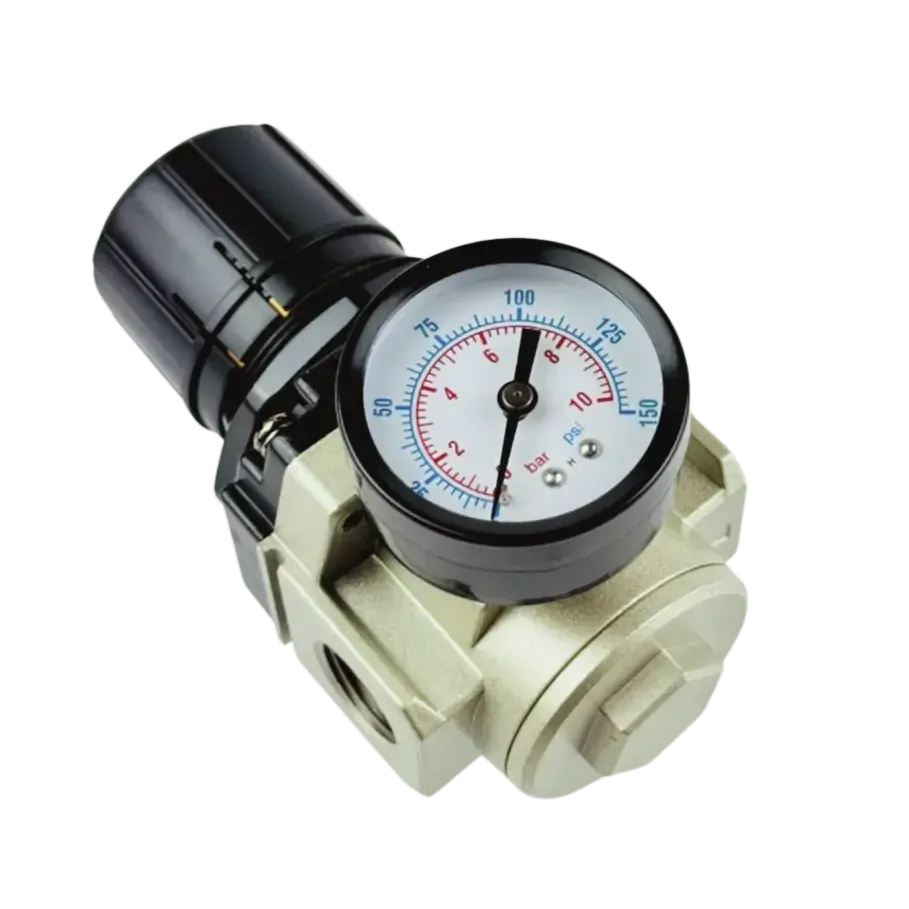

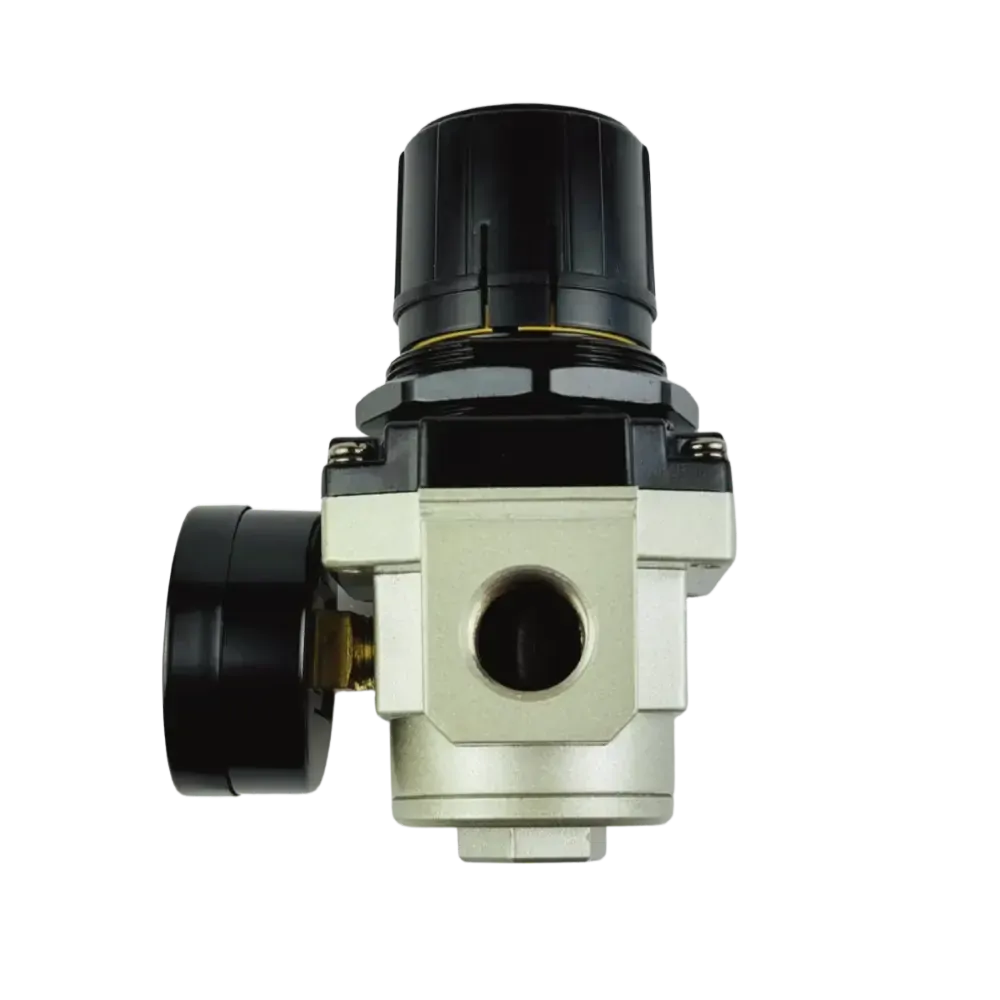

Airline regulator designed to control downstream pressure. The downstream pressure is set by winding the handle of the regulator in our out. The set pressure can be checked by looking at the gauge on the front of the unit.

Specification REG-02 REG-03 REG-04 REG-05 REG-06 REG-08 REG-09
Port Size (BSPP) 1/4” 3/8” 1/2” 3/4” 1” 1 ½” 2”
Flow Rate L/min 550 2500 6000 8000 8000
Pressure Range 0.5 BAR to 8.5 BAR 0.5-16 BAR
Max Inlet Pressure 10 BAR 16 BAR
Medium Temperature 0 to 60°C
Relief Pressure Set Pressure + 0.5 BAR (relief flow rate of 0.1 L/min)
Construction Relief Type, Die Cast Aluminium
Gauge Port Size 1/8" 1/4" 1/4"

Airline Regulator

Model A A1 B C D E F G H I J K P
REG-02 40 40 82 17 9.6 43.1 5.4 1/4" 2 54 31.5 43 33.5
REG-03 53 53 116 35 1.5 41.5 6.5 3/8" 2 57 48.75 45 42.5
REG-04 70 70 131.5 37.5 2 55.5 8.5 1/2" 2 61.5 48.25 53 52.5
REG-05 75 70 135.5 37.5 2 55.5 8.5 3/4" 2 64.5 48.25 57 52.5
REG-06 90 90 152 49 2 55.5 8.5 1" 2 73 48.25 62 52.5

 Air Line Regulator

Model A B C D E F G
REG-08 260 95 108 82 120 1/4" 1-1/2"
REG-09 260 95 108 82 120 1/4" 2"
All dimensions in mm unless shown otherwise.

Size 1/4" to 2" BSP
Function Air Regulator - Relieving
Body Die Cast Aluminium
Pressure Range 0.5 to 8.5 BAR
Media Air

Others Also Bought

REG

Airline Regulator

Features:

Size 1/4" to 2" BSP
Function Air Regulator - Relieving
Body Die Cast Aluminium
Pressure Range 0.5 to 8.5 BAR
Media Air

Description:

Airline regulator designed to control downstream pressure. The downstream pressure is set by winding the handle of the regulator in our out. The set pressure can be checked by looking at the gauge on the front of the unit.

Specification REG-02 REG-03 REG-04 REG-05 REG-06 REG-08 REG-09
Port Size (BSPP) 1/4” 3/8” 1/2” 3/4” 1” 1 ½” 2”
Flow Rate L/min 550 2500 6000 8000 8000
Pressure Range 0.5 BAR to 8.5 BAR 0.5-16 BAR
Max Inlet Pressure 10 BAR 16 BAR
Medium Temperature 0 to 60°C
Relief Pressure Set Pressure + 0.5 BAR (relief flow rate of 0.1 L/min)
Construction Relief Type, Die Cast Aluminium
Gauge Port Size 1/8" 1/4" 1/4"
.

Airline Regulator

REG

Dimensions:

Airline Regulator

Model A A1 B C D E F G H I J K P
REG-02 40 40 82 17 9.6 43.1 5.4 1/4" 2 54 31.5 43 33.5
REG-03 53 53 116 35 1.5 41.5 6.5 3/8" 2 57 48.75 45 42.5
REG-04 70 70 131.5 37.5 2 55.5 8.5 1/2" 2 61.5 48.25 53 52.5
REG-05 75 70 135.5 37.5 2 55.5 8.5 3/4" 2 64.5 48.25 57 52.5
REG-06 90 90 152 49 2 55.5 8.5 1" 2 73 48.25 62 52.5

 Air Line Regulator

Model A B C D E F G
REG-08 260 95 108 82 120 1/4" 1-1/2"
REG-09 260 95 108 82 120 1/4" 2"
All dimensions in mm unless shown otherwise.

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult PCIPro Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.

WARRANTY INFORMATION

All valve series and other products manufactured or distributed by PCIPro are warranted by PCIPro to be free of defects in material and workmanship for a period of 1 year from the date of purchase or as the manufacturer warrants. PCIPro obligation under this warranty is limited to repair or replacement of the defec1ive product or refund of the purchase price paid solely at the discretion of PCIPro and provided such defective product is returned to PCIPro freight prepaid and upon examination by PCIPro such product is found defective. This warranty shall be void in the event that the product has been subject to misuse, misapplication, improper maintenance, modification or tampering. This warranty is expressed in lieu of all other warranties, expressed or implied from PCIPro representatives or employees. PCIPro reserves the right to change Valve and Brochure specifications without notice.

.
