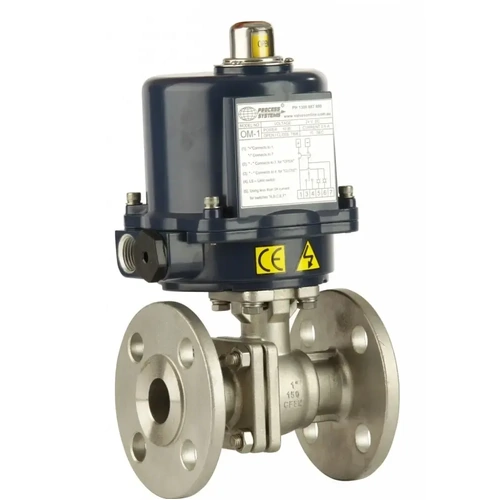

ANSI 300 Stainless Steel Flanged Electric Fire Safe Ball Valve

From $715.00

Inc GST
In Stock
Make an Enquiry
  • Two way ANSI 300 Flanged 316 Stainless Steel Electric Ball Valve
  • Fire Safe Approved API607 Sixth Edition Cert. 230679
  • IP67 Actuator with manual override & extra limit switches
  • Namur Interface, Adjustable Stops & Visual Indicator
  • Reinforced PTFE seats
  • Tested to API598
Model Size (mm) Actuator Media Pressure Media Temperature
BLS4FA300-E*-RT 15 0M-1 Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C
BLS5FA300-E*-RT 20 0M-1 Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C
BLS6FA300-E*-RT 25 0M-1 Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C
BLS7FA300-E*-RT 32 0M-1 Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C
BLS8FA300-E*-RT 40 0M-1 Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C
BLS9FA300-E*-RT 50 0M-A Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C
BLS10FA300-E*-RT 63 0M-2 Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C
BLS11FA300-E*-RT 80 0M-3 Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C
BLS12FA300-E*-RT 100 0M-4 Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC.

ANSI 300 Flanged Stainless Steel Ball Valve Pressure vs Temperature

Electric Fire Safe Stainless Steel Ball Valve

Size Ød L ØD ØD1 ØD2 b f Z-Ød1 h H A B C
1/2" 15 108 89 60.5 35 11 2 4-Ø15 48 245.5 106 153 -
3/4" 20 117 98 70 43 11 2 4-Ø19 53 255 106 153 -
1" 25 127 108 79.5 51 12 2 4-Ø19 58.5 265.5 106 153 -
1-1/4" 32 140 117 89 64 13 2 4-Ø19 71 282.5 106 153 -
1-1/2" 40 165 127 98.5 73 15 2 4-Ø22 76.5 293 106 153 -
2" 50 178 152 120.5 92 16 2 8-Ø19 85 361 106 200 -
2-1/2" 65 190 178 139.5 105 18 2 8-Ø22 110 467 181 268 231
3" 80 203 190 152.5 127 19 2 8-Ø22 122.5 485.5 181 268 231
4" 100 229 229 190.5 157 24 2 8-Ø22 145.5 528 181 268 231

All dimensions in mm unless shown otherwise.

Electric Fire Safe Stainless Steel Ball Valve

Item Description Material
1 Cap CF8M
2 Bolt SS304
3 Body Gasket SS316 +  Graphite
4 Body CF8M
5 Ball SS316
6 Ball Seat Pure PTFE
7 Stem SS316
8 Thrust Washer Pure PTFE
9 O-Ring Viton
Item Description Material
10 Stem Packing Pure Graphite
11 Packing Ring SS304
12 Bellevlle Washer SS301
13 Nut Stopper SS304
14 Nut SS304
15 Actuator Body Powder Coated Die Cast Aluminium
16 Fasteners SS316
17 Manual Override Handwheel Aluminium



Size 15mm to 100mm
Body 316 Stainless Steel
Seat PTFE
Pressure 50 Bar @ ambient
Temperature -20°C to 180°C
Actuation Electric
Fire Safe Approved

DATA SHEET

BLSF3E

ANSI 300 Stainless Steel Flanged Electric Fire Safe Ball Valve

Features:

Size 15mm to 100mm
Body 316 Stainless Steel
Seat PTFE
Pressure 50 Bar @ ambient
Temperature -20°C to 180°C
Actuation Electric
Fire Safe Approved

Description:

  • Two way ANSI 300 Flanged 316 Stainless Steel Electric Ball Valve
  • Fire Safe Approved API607 Sixth Edition Cert. 230679
  • IP67 Actuator with manual override & extra limit switches
  • Namur Interface, Adjustable Stops & Visual Indicator
  • Reinforced PTFE seats
  • Tested to API598
Model Size (mm) Actuator Media Pressure Media Temperature
BLS4FA300-E*-RT 15 0M-1 Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C
BLS5FA300-E*-RT 20 0M-1 Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C
BLS6FA300-E*-RT 25 0M-1 Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C
BLS7FA300-E*-RT 32 0M-1 Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C
BLS8FA300-E*-RT 40 0M-1 Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C
BLS9FA300-E*-RT 50 0M-A Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C
BLS10FA300-E*-RT 63 0M-2 Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C
BLS11FA300-E*-RT 80 0M-3 Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C
BLS12FA300-E*-RT 100 0M-4 Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC.

ANSI 300 Flanged Stainless Steel Ball Valve Pressure vs Temperature

.

ANSI 300 Stainless Steel Flanged Electric Fire Safe Ball Valve

BLSF3E

Dimensions:

Electric Fire Safe Stainless Steel Ball Valve

Size Ød L ØD ØD1 ØD2 b f Z-Ød1 h H A B C
1/2" 15 108 89 60.5 35 11 2 4-Ø15 48 245.5 106 153 -
3/4" 20 117 98 70 43 11 2 4-Ø19 53 255 106 153 -
1" 25 127 108 79.5 51 12 2 4-Ø19 58.5 265.5 106 153 -
1-1/4" 32 140 117 89 64 13 2 4-Ø19 71 282.5 106 153 -
1-1/2" 40 165 127 98.5 73 15 2 4-Ø22 76.5 293 106 153 -
2" 50 178 152 120.5 92 16 2 8-Ø19 85 361 106 200 -
2-1/2" 65 190 178 139.5 105 18 2 8-Ø22 110 467 181 268 231
3" 80 203 190 152.5 127 19 2 8-Ø22 122.5 485.5 181 268 231
4" 100 229 229 190.5 157 24 2 8-Ø22 145.5 528 181 268 231

All dimensions in mm unless shown otherwise.

.

ANSI 300 Stainless Steel Flanged Electric Fire Safe Ball Valve

BLSF3E

Construction:

Electric Fire Safe Stainless Steel Ball Valve

Item Description Material
1 Cap CF8M
2 Bolt SS304
3 Body Gasket SS316 +  Graphite
4 Body CF8M
5 Ball SS316
6 Ball Seat Pure PTFE
7 Stem SS316
8 Thrust Washer Pure PTFE
9 O-Ring Viton
Item Description Material
10 Stem Packing Pure Graphite
11 Packing Ring SS304
12 Bellevlle Washer SS301
13 Nut Stopper SS304
14 Nut SS304
15 Actuator Body Powder Coated Die Cast Aluminium
16 Fasteners SS316
17 Manual Override Handwheel Aluminium
