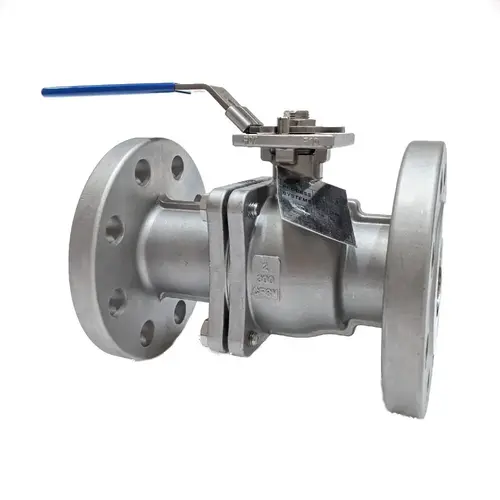

Features:
Size 15mm to 100mm
Body 316 Stainless Steel
Seat Reinforced PTFE
Pressure 50 Bar @ ambient
Temperature -20°C to 180°C
Operation Lockable Lever or Gear Box
Fire Safe API607 Approved
Model | Size (mm) | Media Pressure | Media Temperature | Torque (Nm) |
---|---|---|---|---|
BLSF4FA300-L-T | 15 | Vacuum (29" Hg) to 50 Bar (10 BAR Steam) | -20°C to 180°C | 5 |
BLSF5FA300-L-T | 20 | Vacuum (29" Hg) to 50 Bar (10 BAR Steam) | -20°C to 180°C | 8 |
BLSF6FA300-L-T | 25 | Vacuum (29" Hg) to 50 Bar (10 BAR Steam) | -20°C to 180°C | 10 |
BLSF7FA300-L-T | 32 | Vacuum (29" Hg) to 50 Bar (10 BAR Steam) | -20°C to 180°C | 14 |
BLSF8FA300-L-T | 40 | Vacuum (29" Hg) to 50 Bar (10 BAR Steam) | -20°C to 180°C | 18 |
BLSF9FA300-L-T | 50 | Vacuum (29" Hg) to 50 Bar (10 BAR Steam) | -20°C to 180°C | 25 |
BLSF10FA300-L-T | 63 | Vacuum (29" Hg) to 50 Bar (10 BAR Steam) | -20°C to 180°C | 48 |
BLSF11FA300-L-T | 80 | Vacuum (29" Hg) to 50 Bar (10 BAR Steam) | -20°C to 180°C | 75 |
BLSF12FA300-L-T | 100 | Vacuum (29" Hg) to 50 Bar (10 BAR Steam) | -20°C to 180°C | 110 |

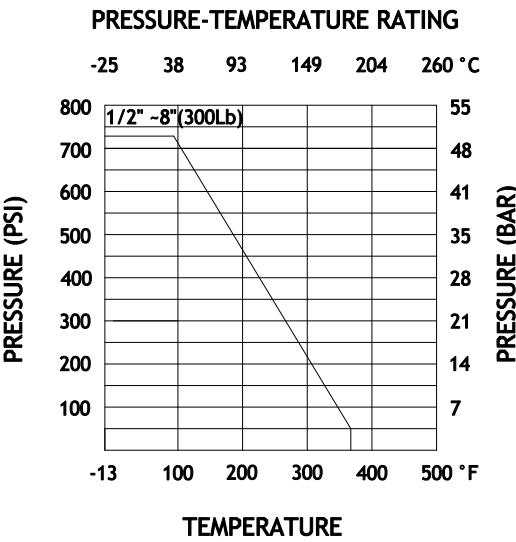

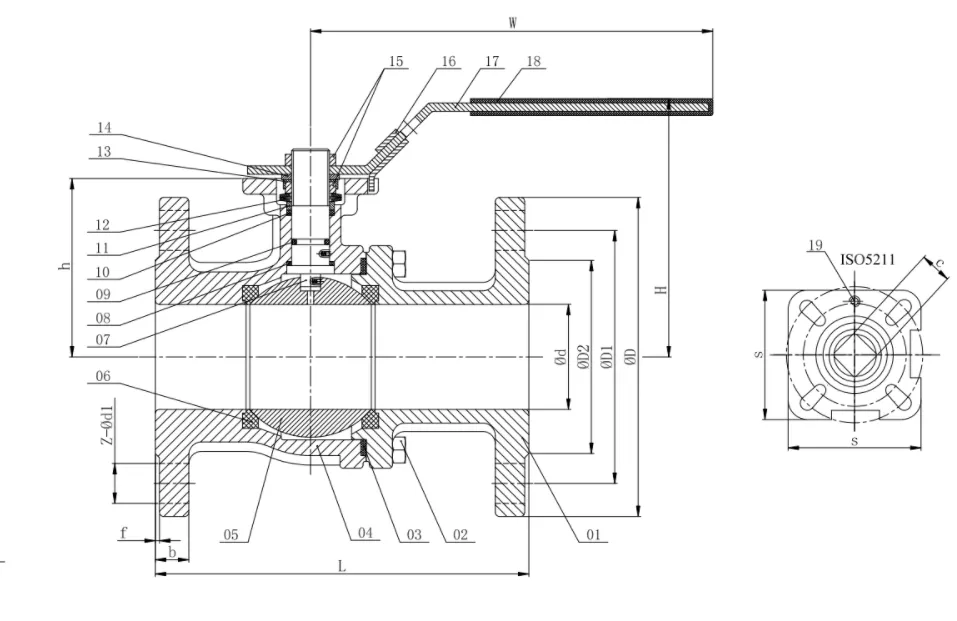

Size | d | L | D | D1 | D2 | b | f | H | W | C | ISO5211 | Z-Ød1 | h | s | Kgs |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1/2" | 15 | 140 | 95 | 66.5 | 35 | 14.5 | 2 | 82 | 117 | 9 | F03/F04 | 4-15 | 49.5 | 42.6 | |
3/4" | 20 | 152 | 117 | 82.5 | 43 | 16 | 2 | 87 | 117 | 9 | F03/F04 | 4-19 | 60.5 | 42.6 | |
1" | 25 | 165 | 124 | 89 | 51 | 17.5 | 2 | 90 | 164 | 11 | F04/F05 | 4-19 | 64 | 50 | |
1-1/4" | 32 | 178 | 133 | 98.5 | 64 | 19.5 | 2 | 100 | 164 | 11 | F04/F05 | 4-19 | 71 | 50 | |
1-1/2" | 40 | 190 | 156 | 114.5 | 73 | 21 | 2 | 116 | 203 | 14 | F05/F07 | 4-22 | 80.5 | 64.5 | |
2" | 50 | 216 | 165 | 127 | 92 | 22.5 | 2 | 125 | 203 | 14 | F05/F07 | 8-19 | 85 | 64.5 | |
2-1/2" | 65 | 241 | 190 | 149 | 105 | 25.5 | 2 | 164 | 255 | 17 | F07/F10 | 8-22 | 110 | 93.6 | |
3" | 80 | 283 | 210 | 168.5 | 127 | 29 | 2 | 174 | 255 | 17 | F07/F10 | 8-22 | 122.5 | 93.6 | |
4" | 100 | 305 | 254 | 200 | 157 | 32 | 2 | 200 | 302 | 17 | F07/F10 | 8-22 | 145.5 | 93.6 |
All dimensions in mm unless shown otherwise.
Item | Part | Material | Qty | Item | Part | Material | Qty |
---|---|---|---|---|---|---|---|
1 | Cap | 1.4408 (CF8M) | 1 | 11 | Packing Ring | SS304 | 1 |
2 | Bolt | SS304 | 4(8) | 12 | Belleville Washer | SS301 | 2 |
3 | Body Gasket | Pure Graphite | 1 | 13 | Nut Stopper | SS304 | 1 |
4 | Body | 1.4408 (CF8M) | 1 | 14 | Plate Washer | SS304 | 1 |
5 | Ball | SS316 | 1 | 15 | Nut | SS304 | 2 |
6 | Ball Seat | Reinforced PTFE | 2 | 16 | Lock Device | SS304 | 1 |
7 | Stem | SS316 | 1 | 17 | Handle | SS304 | 1 |
8 | Thrust Washer | Pure PTFE | 1 | 18 | Plastic Cover | Plastic | 1 |
9 | O-ring | Viton | 1 | 19 | Stop Pin | SS304 | 1 |
10 | Stem Packing | Pure Graphite | 1 |
