SKU: RK-BLSFA-ST

BLSFA Repair Kit 50% Stainless Steel/PTFE for ANSI 150 & ANSI 300 ball valves

From $22.00

Inc GST
In Stock
Make an Enquiry

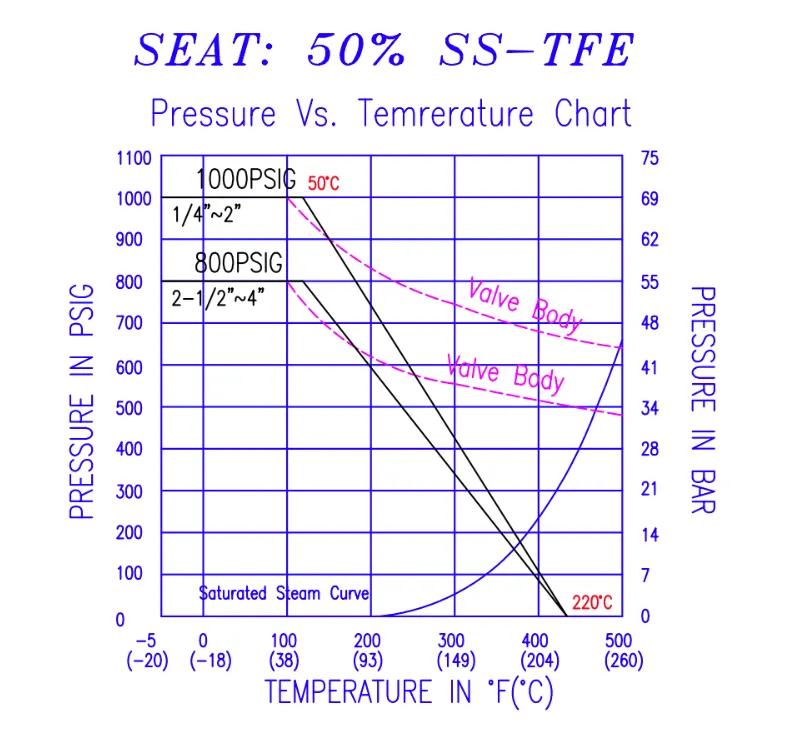

50% stainless and Teflon (PTFE) filled seats for higher pressure and temperature applications. Suits 2 way 2 piece 316 Flanged Stainless Steel Ball Valves. Great for V port ball valves where the seat is exposed to the media for longer periods. The below is pressure rating for the seats only, not the valve body (eg. If fitting to ANSI 150 pound ball valve, the rating of the ball valve applies not the seat).

50% Stainless Steel Filled Seats for Flanged Ball Valves

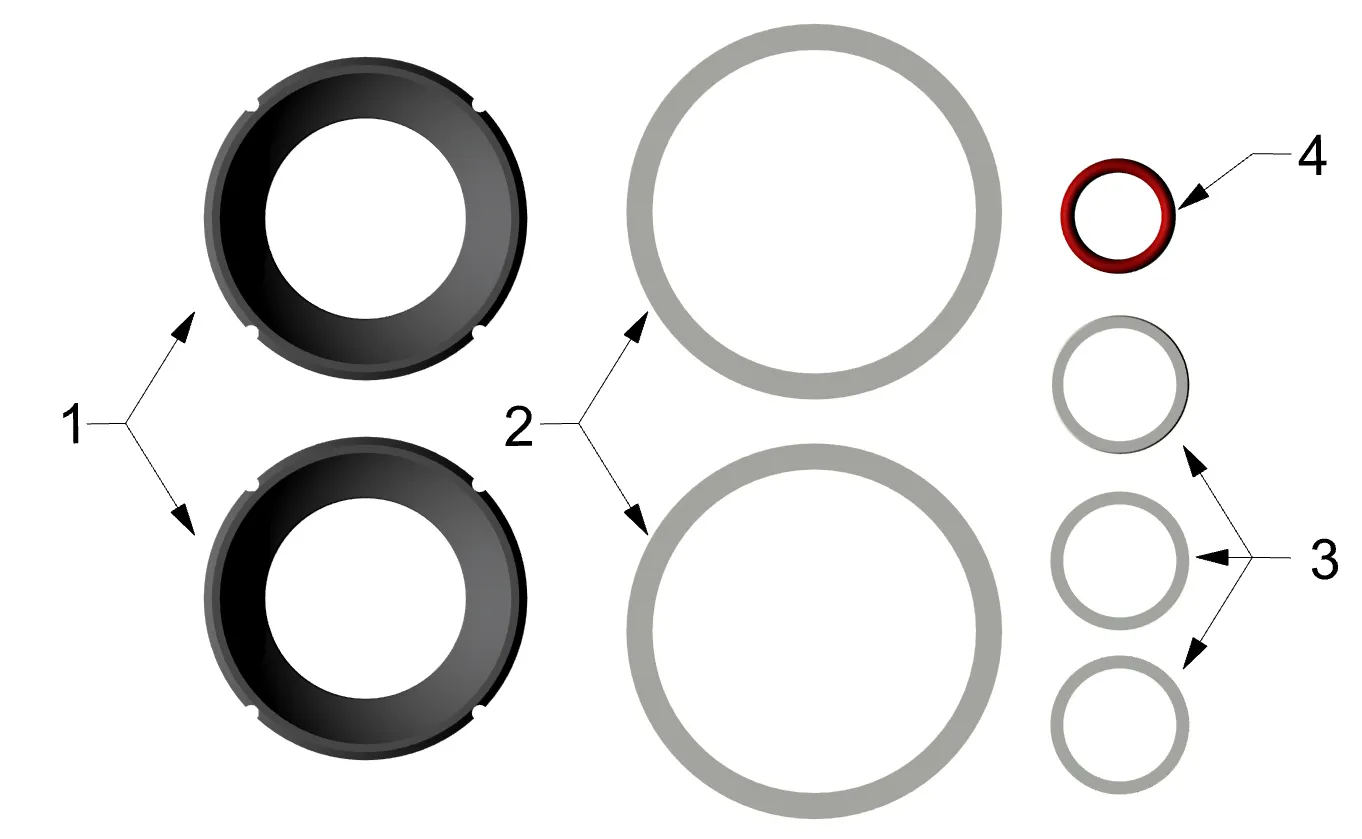

Item Description Material Qty
1 Ball Seat 50% SS 50% PTFE 2
2 Body Gasket PTFE 2
3 Stem Packing PTFE 1 Set
4 O-Ring Viton 1

Size 15mm to 100mm
To Suit 316 Stainless Steel 2 piece Flanged Ball Valves
Pressure 63 BAR @ Ambient
Temperature -20°C to 220°C

.
