SKU: B35M

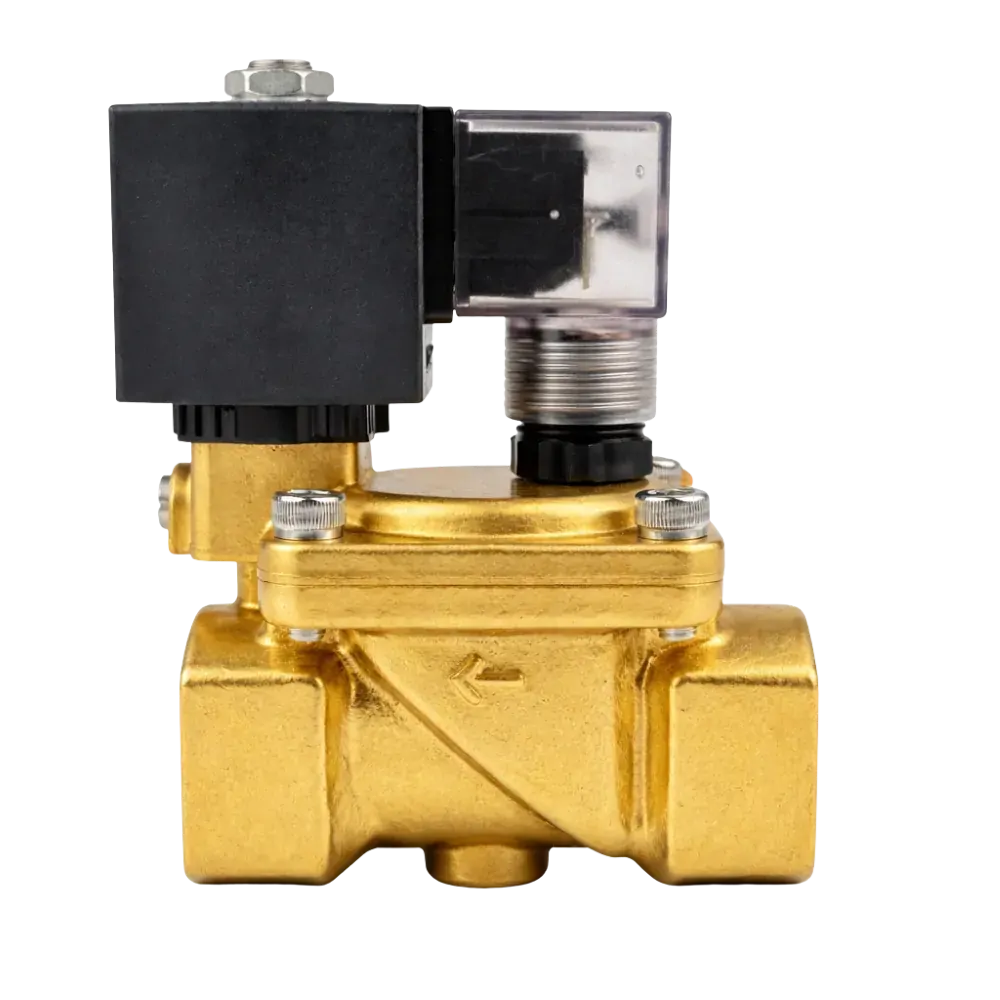

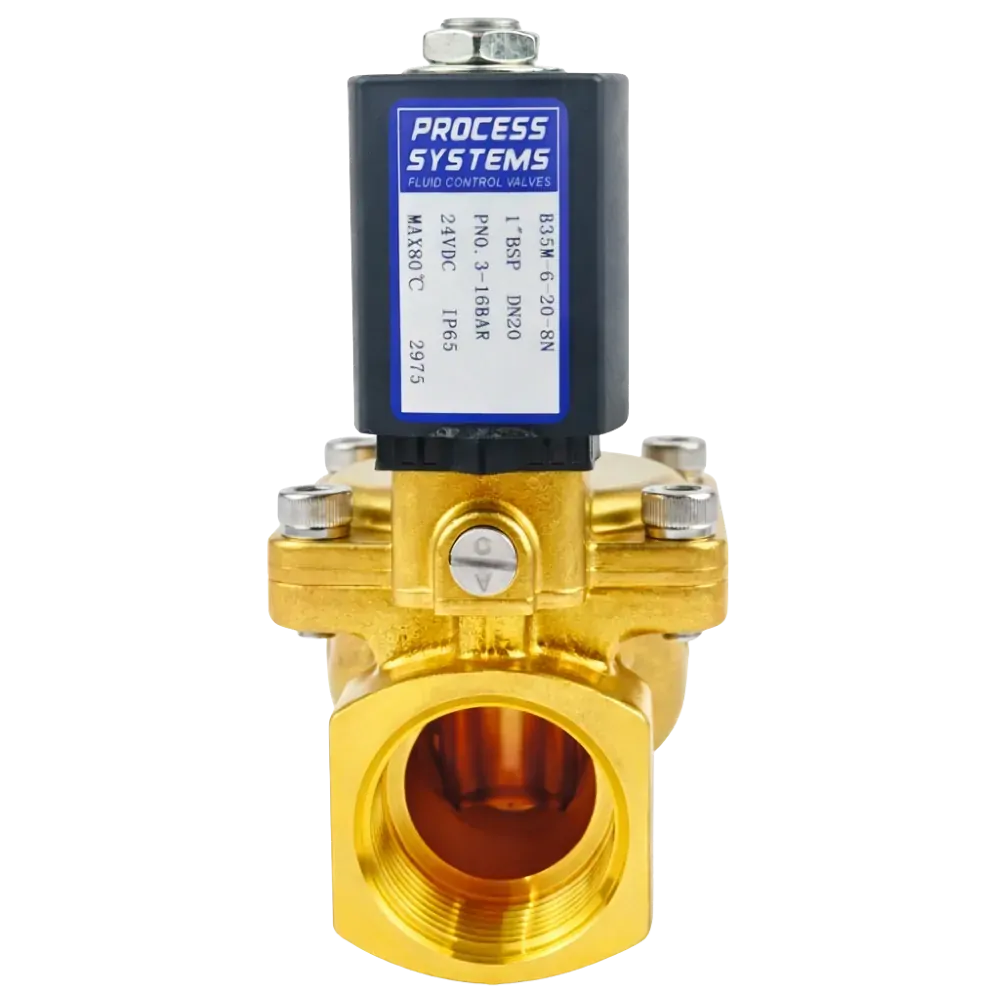

Brass General Purpose Manual Override Normally Closed Differential Solenoid Valve

From $137.50

Inc GST
In Stock
Make an Enquiry
  • General Purpose 2 way Normally Closed (power to open) Solenoid Valve
  • Brass Body, NBR Seals
  • Manual Override
  • 0.3 to 16 Bar Pressure Range
  • 0°C to 80°C Temperature Range
  • For Gases & Liquids
  • Comes with Coil (SC-N12) & LED DIN Plug (IP65)
  • Install in any orientation (upright if possible)

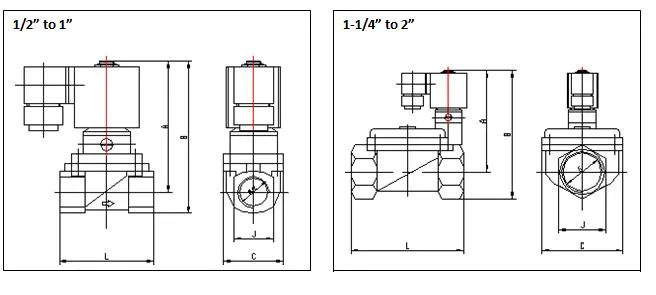

General Purpose Normally Closed Solenoid Valve with Manual Override

Model G (BSP) L (mm) A (mm) B (mm) C (mm) J (mm)
B35-4-14-*NM 1/2" 64 97 111 40 26
B35-5-20-*NM 3/4" 82 106.5 127 60 41
B35-6-20-*NM 1” 82 106.5 127 60 41
B35-7-40-*NM 1-1/4” 132 119 151 96 56
B35-8-40-*NM 1-1/2” 132 119 151 96 56
B35-9-50-*NM 2” 160 133.5 173 112 70

Size 1/2" to 2" BSP
Function Normally Closed (power to open) with Manual Override
Valve Operation Servo Assisted
Body Brass
Seat NBR
Pressure Range 0.3 to 16 BAR
Media Non aggressive media

DATA SHEET
