SKU: PGCAP

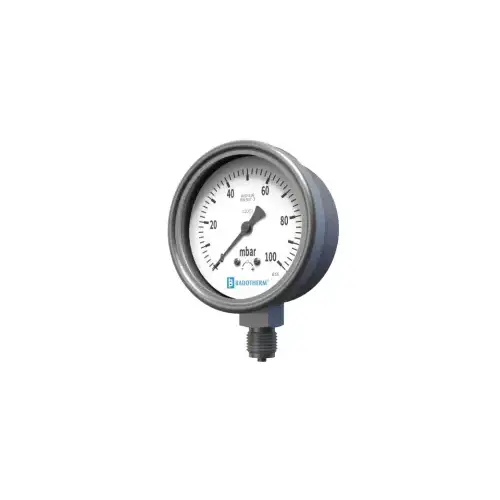

100mm Full Stainless Steel Bottom Entry Capsule Pressure Gauge

From $473.00

Inc GST
In Stock
Make an Enquiry

Badotherm Capsule Pressure Gauge with full stainless steel construction and screw on bevel. These are designed to measure extremely low pressure media environments. It operates by two diaphragms which are welded together to form a capsule (housed inside the body of the gauge). When pressure increases or decreases the capsule deflects outwards or inwards. This is then converted from a linear motion to a rotating one which moves the gauge dial. We do not recommend Capsule gauges for any liquid media.

Pressure Range 0 to 40 kpa
Construction Full Stainless Steel
Function Dual Scale Kpa/PSI pressure gauge
Connection 1/2" NPT Bottom Entry
Design Screw on Bevel

.
