SKU: GLF8

Class 800 Forged Steel Globe Valve

From $60.50

Inc GST
In Stock
Make an Enquiry
  • A105 Forged Steel NPT Threaded Globe Valve
  • Metal to Metal Seat

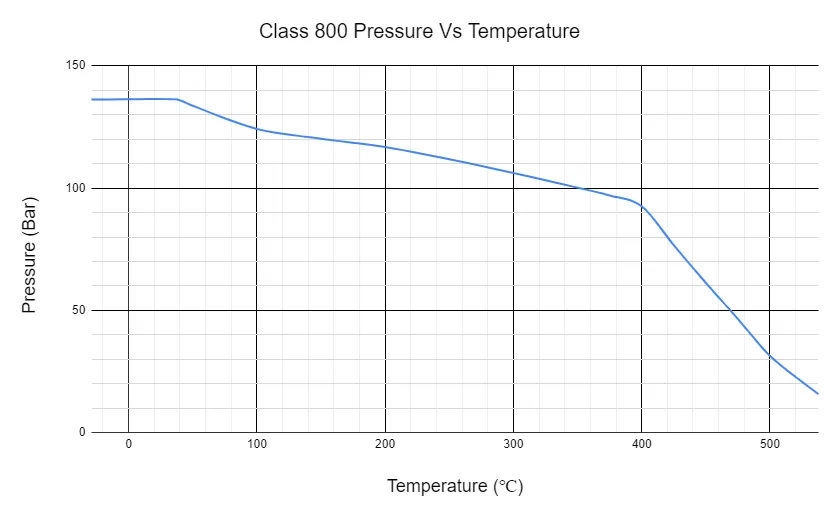

  • 0 to 136 Bar Pressure Range
  • Tested to API598
Model Size (NPT) Design Pressure Media Temperature Weight (kg)
GLF8-04 1/2" 13.62 MPa @ -29°C ~ 35°C 454°C @ 5.5 MPa 2.28
GLF8-05 3/4" 2.37
GLF8-06 1" 4.3
GLF8-07 1 1/4" 5.75
GLF8-08 1 1/2" 7.8
GLF8-09 2" 12.5

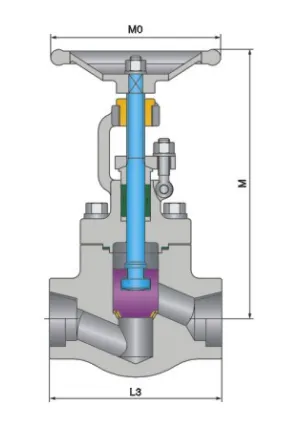

Class 800 Forged Steel Globe Valve Dimensions

Model Size (NPT) L M M0
GLF8-04 1/2" 79 164 100
GLF8-05 3/4" 92 164 100
GLF8-06 1" 111 203 125
GLF8-07 1 1/4" 120 224 160
GLF8-08 1 1/2" 152 260 160
GLF8-09 2" 172 300 180

All dimensions in mm unless shown otherwise.

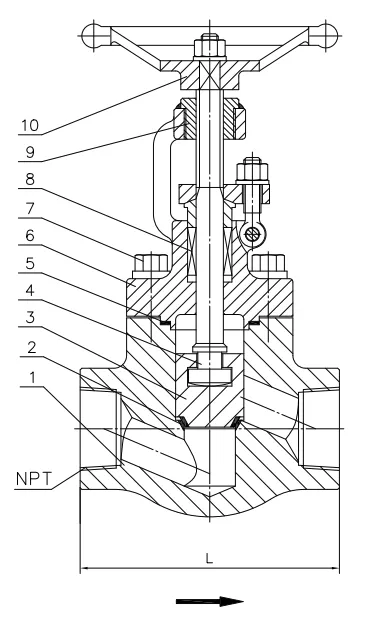

Class 800 Globe Valve Construction

Number Part Name Material
1 Body ASTM A105
2 Seat Deposited 13Cr
3 Disc ASTM A276-420
4 Stem ASTM A276-410
5 Gasket Flexible Graphite/304
6 Bonnet ASTM A105
7 Bonnet Bolt ASTM A193 Gr.B7
8 Packing Flexible Graphite
9 Stem Nut 1045
10 Handwheel ASTM A197

Size 1/2" to 2" NPT
Body Forged Steel
Seat 13Cr reinforced steel
Pressure 136 Bar
