SKU: CRD

Condensate Removal Drain Solenoid Valve

From $192.50

Inc GST
In Stock
Make an Enquiry

The condensate removal drain eliminates the risk of human error by providing a regular controlled system of draining – on time, every time - automatically. The analogue timer is programmable from 0.5 to 10 seconds on and 0 to 45 minutes off. All come standard with isolating ball valve, Y strainer for easy cleaning and coil and DIN plug (IP65). Suitable for draining ring mains, filters, separators, after coolers, dryers, receivers, drip legs and other compressed air systems. Threads conform to ISO 7.1 Sealing Threads.

Model Port Size (BSP) Orifice ømm CV Media Pressure Media Temperature Weight Kg Coil Specifications
CRD-4-2.8-*VY 1/2 2.8 0.19 0 to 40 BAR -10°C to 100°C 0.85 SC-CRD
22 Volt Amps
20 Watts
Class H Insulation
100% ED
CRD-4-3.5-*VY 1/2 3.5 0.27 0 to 16 BAR -10°C to 100°C 0.85
CRD-4-4.5-*VY 1/2 4.5 0.50 0 to 16 BAR -10°C to 100°C 0.85

Please note the 3.5mm model has an integrated Y strainer with the solenoid. All others models are separable.

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

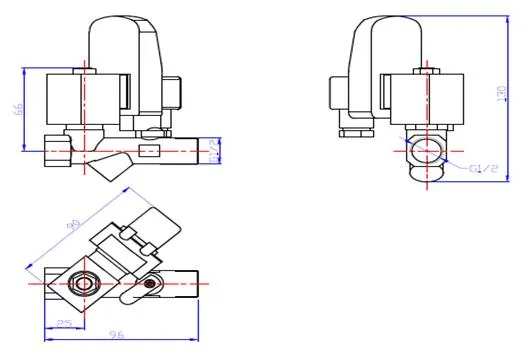

Condensate Removal Solenoid Valve

Size 1/2" BSP only
Function Normally Closed (power to open)
Valve Operation Direct Acting
Body Brass
Seat FKM
Pressure Range 0 to 16 BAR
Media Nonagressive media

.
.
