SKU: YSCF

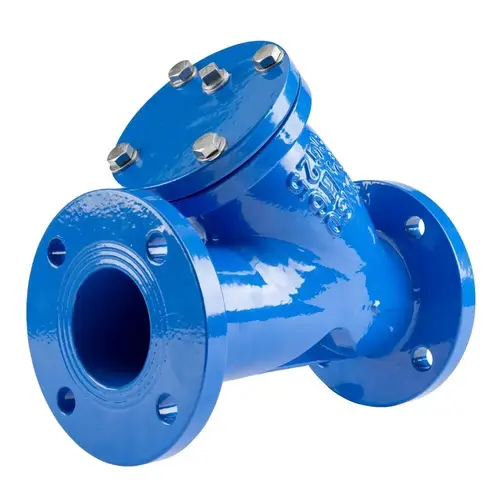

Ductile Iron Y Strainer

From $104.50

Inc GST
In Stock
Make an Enquiry
  • Ductile Iron Table E Flanged Y Strainer
  • 0 to 16 Bar Pressure Range
  • 0°C to 80°C Temperature Range
  • Tested to API598
Model DN (mm) Pressure Range Media Temp Weight (kg) Plug Size
YSCF-050 50 0 to 16 BAR 0 to 80°C 9.6 ¼”
YSCF-065 65 0 to 16 BAR 0 to 80°C 12.3 3/8”
YSCF-080 80 0 to 16 BAR 0 to 80°C 17 ½”
YSCF-100 100 0 to 16 BAR 0 to 80°C 28.1 ½”
YSCF-125 125 0 to 16 BAR 0 to 80°C 40 ½”
YSCF-150 150 0 to 16 BAR 0 to 80°C 48.9 1”
YSCF-200 200 0 to 16 BAR 0 to 80°C 82.3 1”
YSCF-250 250 0 to 16 BAR 0 to 80°C 127.3 1”
YSCF-300 300 0 to 16 BAR 0 to 80°C 200 1”
YSCF-350 350 0 to 16 BAR 0 to 80°C 320 1”
YSCF-400 400 0 to 16 BAR 0 to 80°C 420 1”
YSCF-450 450 0 to 16 BAR 0 to 80°C 620 1”
YSCF-500 500 0 to 16 BAR 0 to 80°C 780 1”
YSCF-600 600 0 to 16 BAR 0 to 80°C 1050 1”

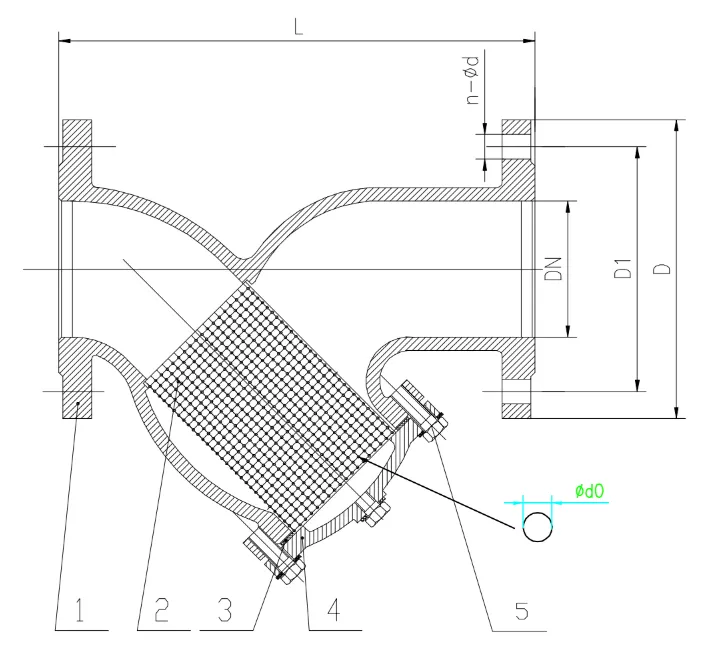

Ductile Iron Y Strainer Flanged Table E

DN L D D1 n-d d0 Mesh
50 230 150 114 4*18 2 10
65 290 165 127 4*18 2 10
80 310 185 146 4*18 3 7
100 350 215 178 8*18 3 7
125 400 255 210 8*18 3 7
150 480 280 235 8*22 4.5 4
200 600 335 292 8*22 5 4
250 730 405 356 12*22 5 4
300 850 455 406 12*26 5 4
350 980 525 470 12*26 5 4
400 1100 580 521 12*26 5 4
450 1200 640 584 16*26 5 4
500 1250 705 641 16*26 5 4

All dimensions in mm unless shown otherwise.

Ductile Iron Y Strainer

Number Part Material Grade Standard
1 Body Ductile Iron GGG50 ASTM A536
2 Screen Stainless Steel SS304 ASTM A370
3 Seating Rubber EPDM
4 Bonnet Ductile Iron GGG50 ASTM A536
5 Bolt Stainless Steel SS304 ASTM A370

Size 50mm to 600mm
Body FBE Coated Ductile Iron
Mesh 304 Stainless Steel
Pressure Range 0 to 16 BAR
Flanged AS2129 Table E / AS4087 PN16
Factory Accredited CE, ISO 9001, TUV, WRAS

Others Also Bought

YSCF

Ductile Iron Y Strainer

Features:

Size 50mm to 600mm
Body FBE Coated Ductile Iron
Mesh 304 Stainless Steel
Pressure Range 0 to 16 BAR
Flanged AS2129 Table E / AS4087 PN16
Factory Accredited CE, ISO 9001, TUV, WRAS

Description:

  • Ductile Iron Table E Flanged Y Strainer
  • 0 to 16 Bar Pressure Range
  • 0°C to 80°C Temperature Range
  • Tested to API598
Model DN (mm) Pressure Range Media Temp Weight (kg) Plug Size
YSCF-050 50 0 to 16 BAR 0 to 80°C 9.6 ¼”
YSCF-065 65 0 to 16 BAR 0 to 80°C 12.3 3/8”
YSCF-080 80 0 to 16 BAR 0 to 80°C 17 ½”
YSCF-100 100 0 to 16 BAR 0 to 80°C 28.1 ½”
YSCF-125 125 0 to 16 BAR 0 to 80°C 40 ½”
YSCF-150 150 0 to 16 BAR 0 to 80°C 48.9 1”
YSCF-200 200 0 to 16 BAR 0 to 80°C 82.3 1”
YSCF-250 250 0 to 16 BAR 0 to 80°C 127.3 1”
YSCF-300 300 0 to 16 BAR 0 to 80°C 200 1”
YSCF-350 350 0 to 16 BAR 0 to 80°C 320 1”
YSCF-400 400 0 to 16 BAR 0 to 80°C 420 1”
YSCF-450 450 0 to 16 BAR 0 to 80°C 620 1”
YSCF-500 500 0 to 16 BAR 0 to 80°C 780 1”
YSCF-600 600 0 to 16 BAR 0 to 80°C 1050 1”
.

Ductile Iron Y Strainer

YSCF

Dimensions:

Ductile Iron Y Strainer Flanged Table E

DN L D D1 n-d d0 Mesh
50 230 150 114 4*18 2 10
65 290 165 127 4*18 2 10
80 310 185 146 4*18 3 7
100 350 215 178 8*18 3 7
125 400 255 210 8*18 3 7
150 480 280 235 8*22 4.5 4
200 600 335 292 8*22 5 4
250 730 405 356 12*22 5 4
300 850 455 406 12*26 5 4
350 980 525 470 12*26 5 4
400 1100 580 521 12*26 5 4
450 1200 640 584 16*26 5 4
500 1250 705 641 16*26 5 4

All dimensions in mm unless shown otherwise.

.

Ductile Iron Y Strainer

YSCF

Construction:

Ductile Iron Y Strainer

Number Part Material Grade Standard
1 Body Ductile Iron GGG50 ASTM A536
2 Screen Stainless Steel SS304 ASTM A370
3 Seating Rubber EPDM
4 Bonnet Ductile Iron GGG50 ASTM A536
5 Bolt Stainless Steel SS304 ASTM A370

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult PCIPro Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.

WARRANTY INFORMATION

All valve series and other products manufactured or distributed by PCIPro are warranted by PCIPro to be free of defects in material and workmanship for a period of 1 year from the date of purchase or as the manufacturer warrants. PCIPro obligation under this warranty is limited to repair or replacement of the defec1ive product or refund of the purchase price paid solely at the discretion of PCIPro and provided such defective product is returned to PCIPro freight prepaid and upon examination by PCIPro such product is found defective. This warranty shall be void in the event that the product has been subject to misuse, misapplication, improper maintenance, modification or tampering. This warranty is expressed in lieu of all other warranties, expressed or implied from PCIPro representatives or employees. PCIPro reserves the right to change Valve and Brochure specifications without notice.
