SKU: ENGGRA

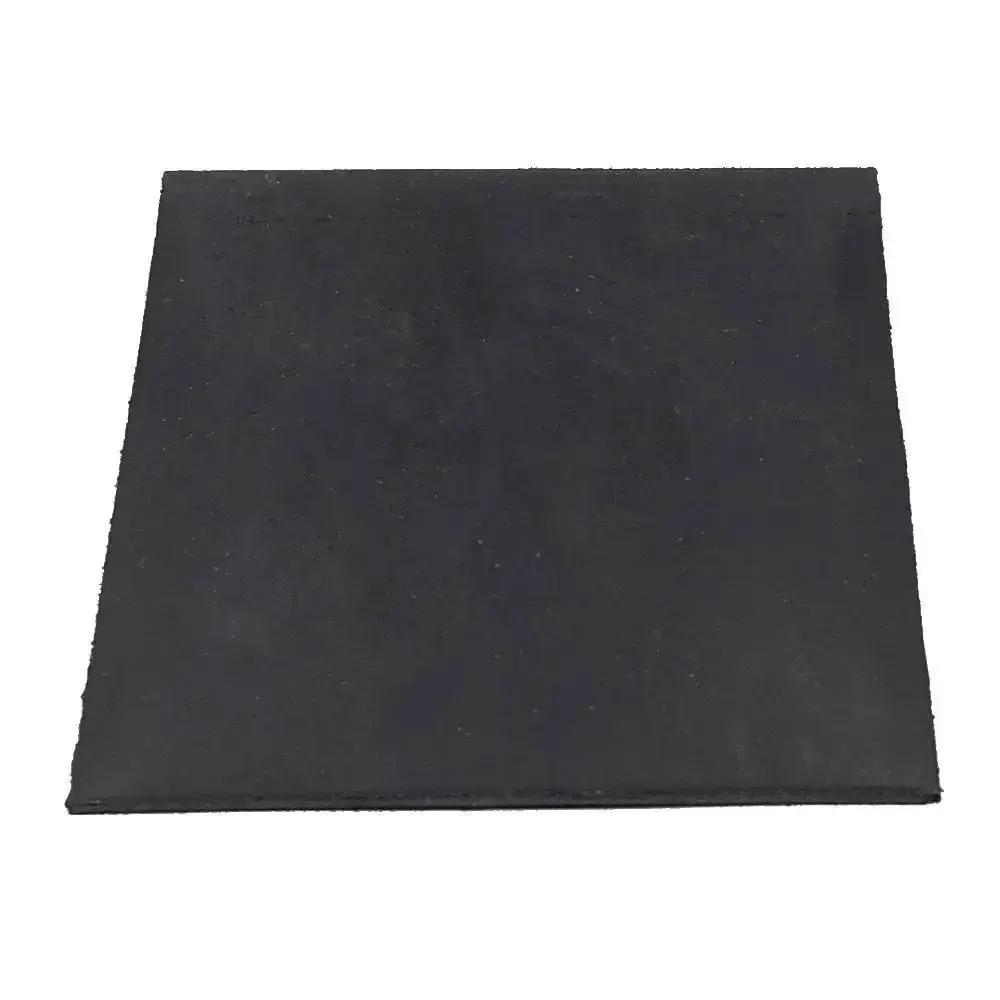

Engineered Compressed Graphite

From $330.00

Inc GST
In Stock
Make an Enquiry

Hawleysflex non asbestos joint sheeting and gasket material is made from a mix of Kevlar, Graphite, NBR and synthetic fibers formed under high temperature and pressure. It has great strength, pressure and temperature ratings. It is easy to cut with sizzors as it has no tang so ideal for making hand made gaskets (it wont chip and flake like normal graphite sheeting). It comes standard in 1500mm x 1500mm sheets that can be rolled for easy storage and shipping. This is the perfect all round gasket material as it can handle such a wide range of temperatures, pressure and media. If there is one gasket material to take in your tool box this is it as it is very easy to cut, wont flake like other graphite materials and can handle just about anything. It is the great allrounder.

Density 160+/-0.1
Temperature 200°C
Max Pressure 80 Bar
Ph Range 2~13
Compressibility ASTM F36 7~17%
Recovery ASTM F36 ≥45%
Horizontal Tensile Strength ASTM F152 7 N/mm²
Oil Resistance @ 150°C Thickness increase ≥5%
Weight increase ≥10%
Variation of Tensile Strength ASTM F152 -20% N/mm²
Leakage Rate ASTM F-37 0.001 cm³/s
Igition Loss JB/T 6628 ≥8%
Stress Relaxation DIN52913 ≥10 N/mm²

Sheet Size 1500mm x 1500mm
Thickness 0.5mm ~ 3.0mm
Temperature Limit 400°C
Max Pressure 100 Bar
Application  Industrial Services, Steam, High Temperature, Petrochemical, General Purpose

.
