SKU: YPCF

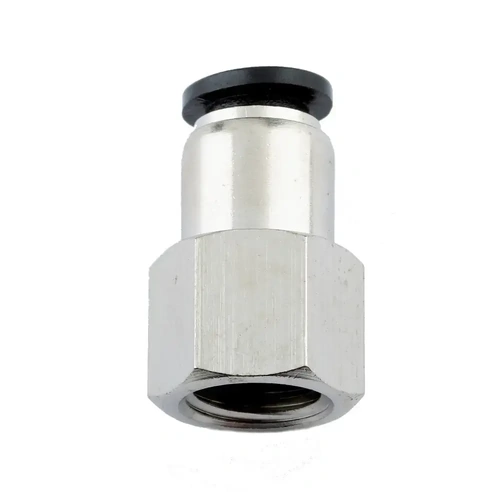

Female Straight Connector Push Fit

From $2.64

Inc GST
In Stock
Make an Enquiry

Metric female straight connector push fit fitting. One end has a female thread and the other end has a metric push fit connector. Simply push the tube in to seal and pull the collet down while pulling the tube out to release.

Material Nickel Plated Brass / UV Black Plastic, Nitrile O-ring
Pressure Range 0 to 8 BAR
Max Temperature 60°C
Features Pre-taped Teflon Gum, Allen key drive through centre

Female Straight Connector Threaded Push fit fitting

Model O.D Tube (øD) (mm) Thread (Rc) BSPP B A H
YPCF04-M5 4 M5 21 4 10
YPCF04-01 4 1/8” 23.5 7 14
YPCF04-02 4 1/4” 26.5 9.5 17
YPCF06-M5 6 M5 21 4 12
YPCF06-01 6 1/8” 24 7 12
YPCF06-02 6 1/4” 27 9.5 17
YPCF06-03 6 3/8” 28 10.5 21
YPCF06-04 6 1/2" 30 13 24
YPCF08-01 8 1/8” 27 7 14
YPCF08-02 8 1/4” 30 9.5 17
YPCF08-03 8 3/8” 31 10.5 21
YPCF08-04 8 1/2" 33 13 24
YPCF10-01 10 1/8” 28.5 7 17
YPCF10-02 10 1/4” 31.5 9.5 17
YPCF10-03 10 3/8” 32.5 10.5 21
YPCF10-04 10 1/2" 34.5 13 24
YPCF12-02 12 1/4” 32.5 9.5 21
YPCF12-03 12 3/8” 32.5 10.5 21
YPCF12-04 12 1/2" 32.5 13 24

All dimensions in mm unless shown otherwise.

Tube Size 4mm to 12mm
Thread Size M5 to 1/2"
Function Female Straight Connector Push Fit

.
.
