Female Swivel Elbow Push Fit

From $3.30

Inc GST
In Stock
Make an Enquiry

Metric female swivel elbow connector push fit fitting. One end has a female thread and the other end has a metric push fit connector. Simply push the tube in to seal and pull the collet down while pulling the tube out to release. The elbow can be swivelled in any direction even once the thread is engaged to allow the desired angle to be received.

Material Nickel Plated Brass / UV Black Plastic, Nitrile O-ring
Pressure Range 0 to 8 BAR
Max Temperature 60°C
Features Pre-taped Teflon Gum, Allen key drive through centre

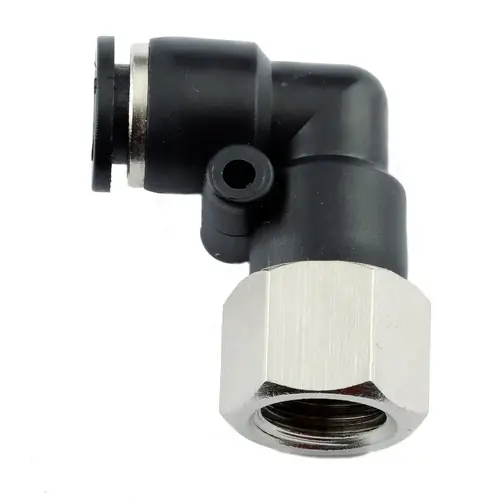

Female Swivel Elbow Push Fit Fitting

Model O.D Tube (øD) Thread (Rc) BSPP E B øP A H F ød
YPLF04-M5 4 M5 16.8 18.3 10.5 4 10 - -
YPLF04-01 4 1/8” 16.8 22.8 10.5 7 14 - -
YPLF04-02 4 1/4” 16.8 25.8 10.5 9.5 17 - -
YPLF06-M5 6 M5 19 21.8 13 4 12 8 3.2
YPLF06-01 6 1/8” 19 24.8 13 7 12 8 3.2
YPLF06-02 6 1/4” 19 27.8 13 9.5 17 8 3.2
YPLF06-03 6 3/8” 19 28.8 13 10.5 21 8 3.2
YPLF06-04 6 1/2" 19 30.8 13 13 24 8 3.2
YPLF08-01 8 1/8” 23 27 14.4 7 14 9 3.2
YPLF08-02 8 1/4” 23 31 14.4 9.5 17 9 3.2
YPLF08-03 8 3/8” 23 32 14.4 10.5 21 9 3.2
YPLF08-04 8 1/2" 23 34 14.4 13 24 9 3.2
YPLF10-01 10 1/8” 27.5 31 18.4 7 17 12 4.2
YPLF10-02 10 1/4” 27.5 35 18.4 9.5 17 12 4.2
YPLF10-03 10 3/8” 27.5 36 18.4 10.5 21 12 4.2
YPLF10-04 10 1/2" 27.5 38 18.4 13 24 12 4.2
YPLF12-02 12 1/4” 30 36.5 20 9.5 21 13.2 4.2
YPLF12-03 12 3/8” 30 37.5 20 10.5 21 13.2 4.2
YPLF12-04 12 1/2" 30 39.5 20 13 24 13.2 4.2

All dimensions in mm unless shown otherwise.

Tube Size 4mm to 12mm
Thread Size M5 to 1/2"
Function Female Swivel Elbow Push Fit

Others Also Bought

YPLF

Female Swivel Elbow Push Fit

Features:

Tube Size 4mm to 12mm
Thread Size M5 to 1/2"
Function Female Swivel Elbow Push Fit

Description:

Metric female swivel elbow connector push fit fitting. One end has a female thread and the other end has a metric push fit connector. Simply push the tube in to seal and pull the collet down while pulling the tube out to release. The elbow can be swivelled in any direction even once the thread is engaged to allow the desired angle to be received.

Material Nickel Plated Brass / UV Black Plastic, Nitrile O-ring
Pressure Range 0 to 8 BAR
Max Temperature 60°C
Features Pre-taped Teflon Gum, Allen key drive through centre
.

Female Swivel Elbow Push Fit

YPLF

Dimensions:

Female Swivel Elbow Push Fit Fitting

Model O.D Tube (øD) Thread (Rc) BSPP E B øP A H F ød
YPLF04-M5 4 M5 16.8 18.3 10.5 4 10 - -
YPLF04-01 4 1/8” 16.8 22.8 10.5 7 14 - -
YPLF04-02 4 1/4” 16.8 25.8 10.5 9.5 17 - -
YPLF06-M5 6 M5 19 21.8 13 4 12 8 3.2
YPLF06-01 6 1/8” 19 24.8 13 7 12 8 3.2
YPLF06-02 6 1/4” 19 27.8 13 9.5 17 8 3.2
YPLF06-03 6 3/8” 19 28.8 13 10.5 21 8 3.2
YPLF06-04 6 1/2" 19 30.8 13 13 24 8 3.2
YPLF08-01 8 1/8” 23 27 14.4 7 14 9 3.2
YPLF08-02 8 1/4” 23 31 14.4 9.5 17 9 3.2
YPLF08-03 8 3/8” 23 32 14.4 10.5 21 9 3.2
YPLF08-04 8 1/2" 23 34 14.4 13 24 9 3.2
YPLF10-01 10 1/8” 27.5 31 18.4 7 17 12 4.2
YPLF10-02 10 1/4” 27.5 35 18.4 9.5 17 12 4.2
YPLF10-03 10 3/8” 27.5 36 18.4 10.5 21 12 4.2
YPLF10-04 10 1/2" 27.5 38 18.4 13 24 12 4.2
YPLF12-02 12 1/4” 30 36.5 20 9.5 21 13.2 4.2
YPLF12-03 12 3/8” 30 37.5 20 10.5 21 13.2 4.2
YPLF12-04 12 1/2" 30 39.5 20 13 24 13.2 4.2

All dimensions in mm unless shown otherwise.
