SKU: BLPFE

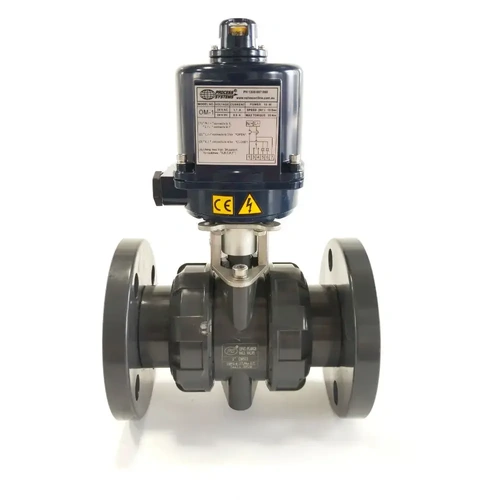

Flanged UV Stabalised PVC Electric Ball Valve

From $638.00

Inc GST
In Stock
Make an Enquiry
  • Two way UV Stabalised ANSI 150 Flanged Electric Ball Valve
  • FKM or EPDM seals with PTFE seats
  • IP67 Electric Actuator
  • Unique double stem seal design
  • Visual Indicator, Extra Limit Switches & Manual Override
Model Size DN(mm) Actuator Media Pressure Media Temperature
BLP4F-E*-E 1/2 15 0M-1 Vacuum to 10 Bar Ambient
BLP5F-E*-E 3/4 20 0M-1 Vacuum to 10 Bar Ambient
BLP6F-E*-E 1 25 0M-1 Vacuum to 10 Bar Ambient
BLP7F-E*-E 1 ¼ 32 0M-1 Vacuum to 10 Bar Ambient
BLP8F-E*-E 1 ½ 40 0M-1 Vacuum to 10 Bar Ambient
BLP9F-E*-E 2 50 0M-1 Vacuum to 10 Bar Ambient
BLP10F-E*-E 2 ½ 65 0M-A Vacuum to 10 Bar Ambient
BLP11F-E*-E 3 80 0M-A Vacuum to 10 Bar Ambient
BLP12F-E*-E 4 100 0M-A Vacuum to 10 Bar Ambient

*Voltage Code 1 = 240v AC, 2 = 110v AC, 5 = 24v AC, 7 = 12v DC, 8 = 24v DC. For FKM change the 'E' to 'V'.

Model Size Actuator ⌀d ⌀PCD ⌀D L L1 H2 n ⌀E P A B
BLP4F-E*-E 1/2 0M-1 15 60.5 95 134 52 27.5 4 15 61.5 108 155
BLP5F-E*-E 3/4 0M-1 20 70 105 144 54 32 4 15 72.5 108 155
BLP6F-E*-E 1 0M-1 25 79.5 125 160 62 37.25 4 19 77.5 108 155
BLP7F-E*-E 1-1/4 0M-1 32 89 140 178 70 42.75 4 19 84.5 108 155
BLP8F-E*-E 1-1/2 0M-1 40 98.5 150 195 79.5 50 4 19 92 108 155
BLP9F-E*-E 2 0M-1 50 120.7 165 215 85 60 4 19 107 108 155
BLP10F-E*-E 2-1/2 0M-A 63 139.7 182 320 133 76.5 4 19 122 130 200
BLP11F-E*-E 3 0M-A 75 152 200 350 146 86 8 19 132 130 200
BLP12F-E*-E 4 0M-A 90 190.5 228 395 160 107 8 19 180 130 200

All dimensions are in mm unless otherwise specified

Size 25mm to 100mm ANSI 150 Flanged
Body UV stabalised PVC
Seat PTFE
Pressure 10 BAR
Temperature Ambient
Actuation Electric

Others Also Bought

BLPFE

Flanged UV Stabalised PVC Electric Ball Valve

Features:

Size 25mm to 100mm ANSI 150 Flanged
Body UV stabalised PVC
Seat PTFE
Pressure 10 BAR
Temperature Ambient
Actuation Electric

Description:

  • Two way UV Stabalised ANSI 150 Flanged Electric Ball Valve
  • FKM or EPDM seals with PTFE seats
  • IP67 Electric Actuator
  • Unique double stem seal design
  • Visual Indicator, Extra Limit Switches & Manual Override
Model Size DN(mm) Actuator Media Pressure Media Temperature
BLP4F-E*-E 1/2 15 0M-1 Vacuum to 10 Bar Ambient
BLP5F-E*-E 3/4 20 0M-1 Vacuum to 10 Bar Ambient
BLP6F-E*-E 1 25 0M-1 Vacuum to 10 Bar Ambient
BLP7F-E*-E 1 ¼ 32 0M-1 Vacuum to 10 Bar Ambient
BLP8F-E*-E 1 ½ 40 0M-1 Vacuum to 10 Bar Ambient
BLP9F-E*-E 2 50 0M-1 Vacuum to 10 Bar Ambient
BLP10F-E*-E 2 ½ 65 0M-A Vacuum to 10 Bar Ambient
BLP11F-E*-E 3 80 0M-A Vacuum to 10 Bar Ambient
BLP12F-E*-E 4 100 0M-A Vacuum to 10 Bar Ambient

*Voltage Code 1 = 240v AC, 2 = 110v AC, 5 = 24v AC, 7 = 12v DC, 8 = 24v DC. For FKM change the 'E' to 'V'.

.

Flanged UV Stabalised PVC Electric Ball Valve

BLPFE

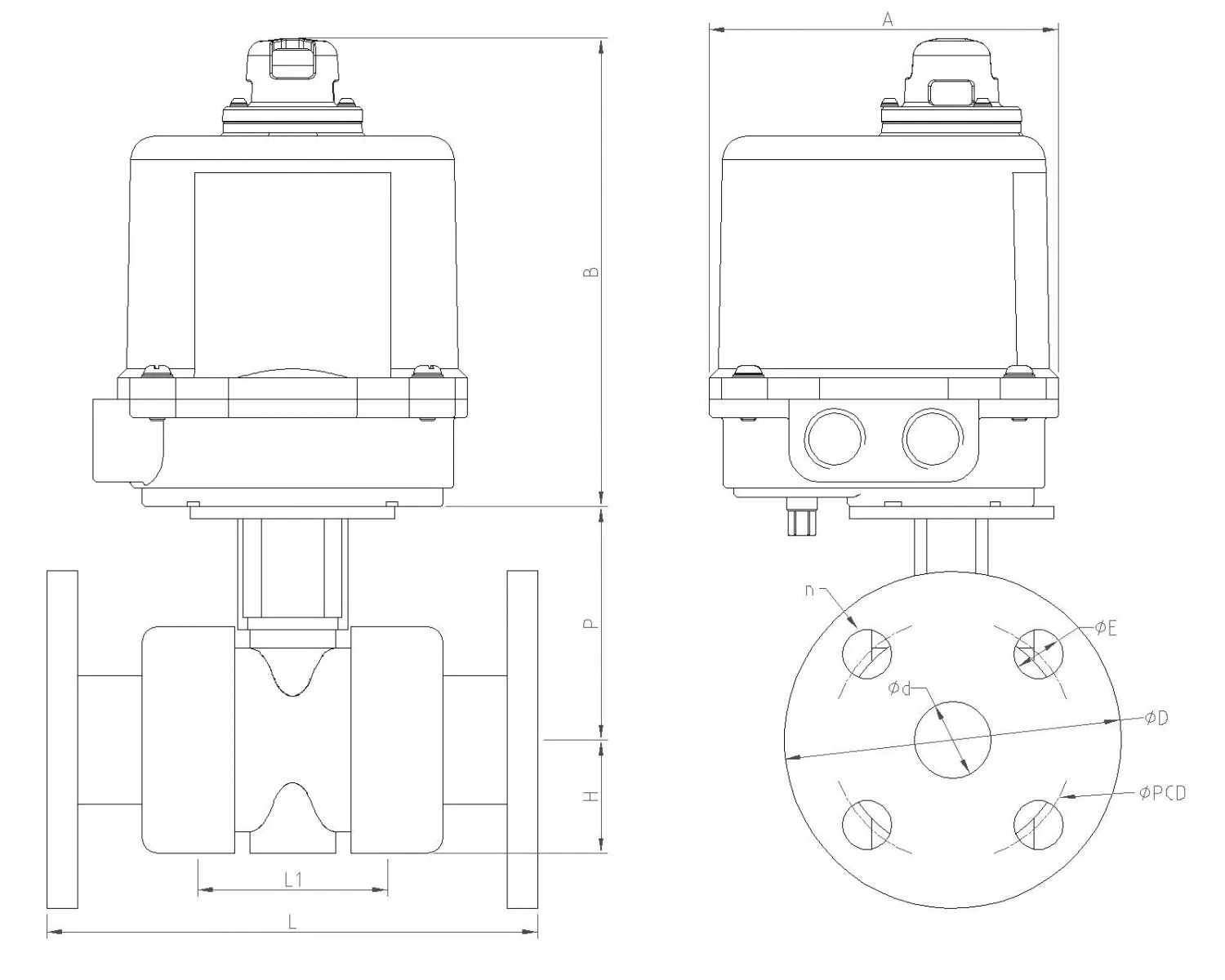

Dimensions:

Model Size Actuator ⌀d ⌀PCD ⌀D L L1 H2 n ⌀E P A B
BLP4F-E*-E 1/2 0M-1 15 60.5 95 134 52 27.5 4 15 61.5 108 155
BLP5F-E*-E 3/4 0M-1 20 70 105 144 54 32 4 15 72.5 108 155
BLP6F-E*-E 1 0M-1 25 79.5 125 160 62 37.25 4 19 77.5 108 155
BLP7F-E*-E 1-1/4 0M-1 32 89 140 178 70 42.75 4 19 84.5 108 155
BLP8F-E*-E 1-1/2 0M-1 40 98.5 150 195 79.5 50 4 19 92 108 155
BLP9F-E*-E 2 0M-1 50 120.7 165 215 85 60 4 19 107 108 155
BLP10F-E*-E 2-1/2 0M-A 63 139.7 182 320 133 76.5 4 19 122 130 200
BLP11F-E*-E 3 0M-A 75 152 200 350 146 86 8 19 132 130 200
BLP12F-E*-E 4 0M-A 90 190.5 228 395 160 107 8 19 180 130 200

All dimensions are in mm unless otherwise specified
