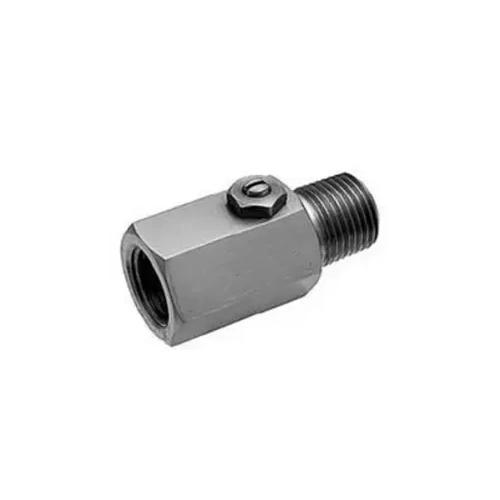

Gauge Dampener

From $38.50

In Stock
Make an Enquiry

Designed to protect gauges from pressure spikes caused from fluid hammer by decreasing the orifice size in the line (also known as a snubber). This restricts the flow to the gauge, meaning that any sudden pressure spikes will be restricted by the orifice and dissipated once they reach the gauge. The orifice size exposed to the gauge can be adjusted by rotating the flat head scew in or out on the dampener (works on the same principal as a needle valve).

Model Size Size (mm) Media Pressure Media Temperature
GAUGS-02 1/4" BSP 8 -1 to 400 BAR -20°C to 180°C
GAUGS-03 3/8" BSP 10 -1 to 400 BAR -20°C to 180°C
GAUGS-04N 1/2" NPT 15 -1 to 400 BAR -20°C to 180°C

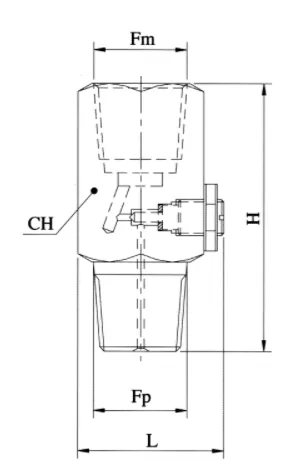

Model Size (Fp & Fm) L H CH
GAUGS-02 1/4" BSP 32 60 28
GAUGS-03 3/8" BSP 32 60 28
GAUGS-04N 1/2" NPT 32 60 28


Size 1/4" to 1/2"
Body 316 Stainless Steel
Function Guage Pressure Dampener/Snubber
Connection Male to Female
Factory Accredited CE, ISO 9001, TUV
