Gauge Glass For Water Level Gauges

From $22.00

In Stock
Make an Enquiry

This borosilicate boiler gauge glass is available in 3.2mm and 5.5mm wall thicknesses.

  • Temperatures up to 210°C
  • Pressures up to 17 Bar
Model Outside Diameter Wall Thickness Length
GLA3.3-* 19mm 3.2mm Up to 1500mm
GLA5.5-* 19mm 5.5mm Up to 1500mm

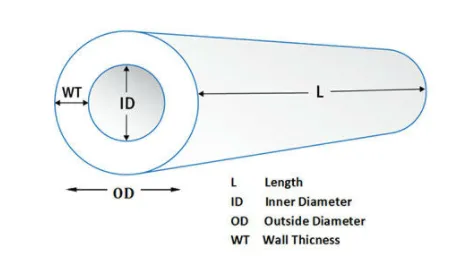

Gauge Glass Dimensions

Model OD WT ID Length
GLA3.3-* 19mm 3.2mm 12.6mm Up to 1500mm
GLA5.5-* 19mm 5.5mm 8mm Up to 1500mm

Tolerances of +/-0.1mm

Size 19mm Outside Diameter
Wall Thickness 3.2mm & 5.5mm
Length Up to 1500mm
