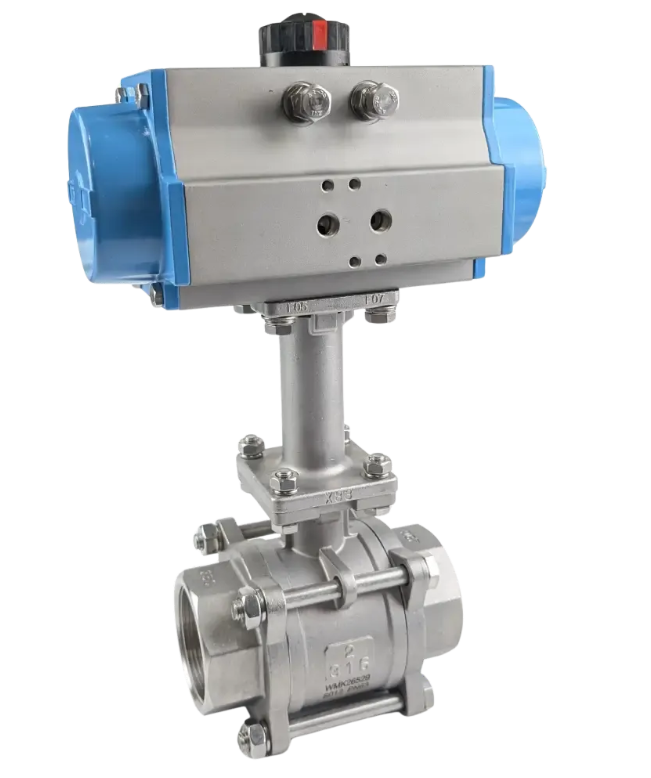

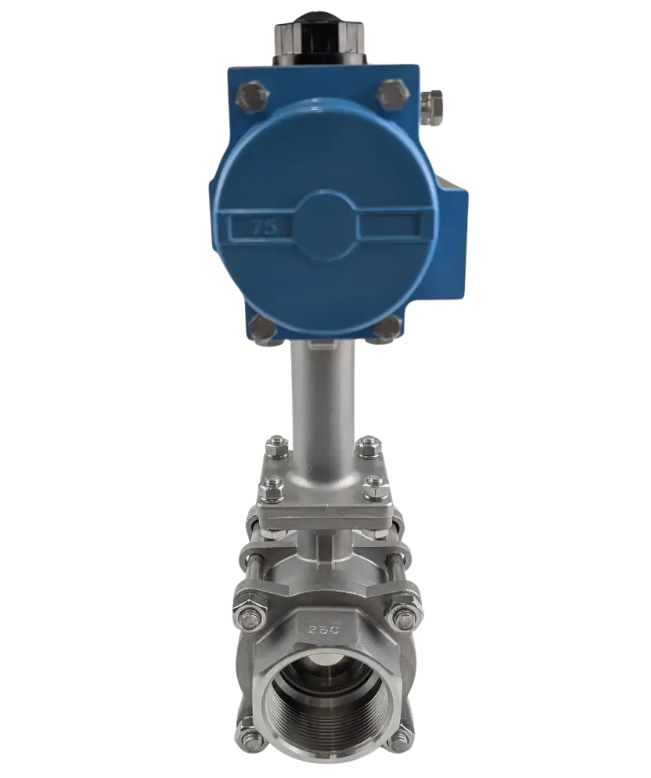

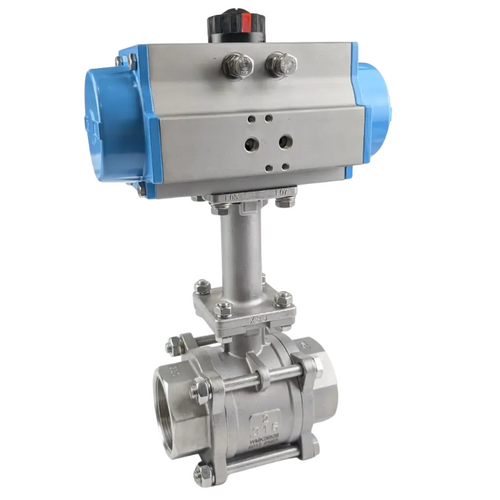

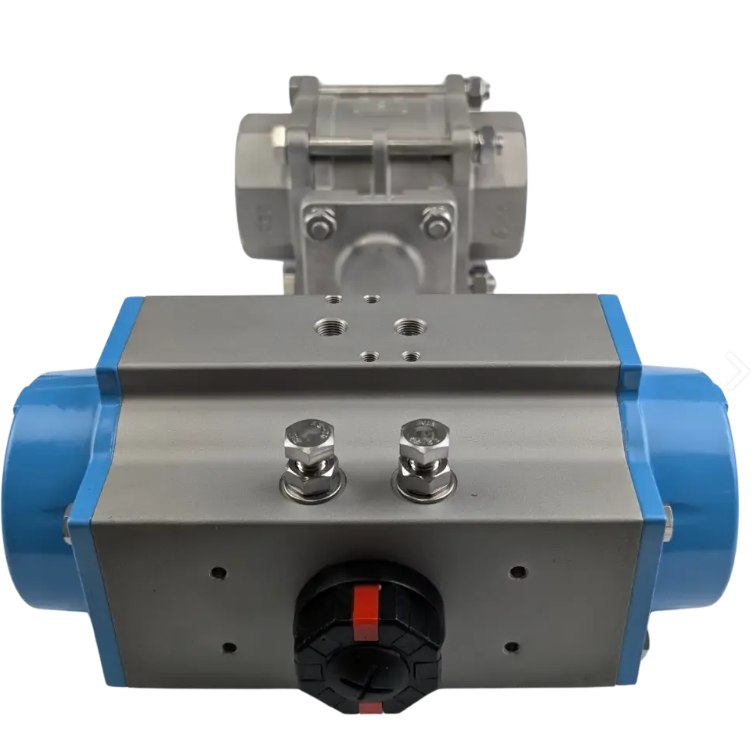

High temperature 3 piece full bore 316 Stainless Steel ball valve with BSP threaded connections and a spring return pneumatic actuator on a stand off bracket. Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration. Reinforced 50/50 stainless steel and PTFE seats for higher temperatures. Anodised aluminium spring return pneumatic actuator which allows a fail safe position if air is lost which is mounted on a pad extension. Typical applications include steam and high temperature media where normal reinforced PTFE seats are not suitable. Length to DIN3202-M3 and Threads to ISO7/1.
| Model | Size (BSP or NPT) | Size (mm) | Actuator | Media Pressure | Media Temperature | Actuator Pressrue | Actuator Port Size | Pad Extension |
|---|---|---|---|---|---|---|---|---|
| BLSHT54B-SR-ST | 1/2 | 15 | SR50 | Vacuum (29" Hg) to 63 BAR | -20°C to 220°C | 6 to 8 BAR | 1/8" | SXT-F04-9 |
| BLSHT55B-SR-ST | 3/4 | 20 | SR63 | Vacuum (29" Hg) to 63 BAR | -20°C to 220°C | 6 to 8 BAR | 1/8" | SXT-F05-11 |
| BLSHT56B-SR-ST | 1 | 25 | SR75 | Vacuum (29" Hg) to 63 BAR | -20°C to 220°C | 6 to 8 BAR | 1/8" | SXT-F05-11 |
| BLSHT57B-SR-ST | 1 ¼ | 32 | SR75 | Vacuum (29" Hg) to 63 BAR | -20°C to 220°C | 6 to 8 BAR | 1/8" | SXT-F07-14 |
| BLSHT58B-SR-ST | 1 ½ | 40 | SR75 | Vacuum (29" Hg) to 63 BAR | -20°C to 220°C | 6 to 8 BAR | 1/8" | SXT-F07-14 |
| BLSHT59B-SR-ST | 2 | 50 | SR88 | Vacuum (29" Hg) to 63 BAR | -20°C to 220°C | 6 to 8 BAR | 1/8" | SXT-F07-14 |
| BLSHT510B-SR-ST | 2 ½ | 63 | SR115 | Vacuum (29" Hg) to 63 BAR | -20°C to 220°C | 6 to 8 BAR | 1/4" | SXT-F10-17 |
| BLSHT511B-SR-ST | 3 | 80 | SR125 | Vacuum (29" Hg) to 63 BAR | -20°C to 220°C | 6 to 8 BAR | 1/4" | SXT-F10-17 |
| BLSHT512B-SR-ST | 4 | 100 | SR145 | Vacuum (29" Hg) to 63 BAR | -20°C to 220°C | 6 to 8 BAR | 1/4" | SXT-F10-17 |
For Sprung Open the ‘5’ in the product code changes to a ‘6’.
*Refer to Pressure Temperature Rating chart below
| Model | Size | Actuator | d | L | h | A | B | P |
|---|---|---|---|---|---|---|---|---|
| BLSHT54B-SR-ST | 1/2" | SR50 | 15 | 75 | 142 | 138 | 90 | 1/8” |
| BLSHT55B-SR-ST | 3/4" | SR63 | 20 | 80 | 150 | 162 | 100 | 1/8” |
| BLSHT56B-SR-ST | 1" | SR75 | 25 | 90 | 158 | 208 | 117 | 1/8” |
| BLSHT57B-SR-ST | 1-1/4" | SR75 | 32 | 110 | 164 | 208 | 117 | 1/8” |
| BLSHT58B-SR-ST | 1-1/2" | SR75 | 40 | 120 | 169.5 | 208 | 117 | 1/8” |
| BLSHT59B-SR-ST | 2" | SR88 | 50 | 140 | 178 | 245 | 136 | 1/8” |
| BLSHT510B-SR-ST | 2-1/2" | SR115 | 65 | 185 | 200 | 310 | 172 | 1/4” |
| BLSHT511B-SR-ST | 3" | SR125 | 80 | 205 | 212.5 | 340 | 184 | 1/4” |
| BLSHT512B-SR-ST | 4" | SR145 | 100 | 240 | 225.5 | 401 | 209 | 1/4” |
All dimensions in mm unless shown otherwise.
| Item | Description | Material |
|---|---|---|
| 1 | Body | CF8M |
| 2 | Ball | SS316 |
| 3 | Ball Seat | PTFE + 50%316SS |
| 4 | Thrust Washer | PTFE + 50%316SS |
| 5 | Body Gasket | PTFE + 50%316SS |
| 6 | O-Ring | FFKM |
| 7 | Stem Packing | PTFE + 50%316SS |
| Item | Description | Material |
|---|---|---|
| 8 | Extension Pad - Body | CF8 |
| 9 | Extension Pad - Stem | SS304 |
| 10 | Extension Pad - Thrust Washer | PTFE |
| 11 | Extension Pad - Stem Packing | PTFE |
| 12 | Actuator Body | Aluminium |
| 13 | Actuator Seals | NBR70 |
| 14 | Actuator Position Indicator | Nylon |
