SKU: IPV

Imperial Elbow Joiner Push Fit

From $2.04

Inc GST
In Stock
Make an Enquiry

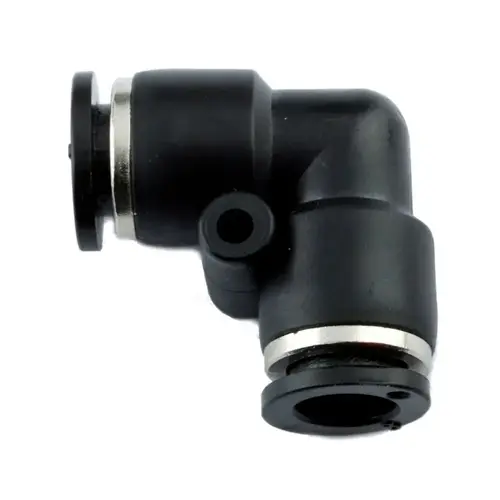

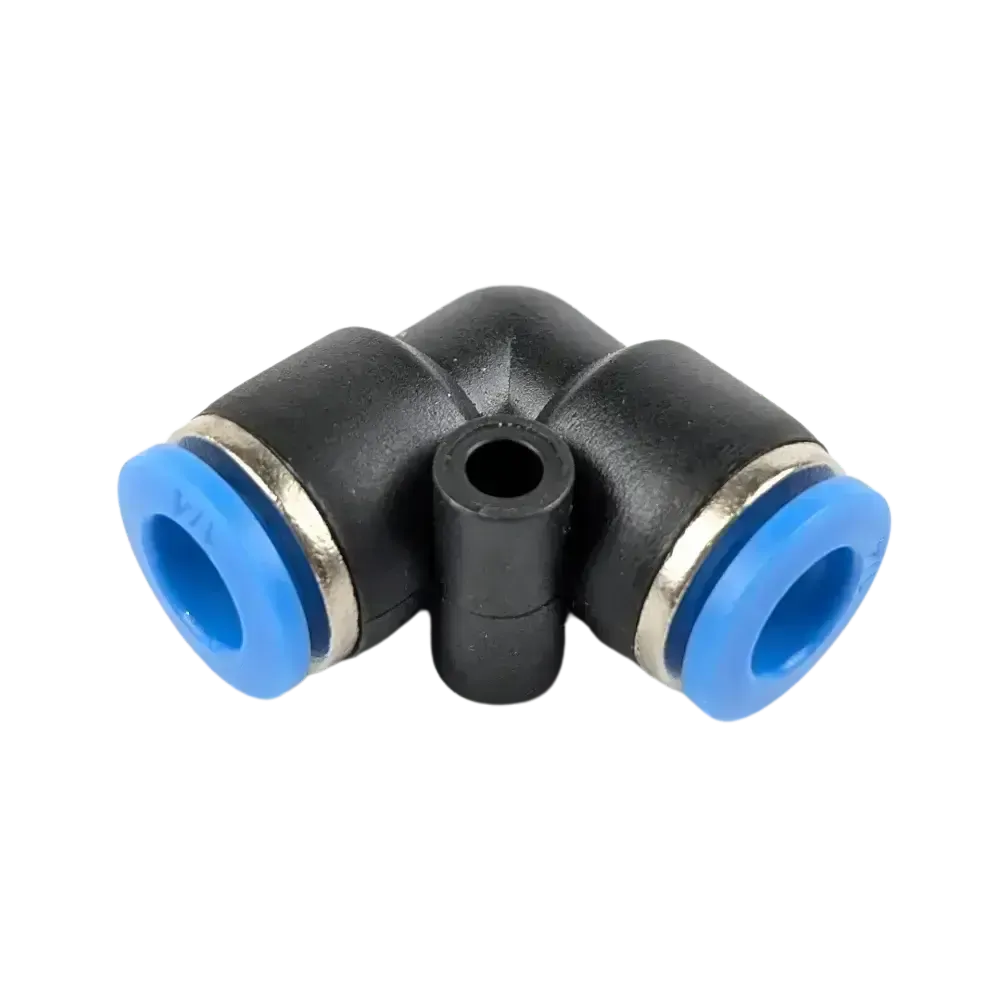

Imperial elbow joiner push fit fitting. This has an imperial tube joiner at each end of the elbow. Simply push the tube in to seal and pull the collet down while pulling the tube out to release.

Material Nickel Plated Brass / UV Black Plastic, Nitrile O-ring
Pressure Range 0 to 8 BAR
Max Temperature 60°C

Imperial Push Fit Joiner Dimensions

Model Tube A B
IPV1/4 1/4" 15.9 19.5
IPV5/16 5/16" 17.8 22.5
IPV3/8 3/8" 20.5 26.9
IPV1/2 1/2" 22.6 29.3

Dimensions in mm unless shown otherwise.

This threaded elbow is only representative of the construction.

Push Fit Fitting Construction

Tube Size 1/4" to 1/2"
Function Elbow Joiner Push Fit

.
.
