SKU: BFLE

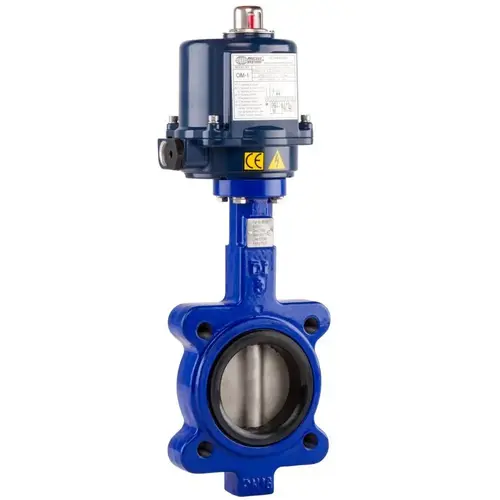

Lugged Ductile Iron Electric Butterfly Valve

From $605.00

Inc GST
In Stock
Make an Enquiry
  • Lugged Ductile Iron Electric Butterfly Valve
  • EPDM seat, stainless steel splined shaft, 316 SS disc
  • Watermark & Standards Mark approved
  • IP67 Electric Actuator
  • Extra limit switches, manual override & visual indicator
Model Size (mm) Actuator Media Pressure Media Temperature
BFL50-E*-E 50 0M-1 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL65-E*-E 65 0M-1 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL80-E*-E 80 0M-1 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL100-E*-E 100 0M-A Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL125-E*-E 125 0M-A Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL150-E*-E 150 0M-2 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL200-E*-E 200 0M-3 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL250-E*-E 250 0M-4 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL300-E*-E 300 0M-5 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL350-E*-E 350 0M-6 Vacuum to 10 BAR -20°C to 90°C (40°C Potable)
BFL400-E*-E 400 0M-7 Vacuum to 10 BAR -20°C to 90°C (40°C Potable)
BFL450-E*-E 450 0M-8 Vacuum to 10 BAR -20°C to 90°C (40°C Potable)
BFL500-E*-E 500 0M-9 Vacuum to 10 BAR -20°C to 90°C (40°C Potable)
BFL600-E*-E 600 0M-11 Vacuum to 10 BAR -20°C to 90°C (40°C Potable)

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

Electric Actuator Lugged Butterfly Valve

DN Actuator A D1 H1 H2 H3 L M
50 0M-1 108 114 80 161 155 43 4-M16
65 0M-1 108 127 80 175 155 46 4-M16
80 0M-1 108 146 95 181 155 46 4-M16
100 0M-A 108 178 114 200 200 52 8-M16
125 0M-A 108 210 127 213 200 56 8-M16
150 0M-2 200 235 139 223 290 56 8-M20
200 0M-3 200 292 175 260 290 60 8-M20
250 0M-4 234 356 203 292 315 68 12-M20
300 0M-5 234 406 242 337 315 78 12-M24

All dimensions in mm unless shown otherwise.



Number Item Material
1 Body Fusion Bonded Epoxy Cast Iron
2 Seat Phenolic backed cartridge style EPDM
3 Disc 316 Stainless Steel
4 Shaft 416 Stainless Steel
5 Bushings PTFE
6 Stem Orings EPDM
7 Actuator Fastners 316 Stainless Steel
8 Electric Actuator Powder Coated Aluminium
9 Visual Indicator Perspex

Size 50mm to 600mm
Body FBE coated Cast Iron
Seat EPDM
Disc 316 Stainless Steel
Pressure Up to 16 BAR (depending upon size)
Actuation Electric

BFLE

Lugged Ductile Iron Electric Butterfly Valve

Features:

Size 50mm to 600mm
Body FBE coated Cast Iron
Seat EPDM
Disc 316 Stainless Steel
Pressure Up to 16 BAR (depending upon size)
Actuation Electric

Description:

  • Lugged Ductile Iron Electric Butterfly Valve
  • EPDM seat, stainless steel splined shaft, 316 SS disc
  • Watermark & Standards Mark approved
  • IP67 Electric Actuator
  • Extra limit switches, manual override & visual indicator
Model Size (mm) Actuator Media Pressure Media Temperature
BFL50-E*-E 50 0M-1 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL65-E*-E 65 0M-1 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL80-E*-E 80 0M-1 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL100-E*-E 100 0M-A Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL125-E*-E 125 0M-A Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL150-E*-E 150 0M-2 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL200-E*-E 200 0M-3 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL250-E*-E 250 0M-4 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL300-E*-E 300 0M-5 Vacuum to 16 BAR -20°C to 90°C (40°C Potable)
BFL350-E*-E 350 0M-6 Vacuum to 10 BAR -20°C to 90°C (40°C Potable)
BFL400-E*-E 400 0M-7 Vacuum to 10 BAR -20°C to 90°C (40°C Potable)
BFL450-E*-E 450 0M-8 Vacuum to 10 BAR -20°C to 90°C (40°C Potable)
BFL500-E*-E 500 0M-9 Vacuum to 10 BAR -20°C to 90°C (40°C Potable)
BFL600-E*-E 600 0M-11 Vacuum to 10 BAR -20°C to 90°C (40°C Potable)

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

.

Lugged Ductile Iron Electric Butterfly Valve

BFLE

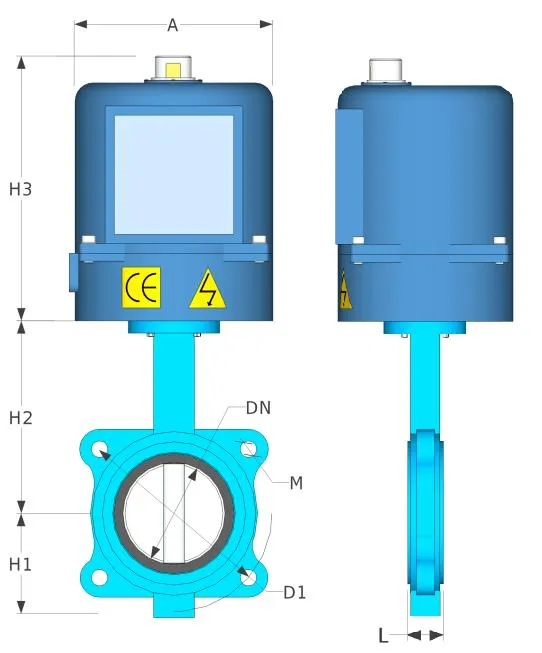

Dimensions:

Electric Actuator Lugged Butterfly Valve

DN Actuator A D1 H1 H2 H3 L M
50 0M-1 108 114 80 161 155 43 4-M16
65 0M-1 108 127 80 175 155 46 4-M16
80 0M-1 108 146 95 181 155 46 4-M16
100 0M-A 108 178 114 200 200 52 8-M16
125 0M-A 108 210 127 213 200 56 8-M16
150 0M-2 200 235 139 223 290 56 8-M20
200 0M-3 200 292 175 260 290 60 8-M20
250 0M-4 234 356 203 292 315 68 12-M20
300 0M-5 234 406 242 337 315 78 12-M24

All dimensions in mm unless shown otherwise.

.

Lugged Ductile Iron Electric Butterfly Valve

BFLE

Construction:



Number Item Material
1 Body Fusion Bonded Epoxy Cast Iron
2 Seat Phenolic backed cartridge style EPDM
3 Disc 316 Stainless Steel
4 Shaft 416 Stainless Steel
5 Bushings PTFE
6 Stem Orings EPDM
7 Actuator Fastners 316 Stainless Steel
8 Electric Actuator Powder Coated Aluminium
9 Visual Indicator Perspex
