SKU: EMD

Solenoid Mounted Digital Timer

From $198.00

Inc GST
In Stock
Make an Enquiry

Digital sandwich timer which fits between the DIN plug and coil on a solenoid valve. With a broad range of functions (see below) and programable from 0.01 seconds to 99 hours it fits a wide range of uses. Easy to use with a maximum of 1 Amp current. Featuring a Non-Volatile memory that will reset to the beginning of its set function if power is removed from the unit, but still remember your programmed settings.

Supply Voltage EMD-12A = 110~240v AC/DC
EMD-12B = 10~48v AC/DC
Interval Time (Whole Intervals) 10 to 990 milliseconds
1 to 99 seconds
1 to 99 minutes
1 to 99 hours
Discharge Time (Whole Intervals) 10 to 990 milliseconds
1 to 99 seconds
1 to 99 minutes
1 to 99 hours
Current consumption 7 milli Amps
Case Material ABS plastic FR grade
Connection DIN 43650-A, ISO 4400
Indicators Digital Display
Environmental Protection IP65
Certifications CE, cULus, RoHS



Function Number Function
A Start with ON time and then OFF time, etc.
C Start with OFF time and then ON time, etc.
B Single shot, starts with ON time and then switches OFF indefinite
D Single shot, starts with OFF time and then switches ON indefinite
E Start with OFF time then ON time and then switches OFF indefinite
F Start with ON time then OFF time and then switches ON indefinite

Is factory Set to function A.

Electronic Solenoid Valve Timer

Electronic Solenoid Valve Timer

Function Digital Sandwich Timer
Operation 0.01 to 99 hours programable
Max Current 1 Amp
Voltage 10v to 240v AC/DC
Functions 6

EMD

Solenoid Mounted Digital Timer

Features:

Function Digital Sandwich Timer
Operation 0.01 to 99 hours programable
Max Current 1 Amp
Voltage 10v to 240v AC/DC
Functions 6

Description:

Digital sandwich timer which fits between the DIN plug and coil on a solenoid valve. With a broad range of functions (see below) and programable from 0.01 seconds to 99 hours it fits a wide range of uses. Easy to use with a maximum of 1 Amp current. Featuring a Non-Volatile memory that will reset to the beginning of its set function if power is removed from the unit, but still remember your programmed settings.

Supply Voltage EMD-12A = 110~240v AC/DC
EMD-12B = 10~48v AC/DC
Interval Time (Whole Intervals) 10 to 990 milliseconds
1 to 99 seconds
1 to 99 minutes
1 to 99 hours
Discharge Time (Whole Intervals) 10 to 990 milliseconds
1 to 99 seconds
1 to 99 minutes
1 to 99 hours
Current consumption 7 milli Amps
Case Material ABS plastic FR grade
Connection DIN 43650-A, ISO 4400
Indicators Digital Display
Environmental Protection IP65
Certifications CE, cULus, RoHS



Function Number Function
A Start with ON time and then OFF time, etc.
C Start with OFF time and then ON time, etc.
B Single shot, starts with ON time and then switches OFF indefinite
D Single shot, starts with OFF time and then switches ON indefinite
E Start with OFF time then ON time and then switches OFF indefinite
F Start with ON time then OFF time and then switches ON indefinite

Is factory Set to function A.

.

Solenoid Mounted Digital Timer

EMD

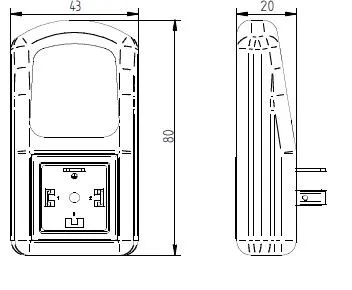

Dimensions:

Electronic Solenoid Valve Timer

.

Solenoid Mounted Digital Timer

EMD

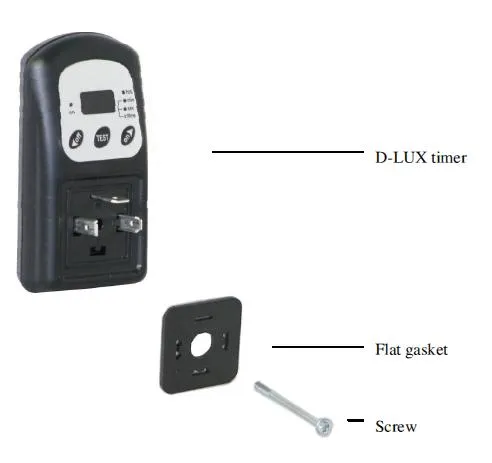

Construction:

Electronic Solenoid Valve Timer

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult PCIPro Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.

WARRANTY INFORMATION

All valve series and other products manufactured or distributed by PCIPro are warranted by PCIPro to be free of defects in material and workmanship for a period of 1 year from the date of purchase or as the manufacturer warrants. PCIPro obligation under this warranty is limited to repair or replacement of the defec1ive product or refund of the purchase price paid solely at the discretion of PCIPro and provided such defective product is returned to PCIPro freight prepaid and upon examination by PCIPro such product is found defective. This warranty shall be void in the event that the product has been subject to misuse, misapplication, improper maintenance, modification or tampering. This warranty is expressed in lieu of all other warranties, expressed or implied from PCIPro representatives or employees. PCIPro reserves the right to change Valve and Brochure specifications without notice.
