SKU: BFS

Stainless Steel Butterfly Valve

From $319.00

Inc GST
In Stock
Make an Enquiry

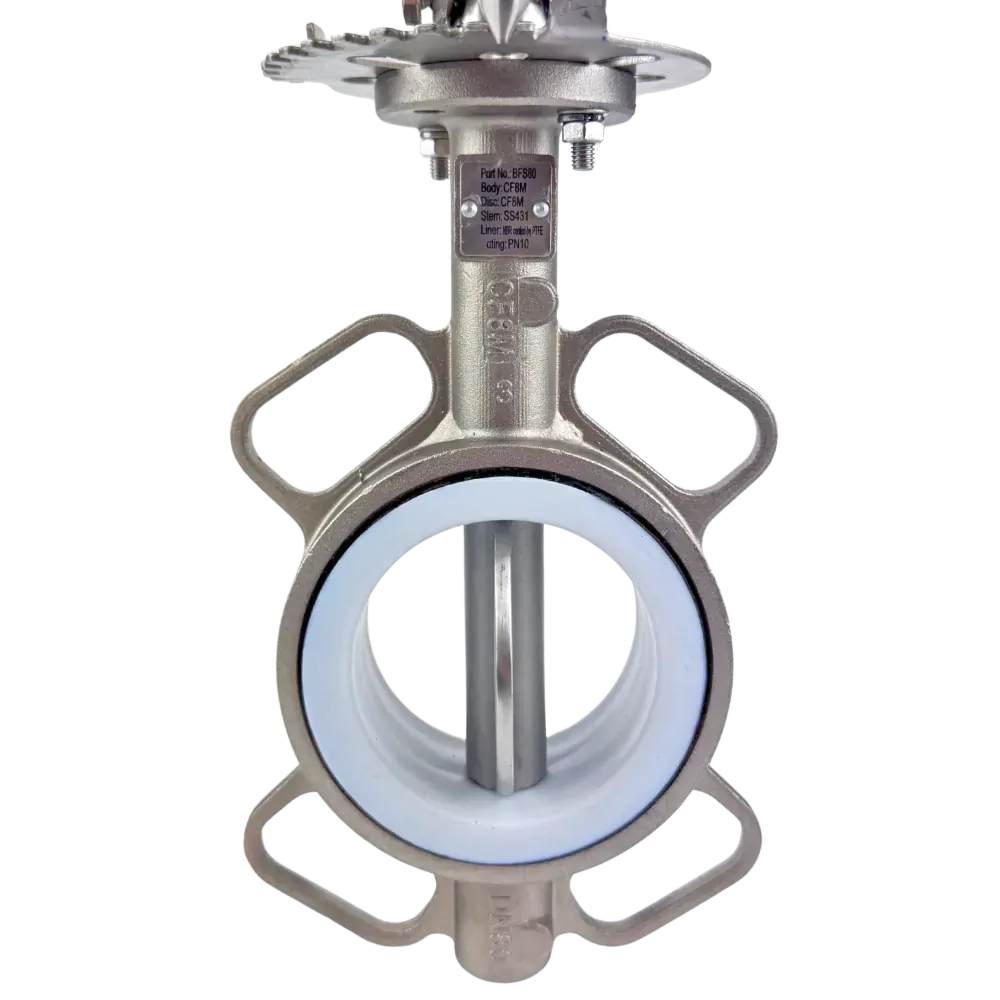

  • Wafer 316 Stainless Steel Butterfly Valve
  • PTFE coated NBR seat, 316 SS Disc, splined shaft
  • Watermark & Standards Mark approved
  • ISO pad for direct actuation mount

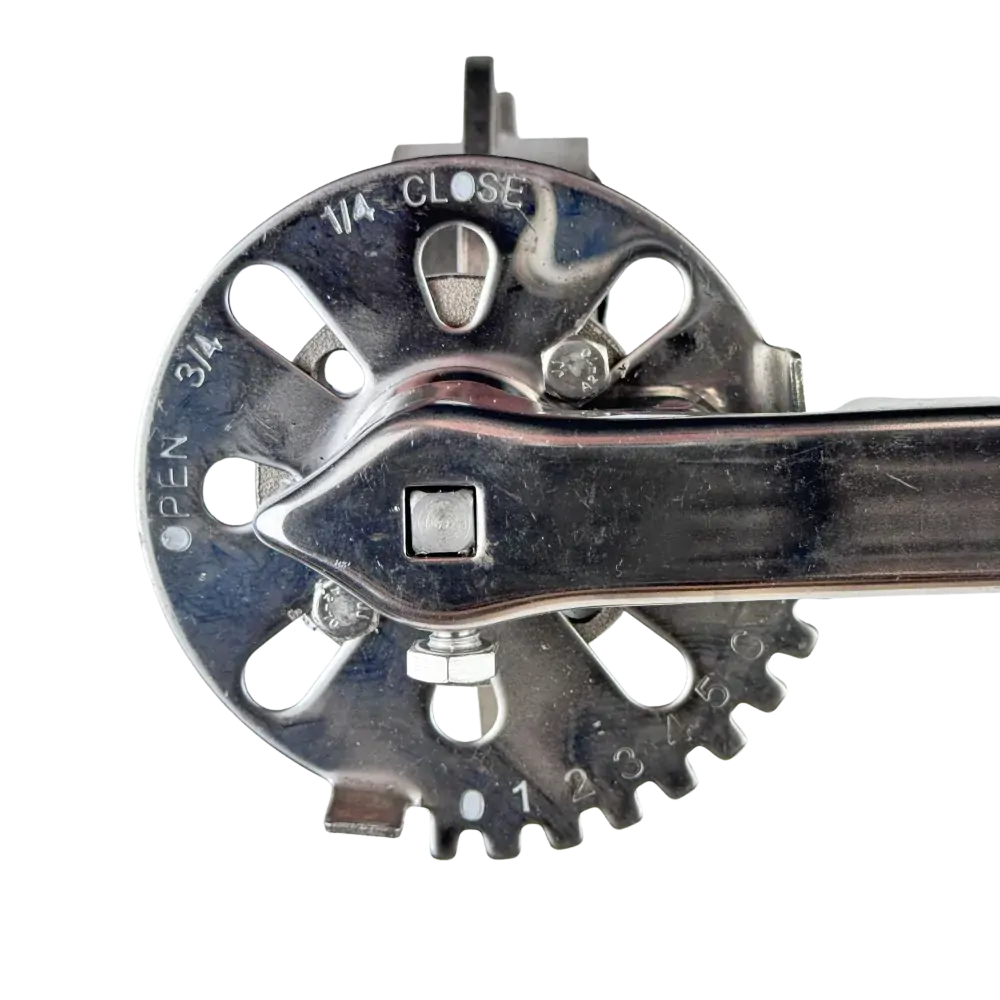

  • Handle & notch plate
Model Size (mm) Pressure Range Temperature Square drive size ISO Mtg Torque (Nm)
BFS50-L-T 50 0 to 10 Bar -10°C to 120°C 9mm F05 18.60
BFS65-L-T 65 0 to 10 Bar -10°C to 120°C 9mm F05 25.20
BFS80-L-T 80 0 to 10 Bar -10°C to 120°C 9mm F05 33.60
BFS100-L-T 100 0 to 10 Bar -10°C to 120°C 11mm F07 56.00
BFS125-L-T 125 0 to 10 Bar -10°C to 120°C 14mm F07 53.10
BFS150-L-T 150 0 to 10 Bar -10°C to 120°C 14mm F07 133.80
BFS200-L-T 200 0 to 10 Bar -10°C to 120°C 17mm F10 297.00
BFS250-L-T 250 0 to 10 Bar -10°C to 120°C 22mm F10 486.00
BFS300-L-T 300 0 to 10 Bar -10°C to 120°C 22mm F10 699.00
BFS350-L-T 350 0 to 10 Bar -10°C to 120°C 22mm F10 825.00
BFS400-L-T 400 0 to 10 Bar -10°C to 120°C 22mm F14 1,133.00
BFS450-L-T 450 0 to 10 Bar -10°C to 120°C 27mm F14 1,253.00
BFS500-L-T 500 0 to 10 Bar -10°C to 120°C 27mm F14 1,617.00
BFS600-L-T 600 0 to 10 Bar -10°C to 120°C 36mm F16 2,622.00

Sizes above 300mm available on request

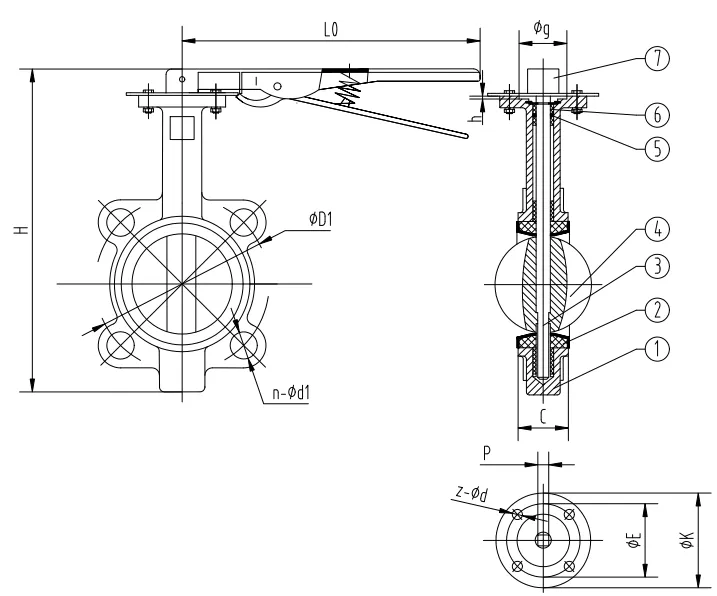

Stainless Steel Wafer Butterfly Valve Dimensions

DN H C L0 BS4504 PN10 ANSI 150  Table D  Table E P Upper Flange
D1 n-d1 D1 n-d1 D1 n-d1 D1 n-d1 K E z-d g h
50 240 42 255 125 4-18 120.5 4-19 114 4-18 114 4-18 9 77 50 4-7 35 3
65 255 44.7 255 145 4-18 139.5 4-19 127 4-18 127 4-18 9 77 50 4-7 35 3
80 280 45.2 255 160 4(8)-18 152.5 4-19 146 4-18 146 4-18 9 77 50 4-7 35 3
100 300 52.1 255 180 4(8)-18 190.5 4(8)-19 178 4-18 178 4(8)-18 11 90 70 4-9 55 3
125 340 54.4 255 210 4(8)-18 216 4(8)-22 210 4(8)-18 210 4(8)-18 14 90 70 4-9 55 3
150 375 55.8 255 240 4(8)-23 241.5 4(8)-22 235 4(8)-18 235 4(8)-22 14 90 70 4-9 55 3
200 450 60.6 370 295 4(8)-23 298.5 4(8)-22 292 4(8)-18 292 4(8)-22 17 125 102 4-12 70 3
250 530 65.6 370 350 4(12)-23 362 4(12)-25     356 4(12)-22 22 125 102 4-12 70 3
300 595 76.9 370 400 4(12)-23 432 4(12)-25 406 4(12)-22 406 4(12)-26 22 125 102 4-12 70 3

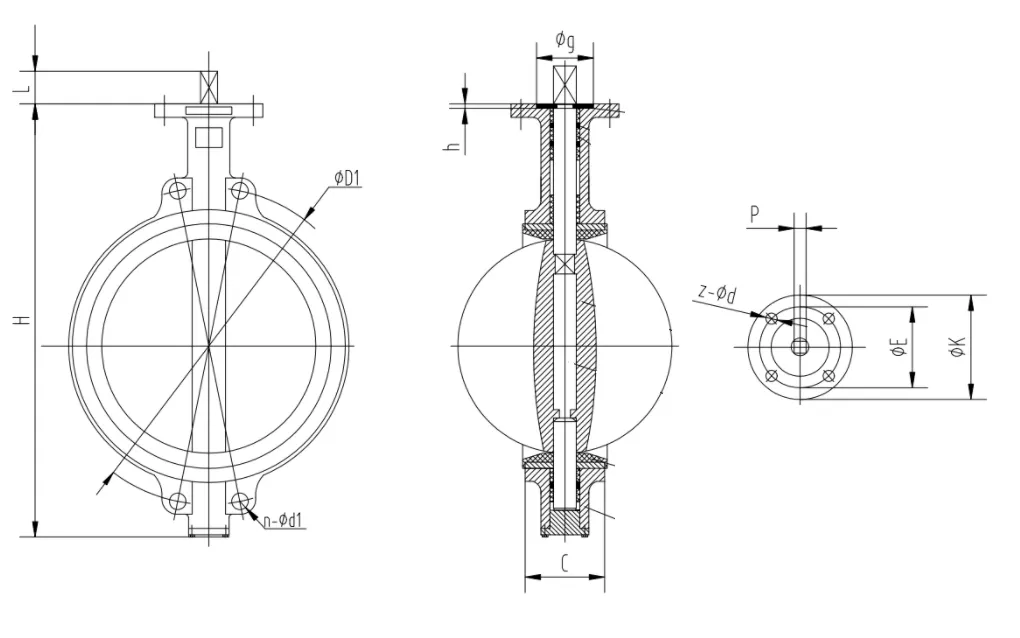

350mm to 600mm Stainless Steel Butterfly Valve

DN H C L p Upper Flange PN16 ANSI 150 Table E Table D
K z-d g h D1 n-d1 D1 n-d1 D1 n-d1 D1 n-d1
350 635 76.5 45 22 125 4-12 70 3 470 4(16)-27 476 4(12)-29 470 4(12)-26 470 4(12)-26
400 709 86.5 51.2 24 175 4-18 100 4 525 4(16)-30 539.5 4(16)-29
450 750 105.6 51.2 27 175 4-18 100 4 585 4(20)-30 578 4(16)-32 584 4(16)-26
500 841 131.8 64.2 36 175 4-18 100 4 650 4(20)-33 635 4(20)-32
600 1021 152 70.2 36 210 4-23 130 5 770 4(20)-36 749.5 4(20)-35

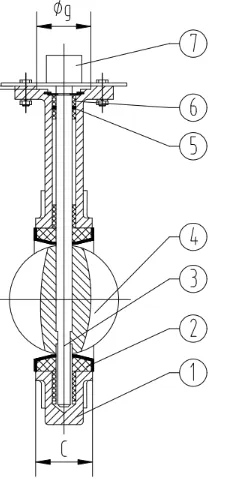

Stainless Steel Wafer Butterfly Valve Construction

Item Part Name Material Grade Standard
1 Body Stainless Steel CF8M ASTM A370
2 Seat PTFE coated NBR
3 Shaft Stainless Steel SS316 ASTM A370
4 Disc Stainless Steel CF8M ASTM A370
5 Bushing Polymers
6 O-ring NBR
7 Handle Stainless Steel SS304 ASTM A370
  Notch Plate Stainless Steel SS304 ASTM A370
  Fasteners Stainless Steel SS304 ASTM A370

Size 50mm to 600mm
Body 316 Stainless Steel
Seat PTFE coated NBR
Disc 316 Stainless Steel
Pressure 10 BAR
Actuation Lever or Gearbox

DATA SHEET

Others Also Bought

BFS

Stainless Steel Butterfly Valve

Features:

Size 50mm to 600mm
Body 316 Stainless Steel
Seat PTFE coated NBR
Disc 316 Stainless Steel
Pressure 10 BAR
Actuation Lever or Gearbox

Description:

  • Wafer 316 Stainless Steel Butterfly Valve
  • PTFE coated NBR seat, 316 SS Disc, splined shaft
  • Watermark & Standards Mark approved
  • ISO pad for direct actuation mount
  • Handle & notch plate
Model Size (mm) Pressure Range Temperature Square drive size ISO Mtg Torque (Nm)
BFS50-L-T 50 0 to 10 Bar -10°C to 120°C 9mm F05 18.60
BFS65-L-T 65 0 to 10 Bar -10°C to 120°C 9mm F05 25.20
BFS80-L-T 80 0 to 10 Bar -10°C to 120°C 9mm F05 33.60
BFS100-L-T 100 0 to 10 Bar -10°C to 120°C 11mm F07 56.00
BFS125-L-T 125 0 to 10 Bar -10°C to 120°C 14mm F07 53.10
BFS150-L-T 150 0 to 10 Bar -10°C to 120°C 14mm F07 133.80
BFS200-L-T 200 0 to 10 Bar -10°C to 120°C 17mm F10 297.00
BFS250-L-T 250 0 to 10 Bar -10°C to 120°C 22mm F10 486.00
BFS300-L-T 300 0 to 10 Bar -10°C to 120°C 22mm F10 699.00
BFS350-L-T 350 0 to 10 Bar -10°C to 120°C 22mm F10 825.00
BFS400-L-T 400 0 to 10 Bar -10°C to 120°C 22mm F14 1,133.00
BFS450-L-T 450 0 to 10 Bar -10°C to 120°C 27mm F14 1,253.00
BFS500-L-T 500 0 to 10 Bar -10°C to 120°C 27mm F14 1,617.00
BFS600-L-T 600 0 to 10 Bar -10°C to 120°C 36mm F16 2,622.00

Sizes above 300mm available on request

.

Stainless Steel Butterfly Valve

BFS

Dimensions:

Stainless Steel Wafer Butterfly Valve Dimensions

DN H C L0 BS4504 PN10 ANSI 150  Table D  Table E P Upper Flange
D1 n-d1 D1 n-d1 D1 n-d1 D1 n-d1 K E z-d g h
50 240 42 255 125 4-18 120.5 4-19 114 4-18 114 4-18 9 77 50 4-7 35 3
65 255 44.7 255 145 4-18 139.5 4-19 127 4-18 127 4-18 9 77 50 4-7 35 3
80 280 45.2 255 160 4(8)-18 152.5 4-19 146 4-18 146 4-18 9 77 50 4-7 35 3
100 300 52.1 255 180 4(8)-18 190.5 4(8)-19 178 4-18 178 4(8)-18 11 90 70 4-9 55 3
125 340 54.4 255 210 4(8)-18 216 4(8)-22 210 4(8)-18 210 4(8)-18 14 90 70 4-9 55 3
150 375 55.8 255 240 4(8)-23 241.5 4(8)-22 235 4(8)-18 235 4(8)-22 14 90 70 4-9 55 3
200 450 60.6 370 295 4(8)-23 298.5 4(8)-22 292 4(8)-18 292 4(8)-22 17 125 102 4-12 70 3
250 530 65.6 370 350 4(12)-23 362 4(12)-25     356 4(12)-22 22 125 102 4-12 70 3
300 595 76.9 370 400 4(12)-23 432 4(12)-25 406 4(12)-22 406 4(12)-26 22 125 102 4-12 70 3

350mm to 600mm Stainless Steel Butterfly Valve

DN H C L p Upper Flange PN16 ANSI 150 Table E Table D
K z-d g h D1 n-d1 D1 n-d1 D1 n-d1 D1 n-d1
350 635 76.5 45 22 125 4-12 70 3 470 4(16)-27 476 4(12)-29 470 4(12)-26 470 4(12)-26
400 709 86.5 51.2 24 175 4-18 100 4 525 4(16)-30 539.5 4(16)-29
450 750 105.6 51.2 27 175 4-18 100 4 585 4(20)-30 578 4(16)-32 584 4(16)-26
500 841 131.8 64.2 36 175 4-18 100 4 650 4(20)-33 635 4(20)-32
600 1021 152 70.2 36 210 4-23 130 5 770 4(20)-36 749.5 4(20)-35
.

Stainless Steel Butterfly Valve

BFS

Construction:

Stainless Steel Wafer Butterfly Valve Construction

Item Part Name Material Grade Standard
1 Body Stainless Steel CF8M ASTM A370
2 Seat PTFE coated NBR
3 Shaft Stainless Steel SS316 ASTM A370
4 Disc Stainless Steel CF8M ASTM A370
5 Bushing Polymers
6 O-ring NBR
7 Handle Stainless Steel SS304 ASTM A370
  Notch Plate Stainless Steel SS304 ASTM A370
  Fasteners Stainless Steel SS304 ASTM A370

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult PCIPro Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.
