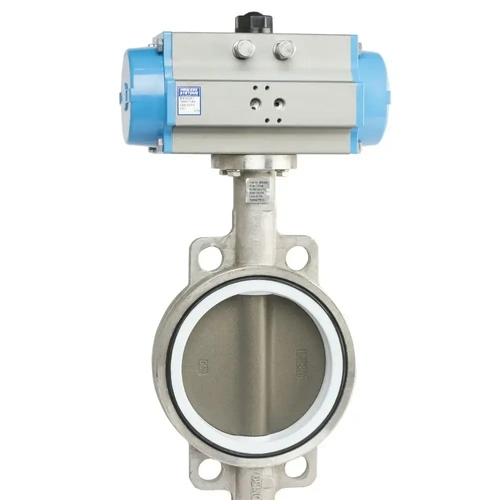

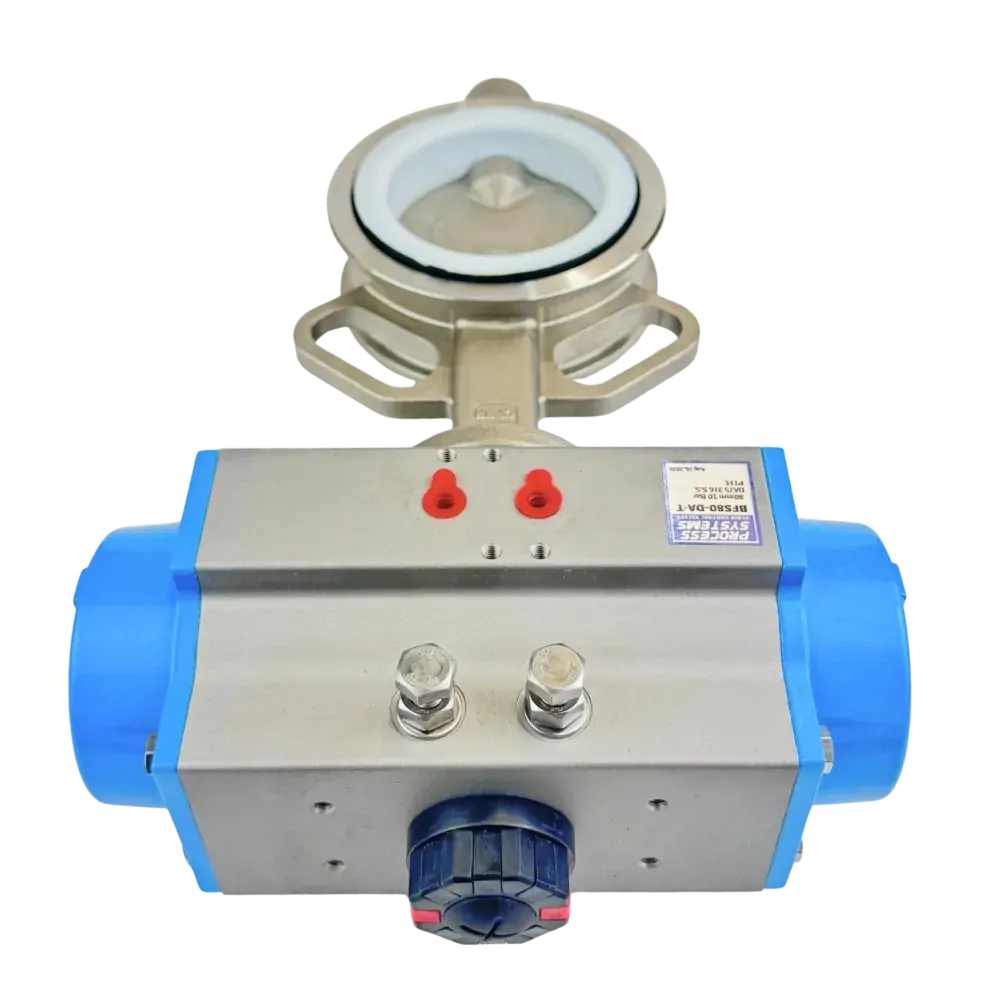

Stainless Steel Double Acting Butterfly Valve

From $451.00

Inc GST
In Stock
Make an Enquiry
  • Wafer 316 Stainless Steel Double Acting Pneumatic Butterfly Valve
  • PTFE coated NBR seat, 316 SS disc, splined shaft
  • Anodised Aluminium Pneumatic Actuator
  • Adjustable Stops, Namur Interface & Visual Indicator
Model Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BFS50-DA-T 50 DA63 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/8"
BFS65-DA-T 65 DA75 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/8"
BFS80-DA-T 80 DA75 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/8"
BFS100-DA-T 100 DA88 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/8"
BFS125-DA-T 125 DA100 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/4"
BFS150-DA-T 150 DA115 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/4"
BFS200-DA-T 200 DA125 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/4"
BFS250-DA-T 250 DA160 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/4"
BFS300-DA-T 300 DA180 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/4"

For sizes over 300mm please contact us.

DN Actuator B C D E F G BS4504 PN10 ANSI 150 AS2129 Table D AS2129 Table E
D1 n-d1 D1 n-d1 D1 n-d1 D1 n-d1
50 DA63 210 42 80 100 162 80.5 125 4-18 120.5 4-19 114 4-18 114 4-18
65 DA75 225 44.7 97 117 208 94.5 145 4-18 139.5 4-19 127 4-18 127 4-18
80 DA75 250 45.2 97 117 208 94.5 160 4(8)-18 152.5 4-19 146 4-18 146 4-18
100 DA88 270 52.1 116 136 245 109 180 4(8)-18 190.5 4(8)-19     178 4(8)-18
125 DA100 305 54.4 122 142 266 123 210 4(8)-18 216 4(8)-22 210 4(8)-18 210 4(8)-18
150 DA115 345 55.8 142 172 310 137 240 4(8)-23 241.5 4(8)-22 235 4(8)-18 235 4(8)-22
200 DA125 415 60.6 154 184 340 148 295 4(8)-23 298.5 4(8)-22 292 4(8)-18 292 4(8)-22
250 DA160 485 65.6 192 222 430 186.5 355 4(12)-23 362 4(12)-25     356 4(12)-22
300 DA180 555 76.9 222 252 482 204 410 4(12)-23 432 4(12)-25 406 4(12)-22 406 4(12)-26

All dimensions in mm unless specified otherwise

Size 50mm to 300mm
Body 316 Stainless Steel
Seat PTFE coated NBR
Disc 316 Stainless Steel
Pressure 10 BAR
Actuation Double Acting Pneumatic

Others Also Bought

BFSDA

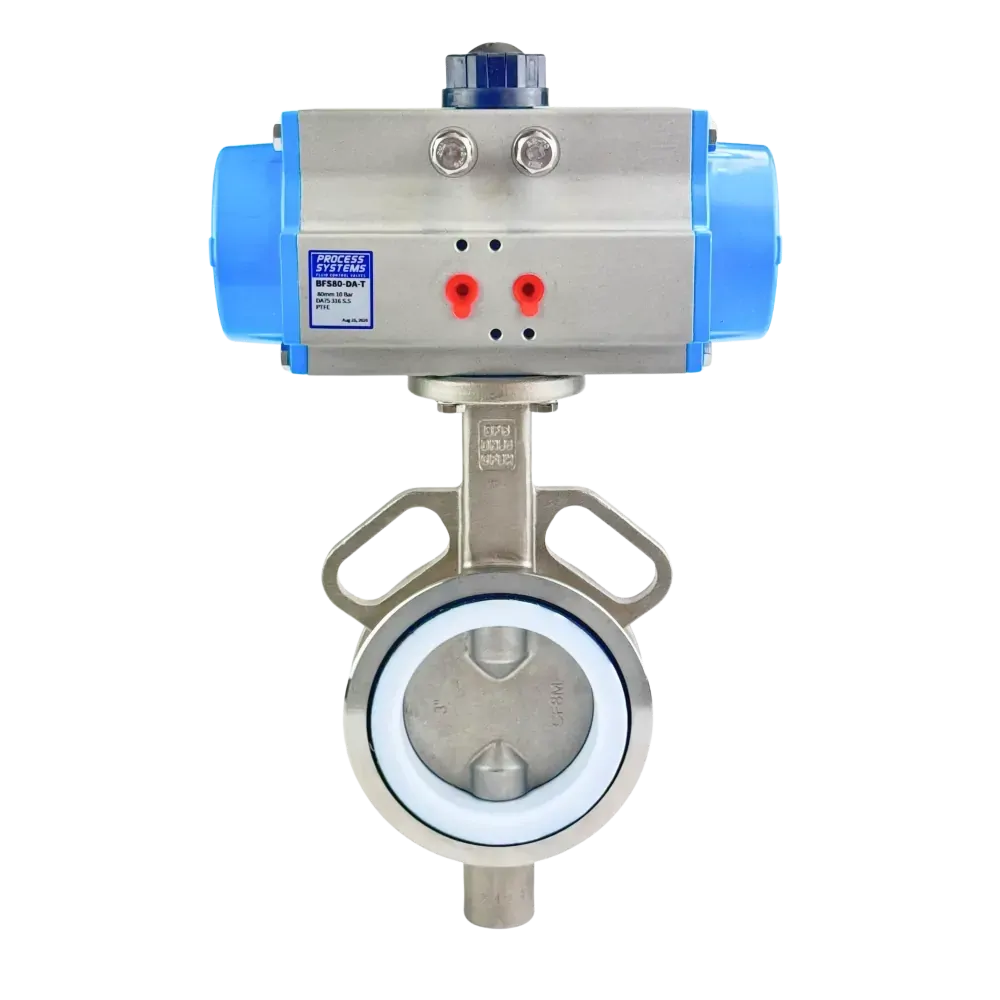

Stainless Steel Double Acting Butterfly Valve

Features:

Size 50mm to 300mm
Body 316 Stainless Steel
Seat PTFE coated NBR
Disc 316 Stainless Steel
Pressure 10 BAR
Actuation Double Acting Pneumatic

Description:

  • Wafer 316 Stainless Steel Double Acting Pneumatic Butterfly Valve
  • PTFE coated NBR seat, 316 SS disc, splined shaft
  • Anodised Aluminium Pneumatic Actuator
  • Adjustable Stops, Namur Interface & Visual Indicator
Model Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BFS50-DA-T 50 DA63 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/8"
BFS65-DA-T 65 DA75 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/8"
BFS80-DA-T 80 DA75 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/8"
BFS100-DA-T 100 DA88 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/8"
BFS125-DA-T 125 DA100 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/4"
BFS150-DA-T 150 DA115 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/4"
BFS200-DA-T 200 DA125 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/4"
BFS250-DA-T 250 DA160 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/4"
BFS300-DA-T 300 DA180 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/4"

For sizes over 300mm please contact us.

.

Stainless Steel Double Acting Butterfly Valve

BFSDA

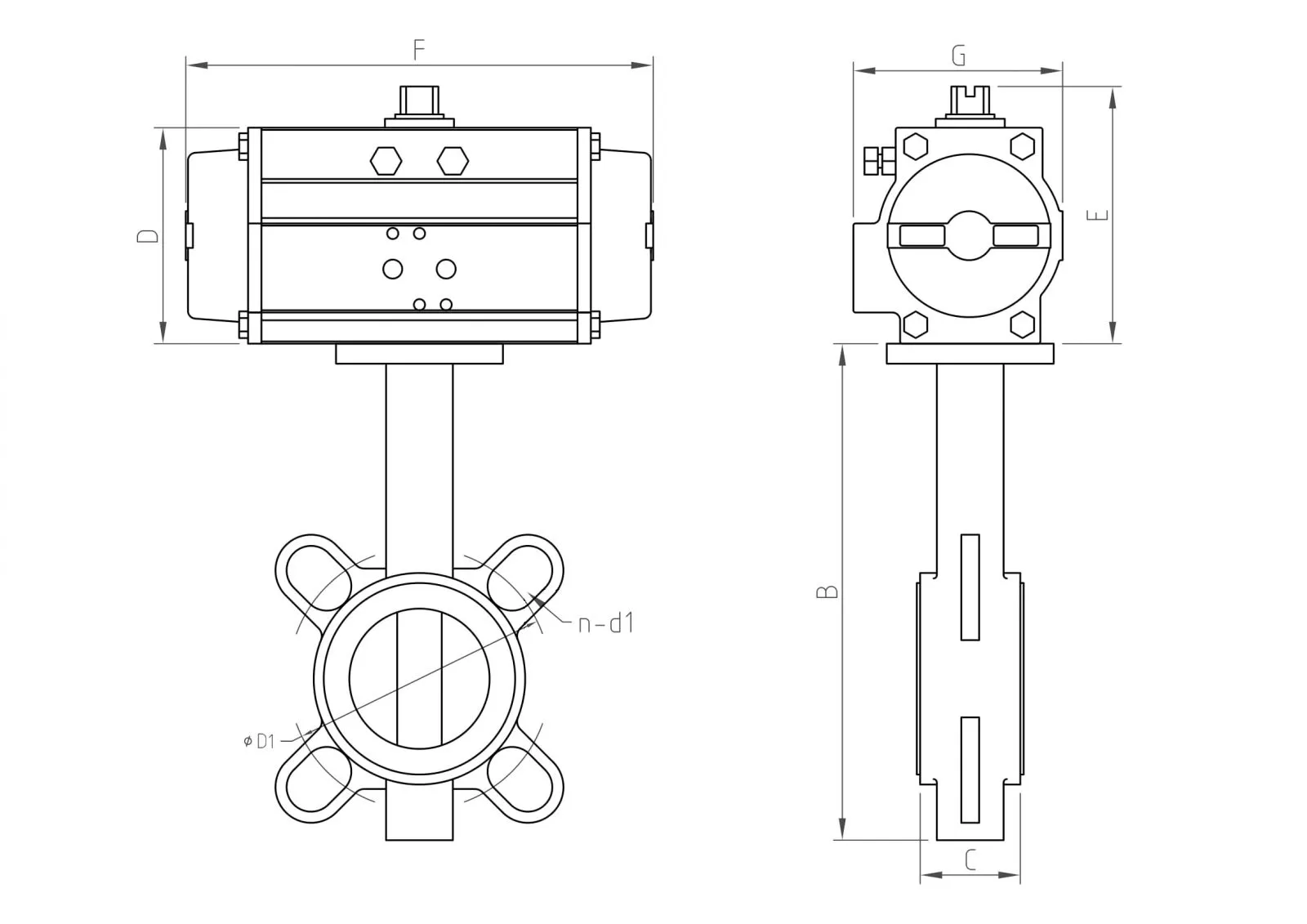

Dimensions:

DN Actuator B C D E F G BS4504 PN10 ANSI 150 AS2129 Table D AS2129 Table E
D1 n-d1 D1 n-d1 D1 n-d1 D1 n-d1
50 DA63 210 42 80 100 162 80.5 125 4-18 120.5 4-19 114 4-18 114 4-18
65 DA75 225 44.7 97 117 208 94.5 145 4-18 139.5 4-19 127 4-18 127 4-18
80 DA75 250 45.2 97 117 208 94.5 160 4(8)-18 152.5 4-19 146 4-18 146 4-18
100 DA88 270 52.1 116 136 245 109 180 4(8)-18 190.5 4(8)-19     178 4(8)-18
125 DA100 305 54.4 122 142 266 123 210 4(8)-18 216 4(8)-22 210 4(8)-18 210 4(8)-18
150 DA115 345 55.8 142 172 310 137 240 4(8)-23 241.5 4(8)-22 235 4(8)-18 235 4(8)-22
200 DA125 415 60.6 154 184 340 148 295 4(8)-23 298.5 4(8)-22 292 4(8)-18 292 4(8)-22
250 DA160 485 65.6 192 222 430 186.5 355 4(12)-23 362 4(12)-25     356 4(12)-22
300 DA180 555 76.9 222 252 482 204 410 4(12)-23 432 4(12)-25 406 4(12)-22 406 4(12)-26

All dimensions in mm unless specified otherwise
