Stainless Steel Double Acting Knife Gate Valve

From $1,111.00

Inc GST
In Stock
Make an Enquiry
  • Table E Lugged 316 Stainless Steel Double Acting Peumatic Knife Gate Valve
  • Metal to Metal or Resilient (NBR) Seat options
  • 0 to 10 Bar Pressure Range
  • Uni Directional Flow
  • Designed to MSS SP-81
Model Size (mm) Pressure Range Media Temperature Weight (kg) Cylinder Port Size
KGSDA*-50 50 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 7 3/8"
KGSDA*-65 65 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 8 3/8"
KGSDA*-80 80 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 13 1/2"
KGSDA*-100 100 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 15 1/2"
KGSDA*-125 125 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 23 1/2"
KGSDA*-150 150 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 35 1/2"
KGSDA*-200 200 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 45 1/2"
KGSDA*-250 250 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 75 1/2"
KGSDA*-300 300 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 115 1/2"
KGSDA*-350 350 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 169 1/2"
KGSDA*-400 400 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 295 1/2"
KGSDA*-450 450 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 390 1/2"
KGSDA*-500 500 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 340 1/2"
KGSDA*-600 600 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 460 1/2"

Stainless Steel Pneumatic Double Acting Knife Gate Valve

DN L D1 (PCD) d (bore) N-M H A 2-Z
50 42 114 45 4-M16 470 193 3/8"
65 43 127 60 4-M16 501 193 3/8"
80 45 146 74 4-M16 550 215 1/2"
100 45 178 93 8-M16 600 234 1/2"
125 52 210 116 8-M16 715 290 1/2"
150 52 235 138 8-M20 795 315 1/2"
200 65 292 188 8-M20 995 400 1/2"
250 65 356 233 12-M20 115 450 1/2"
300 70 406 281 12-M22 1375 535 1/2"
350 70 470 330 12-M22 1520 585 1/2"

All dimensions in mm unless shown otherwise.

Stainless Steel Pneumatic Double Acting Knife Gate Valve

Number Item Material
1 Body CF8M
2 Seat NBR or Metal
3 Disc 316SS
4 Packing PTFE
5 Gland CF8
6 Plate 304SS
7 Cylinder Piston Rod Flash Chromed Carbon Steel
8 Yoke 304SS
9 Pneumatic Actuator Aluminium
10 Bolt B8M
11 Nut 8M
12 Piston Ring Magnetic
13 Pullar SS304
14 End Cover Aluminium Alloy

Size 50mm to 600mm
Body 316 Stainless Steel
Seat Metal or NBR
Gate 316 Stainless Steel
Pressure 10 BAR
Actuation Double Acting Pneumatic

KGSDA

Stainless Steel Double Acting Knife Gate Valve

Features:

Size 50mm to 600mm
Body 316 Stainless Steel
Seat Metal or NBR
Gate 316 Stainless Steel
Pressure 10 BAR
Actuation Double Acting Pneumatic

Description:

  • Table E Lugged 316 Stainless Steel Double Acting Peumatic Knife Gate Valve
  • Metal to Metal or Resilient (NBR) Seat options
  • 0 to 10 Bar Pressure Range
  • Uni Directional Flow
  • Designed to MSS SP-81
Model Size (mm) Pressure Range Media Temperature Weight (kg) Cylinder Port Size
KGSDA*-50 50 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 7 3/8"
KGSDA*-65 65 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 8 3/8"
KGSDA*-80 80 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 13 1/2"
KGSDA*-100 100 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 15 1/2"
KGSDA*-125 125 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 23 1/2"
KGSDA*-150 150 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 35 1/2"
KGSDA*-200 200 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 45 1/2"
KGSDA*-250 250 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 75 1/2"
KGSDA*-300 300 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 115 1/2"
KGSDA*-350 350 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 169 1/2"
KGSDA*-400 400 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 295 1/2"
KGSDA*-450 450 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 390 1/2"
KGSDA*-500 500 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 340 1/2"
KGSDA*-600 600 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 460 1/2"
.

Stainless Steel Double Acting Knife Gate Valve

KGSDA

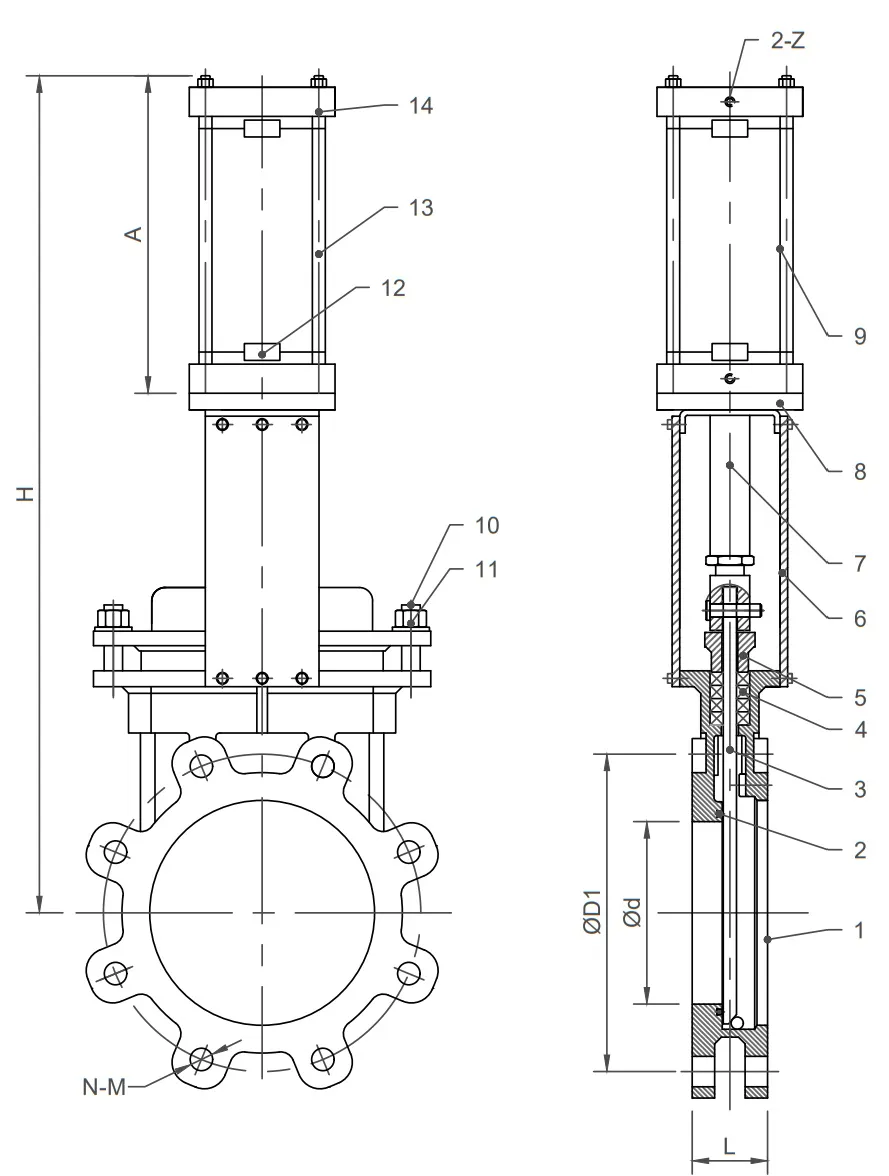

Dimensions:

Stainless Steel Pneumatic Double Acting Knife Gate Valve

DN L D1 (PCD) d (bore) N-M H A 2-Z
50 42 114 45 4-M16 470 193 3/8"
65 43 127 60 4-M16 501 193 3/8"
80 45 146 74 4-M16 550 215 1/2"
100 45 178 93 8-M16 600 234 1/2"
125 52 210 116 8-M16 715 290 1/2"
150 52 235 138 8-M20 795 315 1/2"
200 65 292 188 8-M20 995 400 1/2"
250 65 356 233 12-M20 115 450 1/2"
300 70 406 281 12-M22 1375 535 1/2"
350 70 470 330 12-M22 1520 585 1/2"

All dimensions in mm unless shown otherwise.

.

Stainless Steel Double Acting Knife Gate Valve

KGSDA

Construction:

Stainless Steel Pneumatic Double Acting Knife Gate Valve

Number Item Material
1 Body CF8M
2 Seat NBR or Metal
3 Disc 316SS
4 Packing PTFE
5 Gland CF8
6 Plate 304SS
7 Cylinder Piston Rod Flash Chromed Carbon Steel
8 Yoke 304SS
9 Pneumatic Actuator Aluminium
10 Bolt B8M
11 Nut 8M
12 Piston Ring Magnetic
13 Pullar SS304
14 End Cover Aluminium Alloy
