SKU: ES55D

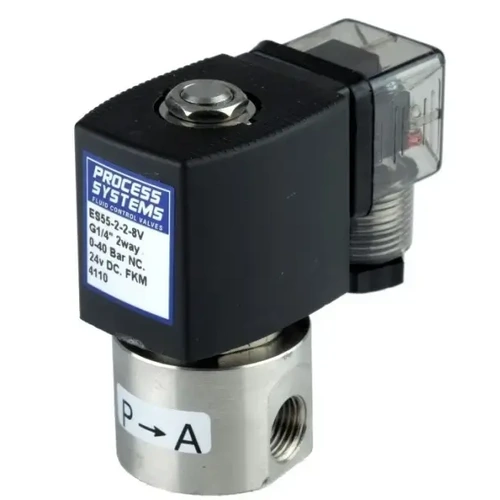

Stainless Steel General Purpose Direct Acting Normally Closed Solenoid Valve

From $82.50

Inc GST
In Stock
Make an Enquiry
  • 2 way Direct Acting Normally Closed (power to open) Solenoid Valve
  • 304 Stainless Steel Body, FKM seat
  • -10°C to 95°C Temperature Range
  • Comes with Coil & LED DIN Plug (IP65)
  • Install in any orientation (upright if possible)
Model Port Size (BSP) Orifice ømm CV Pressure (BAR) Coil
ES55-1-1-*V 1/8 1 0.04 0~25 SC-N14
16 Watts
27 Volt Amps
Class H Insulation
100% Ed
ES55-2-2-*V 1/4 2 0.1 0~16
ES55-2-3-*V 1/4 3 0.2 0~10
ES55-2-4-*V 1/4 4 0.4 0~6

Direct Acting Normally Closed 2 way solenoid valve

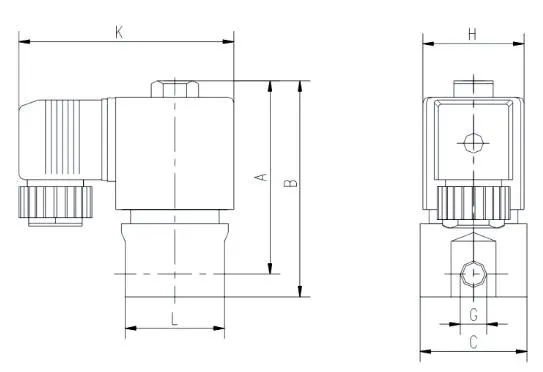

Model G L K A B C H Weight Kg
ES55-1-1-*V 1/8 34 76 72 80 Ø38 36 0.8
ES55-2-2-*V 1/4 34 76 72 80 Ø38 36 0.8
ES55-2-3-*V 1/4 34 76 72 80 Ø38 36 0.9
ES55-2-4-*V 1/4 34 76 72 80 Ø38 36 1.35

All dimensions in mm unless shown otherwise.

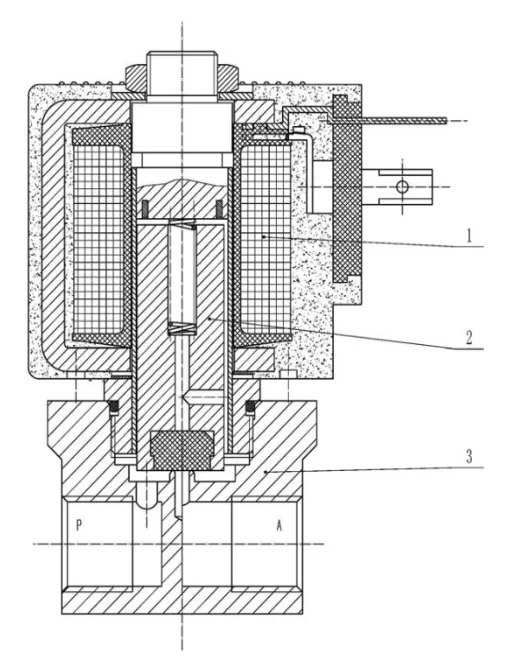

Stainless Steel Two Way Normally Closed Direct Acting Solenoid Valve

Number Item Material
1 Coil Epoxy
2 Armature Martensitic stainless steel
3 Valve Body 304 Stainless Steel

Size 1/8" to 1/4" BSP
Function Normally Closed (power to open)
Valve Operation Direct Acting
Body 304 Stainless Steel
Seat FKM
Pressure Range 0 to 25 BAR (depend on size)
Media Non aggressive media
