SKU: GLS

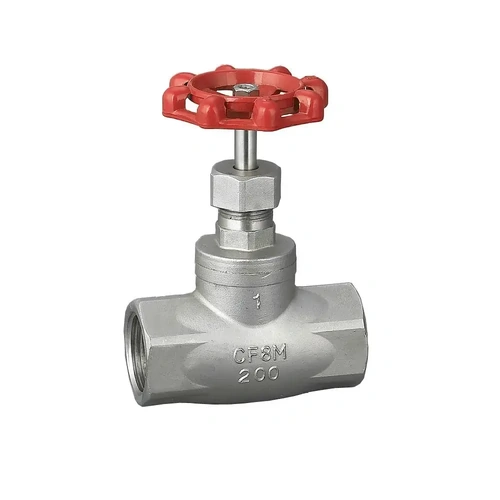

Stainless Steel Globe Valve

From $38.50

Inc GST
In Stock
Make an Enquiry
  • 316 Stainless Steel BSP Threaded Globe Valve
  • Metal to Metal Seat
  • PTFE Gland
  • 0 to 13 Bar Pressure Range
  • -20°C to 120°C Temperature Range

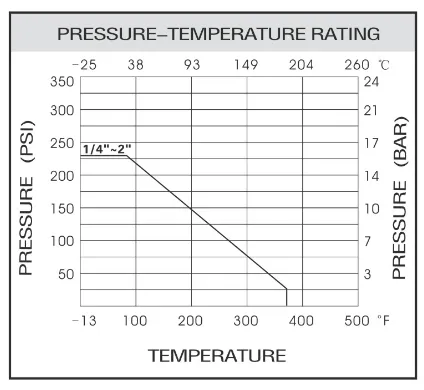

Stainless Steel Threaded Globe Valve Pressure vs Temperature

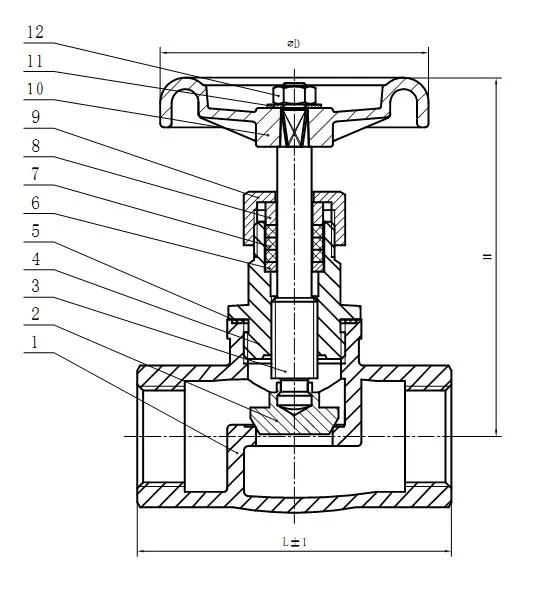

Stainless Steel Threaded Globe Valve

Model Size L H D Weight (kg)
GLS-04 ½” 65 93 65 0.4
GLS-05 ¾” 80 97 65 0.5
GLS-06 1” 90 112 72 0.7
GLS-07 1 ¼” 105 124 96 1.2
GLS-08 1 ½” 120 137 105 1.5
GLS-09 2” 140 149 105 2.5

All dimensions in mm unless shown otherwise.

Stainless Steel Threaded Globe Valve

Number Name Material
1 Body ASTM A351 CF8M
2 Disc ASTM A351 CF8M
3 Stem ASTM A276 316
4 Bonnet ASTM A351 CF8M
5 Body Gasket PTFE
6 Washer ASTM A276 316
7 Packing PTFE
8 Packing Sleeve ASTM A276 316
9 Packing Gland ASTM A351 CF8M
10 Hand Wheel Aluminium Alloy
11 Nut ASTM A194-B8M
12 Plain Washer ASTM A276 304

Size 1/2" to 2" BSP
Body 316 Stainless Steel
Seat Stainless Steel
Nominal Pressure 13 BAR
Max Temp 180°C
