SKU: MS-6

Stainless Steel Noiseless Heater

From $544.50

Inc GST
In Stock
Make an Enquiry
  • 316 Stainless Steel Noiseless Heater
  • Steam Injector/Sparge Pipe Head/Silent Water Heater
  • 0 to 70 Bar Pressure Range
  • 0°C to 180°C Temperature Range
  • BSPT Threaded

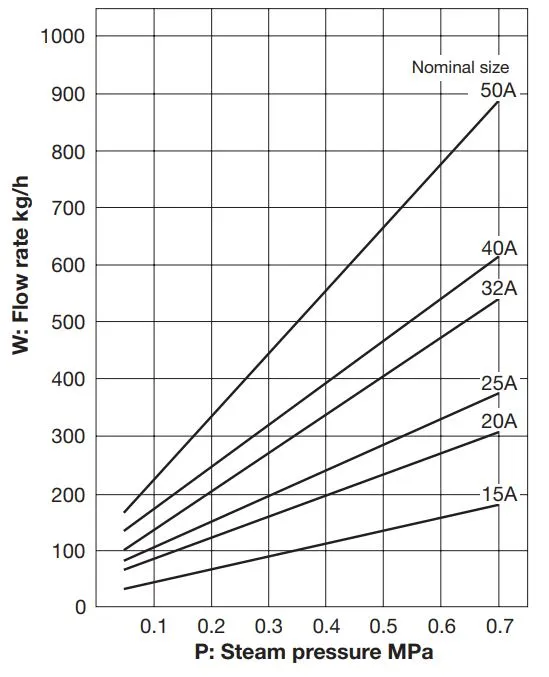

Capacity Chart



Noiseless Heater & Vacuum Relief Valve Dimensions

Size L (mm) D (mm) Weight (kg)
1/2" BSPT 48.5 35 0.25
3/4" BSPT 49 45 0.4
1" BSPT 52 50 0.52
1 1/4" BSPT 55 60 0.77
1 1/2" BSPT 59 70 1.15
2" BSPT 65 105 2.99

Size 3/4" to 1-1/2" BSP
Body 316 Stainless Steel
Pressure Range 0 to 7 BAR
Media Steam
