SKU: S55

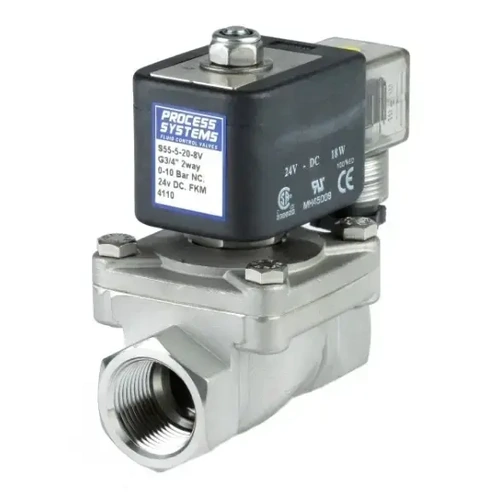

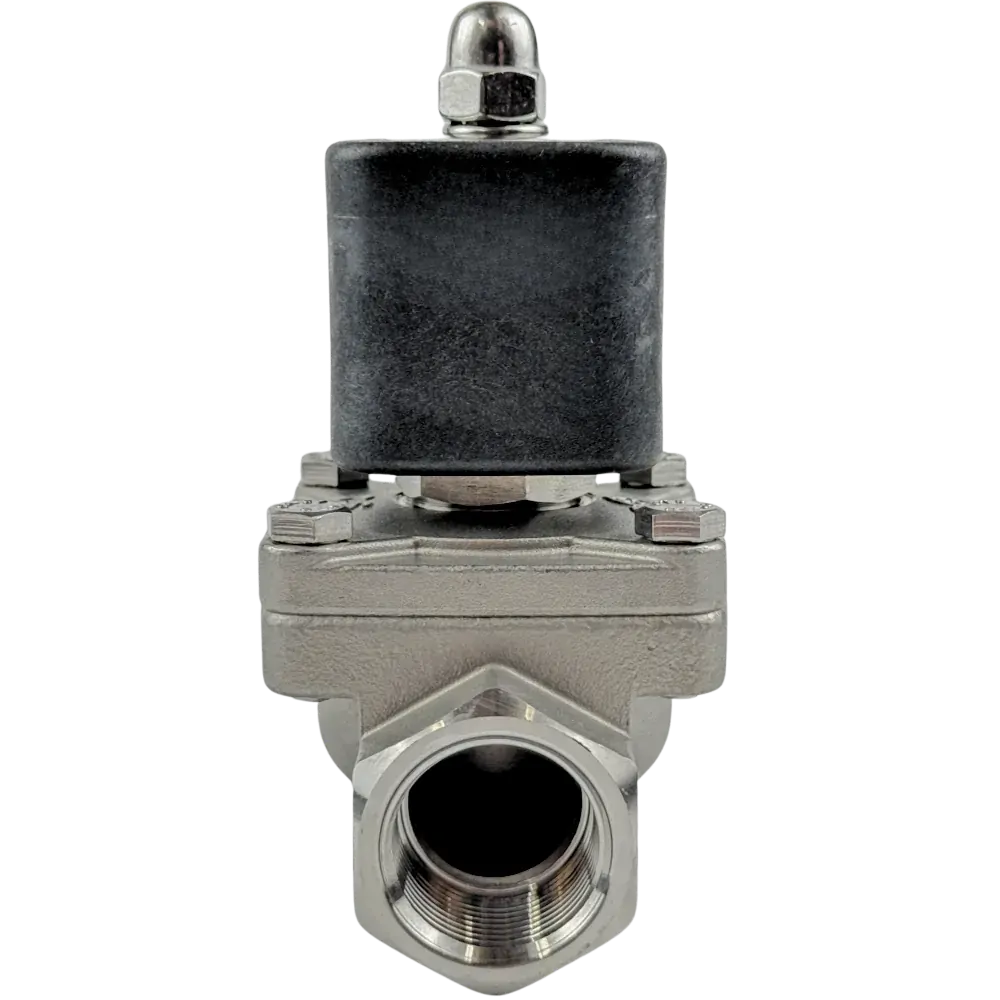

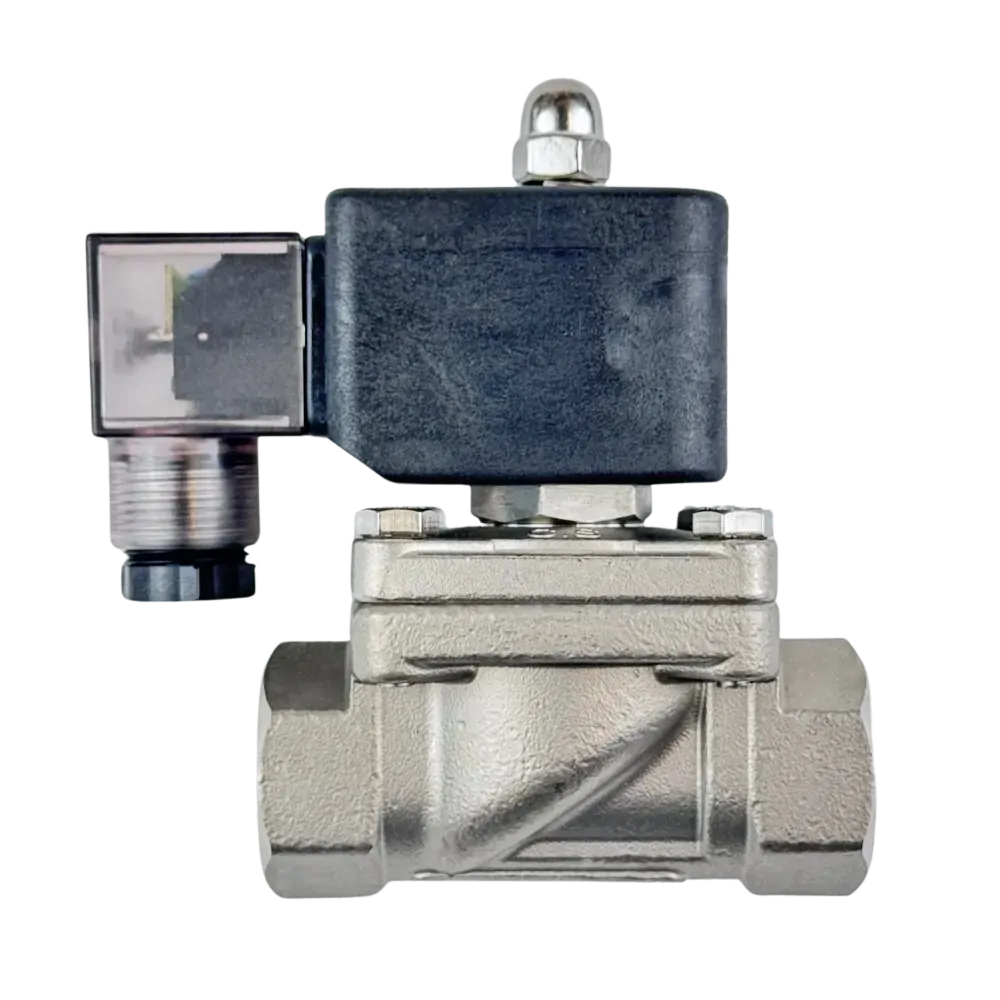

Stainless Steel Petrochemical Normally Closed Zero Differential Solenoid Valve

From $423.50

Inc GST
In Stock
Make an Enquiry
  • 2 way Zero Differential Normally Closed (power to open) Solenoid Valve
  • 316 Stainless Steel Body, FKM seals
  • 0 to 10 Bar Pressure Range
  • -10°C to 100°C Temperature Range
  • For Gases & Liquids (Petrochemical)
  • Comes with Coil & LED DIN Plug (IP65)
  • Install in any orientation (upright if possible)

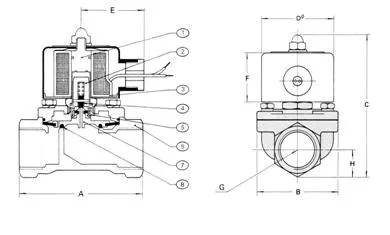

316 Stainless Steel Normally Closed Zero Differential Solenoid Valve

Model A B C D E F G H Weight Kg
S55-3-15-*V 75 52 103 56 70 37 3/8 14.5 1.00
S55-4-15-*V 75 52 103 56 70 37 1/2 14.5 1.00
S55-5-20-*V 85 60 114 56 70 37 3/4 18 1.25
S55-6-25-*V 100 70 120 56 70 37 1 23 1.50
S55-7-35-*V 120 90 140 56 70 37 1 1/4 33 2.85
S55-8-35-*V 120 90 140 56 70 37 1 1/2 33 2.85
S55-9-50-*V 150 120 160 56 70 37 2 40.5 4.80

All dimensions in mm.

316 Stainless Steel Normally Closed Zero Differential Solenoid Valve

Item Article Material
1 Armature Stainless Steel 304
2 Plunger Stainless Steel 304
3 Coil Brass Wire
4 Plunger Seat Viton
5 Spring Stainless Steel 304
6 Valve Body 316 Stainless Steel
7 Diaphragm Viton
8 Leak proof Ring Viton

Size 3/8" to 2" BSP
Function Normally Closed (power to open)
Valve Operation Coupled Diaphragm
Body 316 Stainless Steel
Seat FKM
Pressure Range 0 to 10 BAR
Media Petrochemical
