SKU: S75T

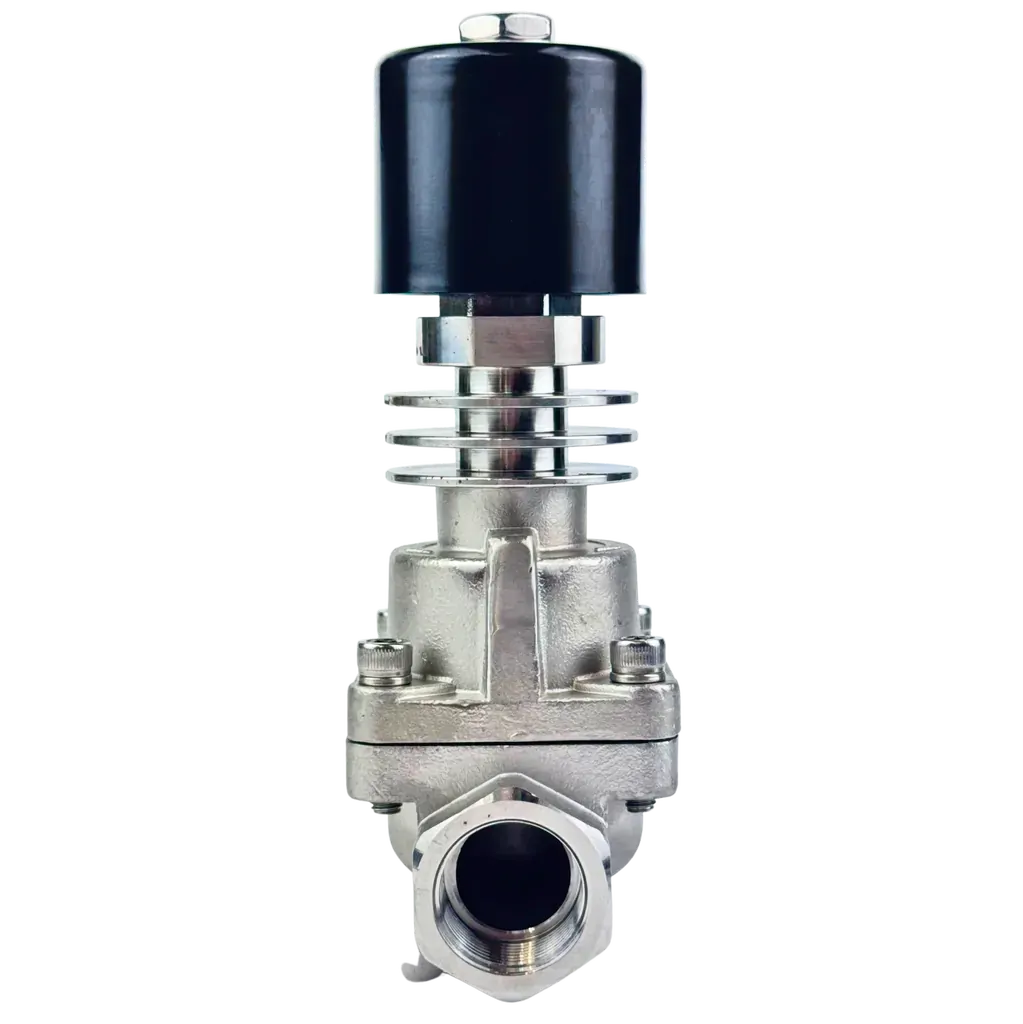

Stainless Steel Very High Temperature Normally Closed Solenoid Valve

From $467.50

Inc GST
In Stock
Make an Enquiry
  • 2 way Differential Normally Closed (power to open) Piston Solenoid Valve
  • 304 Stainless Steel Body, PTFE Seals, Stainless Seat
  • 0.5 to 20 Bar Pressure Range
  • -10°C to 180°C Temperature Range
  • Comes with Coil, heat sync & Flying lead coil
  • Install in any orientation (upright if possible)
  • Suitable for Steam & Very High Temperature Applications
  • * Note this is a hard PTFE sea. May not be bubble tight at low pressure/temperature

Stainless Steel Normally Closed Differential Very High Temperature Solenoid Valve

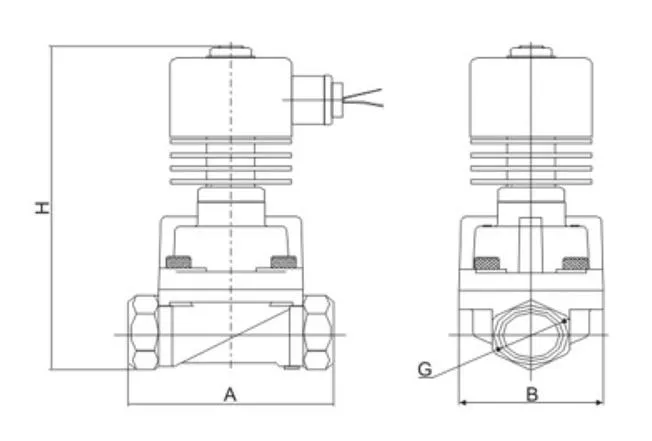

Model G (BSP) A B H Weight Kg
S75T-3-15-*T 3/8” 75 52 159 1.65
S75T-4-15-*T 1/2" 75 52 159 1.65
S75T-5-20-*T 3/4" 85 60 171 2.13
S75T-6-25-*T 1” 100 70 178 2.35
S75T-7-35-*T 1 ¼” 120 90 198 3.85
S75T-8-40-*T 1 ½” 120 90 198 3.30
S75T-9-50-*T 2” 150 110 220 7.35

All dimensions in mm unless shown otherwise.

Size 1/2" to 2" BSP
Function Normally Closed (power to open)
Valve Operation Servo Assisted
Body 304 Stainless Steel
Seat RPTFE
Pressure Range 0.5 to 25 BAR
Media Steam, Hot Oil

DATA SHEET
