SKU: BFP

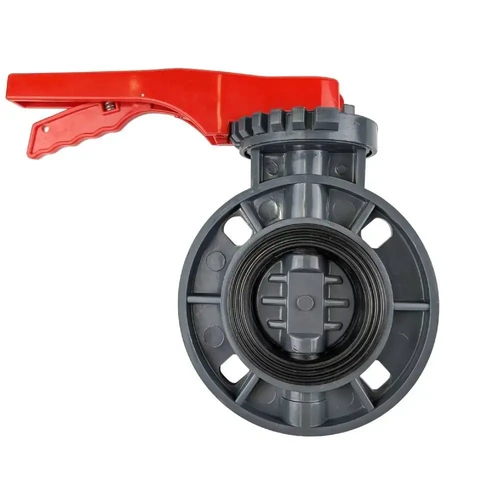

UPVC Butterfly Valve

From $66.00

Inc GST
In Stock
Make an Enquiry
  • UV Stabalised PVC Butterfly Valve
  • FKM or EPDM seat
  • PVC disc, 304 Stainless Steel Shaft
  • ISO pad for direct actuation mount
  • PVC handle
Model Size (mm) Pressure Range Temperature Square drive size ISO Mtg Torque (Nm)
BFP50-L-E 50 0 to 10 Bar Ambient 11mm F05/F07 9
BFP65-L-E 65 0 to 10 Bar Ambient 11mm F05/F07 15.2
BFP80-L-E 80 0 to 10 Bar Ambient 11mm F05/F07 22.9
BFP100-L-E 100 0 to 10 Bar Ambient 14mm F05/F07 33.9
BFP125-L-E 125 0 to 10 Bar Ambient 17mm F07/F10 42.2
BFP150-L-E 150 0 to 10 Bar Ambient 17mm F07/F10 60.8
BFP200-L-E 200 0 to 10 Bar Ambient 17mm F10 108.6

*Change the E to a V for FKM

PVC Butterfly Valve

Size H1 H C L n e D h B M d1 T d2 d
50mm 79 87 123 45 4 20 54 27 11 70 8.5 50 7 25
65mm 90 96 143 48 4 21 67 27 11 70 8.5 50 7 27
80mm 96 114 157 52 4 21 83 28 11 70 8.5 50 7 24
100mm 110 127 186 57 8 21 101 28 14 70 8.5 50 7 30
125mm 127 157 213 65 8 24 127 31 17 102 11 70 8.5 28
150mm 145 170 240 72 8 24 152 32 17 102 11 70 8.5 29
200mm 172 213 296 90 8 24 200 34 17 102 11 70 8.5 30

All dimensions in mm unless shown otherwise.

Size 50mm to 200mm Semi Lugged Table E
Body UV Stabalised PVC
Seat EPDM or FKM
Disc PVC
Pressure 10 BAR
Actuation Lever or Gear Box

BFP

UPVC Butterfly Valve

Features:

Size 50mm to 200mm Semi Lugged Table E
Body UV Stabalised PVC
Seat EPDM or FKM
Disc PVC
Pressure 10 BAR
Actuation Lever or Gear Box

Description:

  • UV Stabalised PVC Butterfly Valve
  • FKM or EPDM seat
  • PVC disc, 304 Stainless Steel Shaft
  • ISO pad for direct actuation mount
  • PVC handle
Model Size (mm) Pressure Range Temperature Square drive size ISO Mtg Torque (Nm)
BFP50-L-E 50 0 to 10 Bar Ambient 11mm F05/F07 9
BFP65-L-E 65 0 to 10 Bar Ambient 11mm F05/F07 15.2
BFP80-L-E 80 0 to 10 Bar Ambient 11mm F05/F07 22.9
BFP100-L-E 100 0 to 10 Bar Ambient 14mm F05/F07 33.9
BFP125-L-E 125 0 to 10 Bar Ambient 17mm F07/F10 42.2
BFP150-L-E 150 0 to 10 Bar Ambient 17mm F07/F10 60.8
BFP200-L-E 200 0 to 10 Bar Ambient 17mm F10 108.6

*Change the E to a V for FKM

.

UPVC Butterfly Valve

BFP

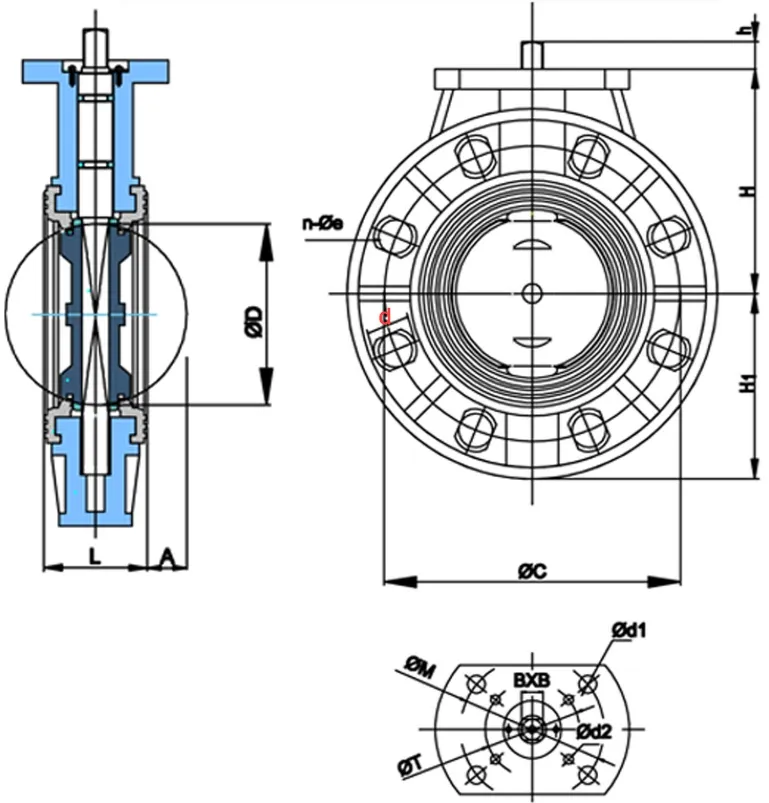

Dimensions:

PVC Butterfly Valve

Size H1 H C L n e D h B M d1 T d2 d
50mm 79 87 123 45 4 20 54 27 11 70 8.5 50 7 25
65mm 90 96 143 48 4 21 67 27 11 70 8.5 50 7 27
80mm 96 114 157 52 4 21 83 28 11 70 8.5 50 7 24
100mm 110 127 186 57 8 21 101 28 14 70 8.5 50 7 30
125mm 127 157 213 65 8 24 127 31 17 102 11 70 8.5 28
150mm 145 170 240 72 8 24 152 32 17 102 11 70 8.5 29
200mm 172 213 296 90 8 24 200 34 17 102 11 70 8.5 30

All dimensions in mm unless shown otherwise.

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult PCIPro Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.

WARRANTY INFORMATION

All valve series and other products manufactured or distributed by PCIPro are warranted by PCIPro to be free of defects in material and workmanship for a period of 1 year from the date of purchase or as the manufacturer warrants. PCIPro obligation under this warranty is limited to repair or replacement of the defec1ive product or refund of the purchase price paid solely at the discretion of PCIPro and provided such defective product is returned to PCIPro freight prepaid and upon examination by PCIPro such product is found defective. This warranty shall be void in the event that the product has been subject to misuse, misapplication, improper maintenance, modification or tampering. This warranty is expressed in lieu of all other warranties, expressed or implied from PCIPro representatives or employees. PCIPro reserves the right to change Valve and Brochure specifications without notice.

.
