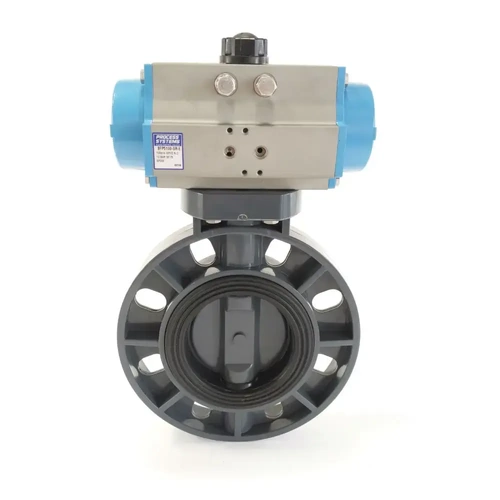

UPVC Spring Return Pneumatic Wafer Butterfly Valve

From $225.50

Inc GST
In Stock
Make an Enquiry
  • UV Stabalised Spring Return Pneumatic PVC Butterfly Valve
  • FKM or EPDM seat
  • PVC disc, 304 Stainless Steel Shaft
  • Anodised Aluminium Spring Return Actuator
  • Adjustable Stops, Namur Interface & Visual Indicator
Model Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BFP550-SR-E 50 SR63 0 to 10 BAR ambient 6 to 8 BAR 1/8"
BFP565-SR-E 65 SR63 0 to 10 BAR ambient 6 to 8 BAR 1/8"
BFP580-SR-E 80 SR75 0 to 10 BAR ambient 6 to 8 BAR 1/8"
BFP5100-SR-E 100 SR75 0 to 10 BAR ambient 6 to 8 BAR 1/8"
BFP5125-SR-E 125 SR88 0 to 10 BAR ambient 6 to 8 BAR 1/8"
BFP5150-SR-E 150 SR100 0 to 10 BAR ambient 6 to 8 BAR 1/4"
BFP5200-SR-E 200 SR115 0 to 10 BAR ambient 6 to 8 BAR 1/4"

*Change the E to a V for FKM. Change the '5' to '6' for spring open.

Size Actuator H1 H C L n e D d A B H3 F
50mm SR63 79 99 123 45 4 20 54 25 162 81 101 80.4
65mm SR63 90 108 143 48 4 21 67 27 162 81 101 80.4
80mm SR75 96 126 157 52 4 21 83 24 208 97 117 94.5
100mm SR75 110 139 186 57 8 21 101 30 208 97 117 94.5
125mm SR88 127 169 213 65 8 24 127 28 245 116 136 109
150mm SR100 145 182 240 72 8 24 152 29 266 122 136 123
200mm SR115 172 225 296 90 8 24 200 30 310 142 172 137

All dimensions are in mm unless shown otherwise

Size 50mm to 200mm Semi Lugged Table E
Body UV Stabalised PVC
Seat EPDM
Disc PVC
Pressure 10 BAR
Actuation Spring Return Pneumatic

Others Also Bought

BFPSR

UPVC Spring Return Pneumatic Wafer Butterfly Valve

Features:

Size 50mm to 200mm Semi Lugged Table E
Body UV Stabalised PVC
Seat EPDM
Disc PVC
Pressure 10 BAR
Actuation Spring Return Pneumatic

Description:

  • UV Stabalised Spring Return Pneumatic PVC Butterfly Valve
  • FKM or EPDM seat
  • PVC disc, 304 Stainless Steel Shaft
  • Anodised Aluminium Spring Return Actuator
  • Adjustable Stops, Namur Interface & Visual Indicator
Model Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BFP550-SR-E 50 SR63 0 to 10 BAR ambient 6 to 8 BAR 1/8"
BFP565-SR-E 65 SR63 0 to 10 BAR ambient 6 to 8 BAR 1/8"
BFP580-SR-E 80 SR75 0 to 10 BAR ambient 6 to 8 BAR 1/8"
BFP5100-SR-E 100 SR75 0 to 10 BAR ambient 6 to 8 BAR 1/8"
BFP5125-SR-E 125 SR88 0 to 10 BAR ambient 6 to 8 BAR 1/8"
BFP5150-SR-E 150 SR100 0 to 10 BAR ambient 6 to 8 BAR 1/4"
BFP5200-SR-E 200 SR115 0 to 10 BAR ambient 6 to 8 BAR 1/4"

*Change the E to a V for FKM. Change the '5' to '6' for spring open.

.

UPVC Spring Return Pneumatic Wafer Butterfly Valve

BFPSR

Dimensions:

Size Actuator H1 H C L n e D d A B H3 F
50mm SR63 79 99 123 45 4 20 54 25 162 81 101 80.4
65mm SR63 90 108 143 48 4 21 67 27 162 81 101 80.4
80mm SR75 96 126 157 52 4 21 83 24 208 97 117 94.5
100mm SR75 110 139 186 57 8 21 101 30 208 97 117 94.5
125mm SR88 127 169 213 65 8 24 127 28 245 116 136 109
150mm SR100 145 182 240 72 8 24 152 29 266 122 136 123
200mm SR115 172 225 296 90 8 24 200 30 310 142 172 137

All dimensions are in mm unless shown otherwise
