SKU: BLP3

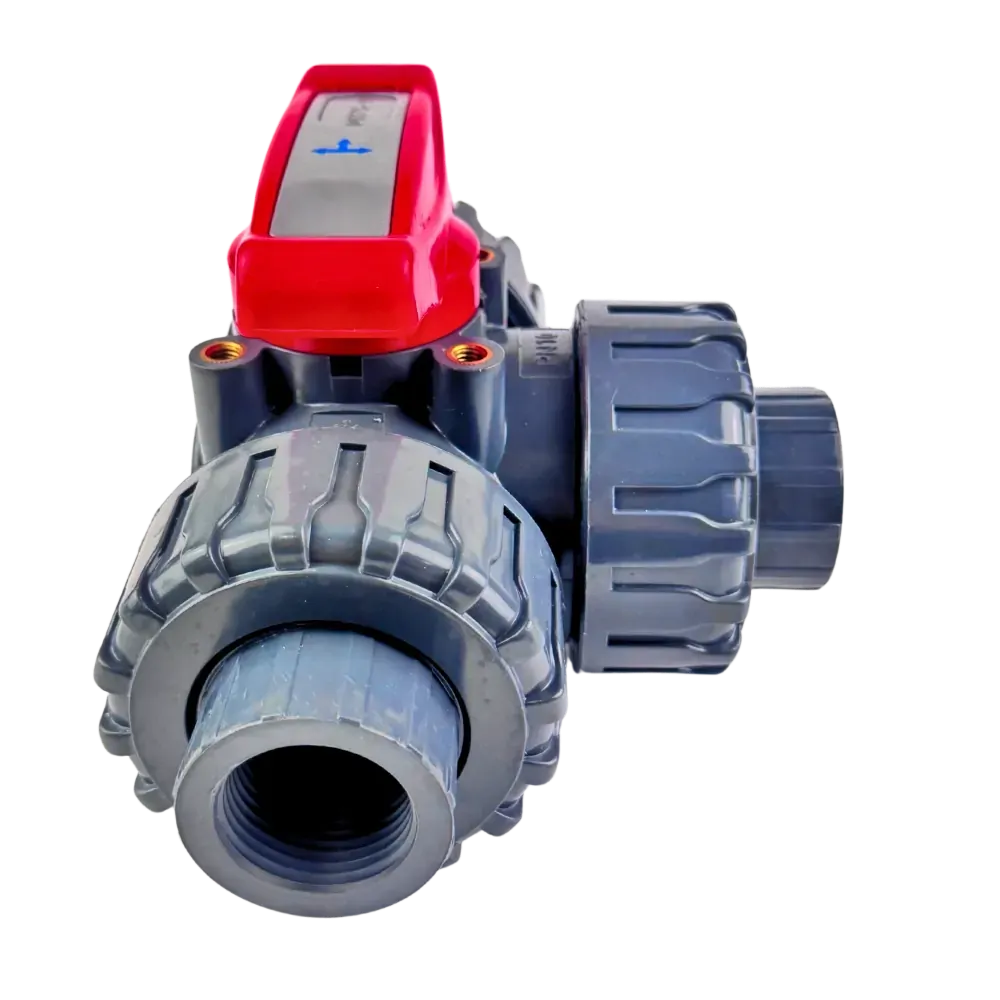

UV Stabalised 3 Way PVC Manual Ball Valve

From $137.50

Inc GST
In Stock
Make an Enquiry
  • Three way UV Stabalised PVC Ball Valve
  • L or T port configuration
  • Unique Double Oring Stem Seal Design
  • FKM or EPDM seals with a PTFE seat
  • Chem Lock insert with True Union Ends
  • BSP or Solvent Weld (fit sched 40 & 80 pipe) options
  • Includes ISO mounting kit
Model Size DN(mm) Media Pressure Media Temperature Torque (Nm)
BLP3L4B-L-E 1/2 15 -1 to 10 Bar Ambient 3
BLP3L5B-L-E 3/4 20 -1 to 10 Bar Ambient 5
BLP3L6B-L-E 1 25 -1 to 10 Bar Ambient 6
BLP3L7B-L-E 1 ¼ 32 -1 to 10 Bar Ambient 6
BLP3L8B-L-E 1 ½ 40 -1 to 10 Bar Ambient 14
BLP3L9B-L-E 2 50 -1 to 10 Bar Ambient 23

Change the 'B' to an 'S' for solvent weld. Change the 'L" to a 'T' for T port. Change the 'E' to 'V' for FKM.

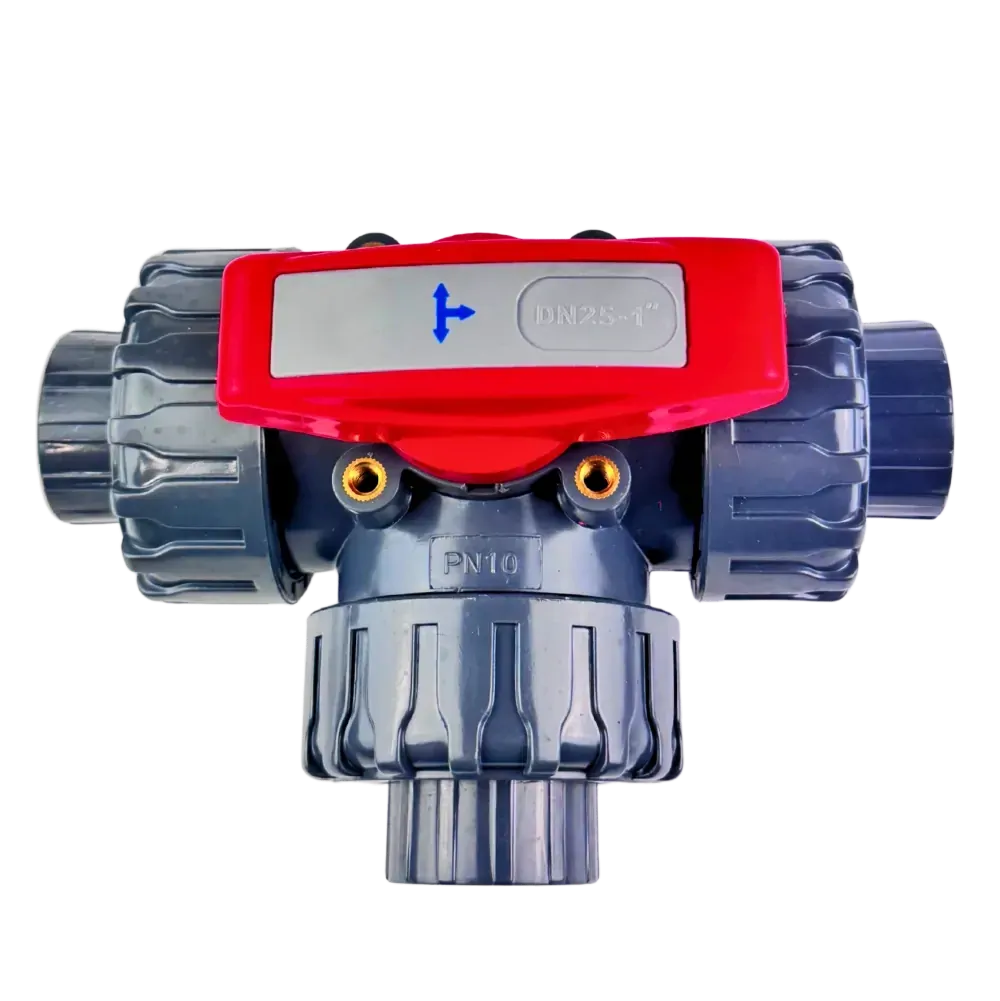

L Port T Port

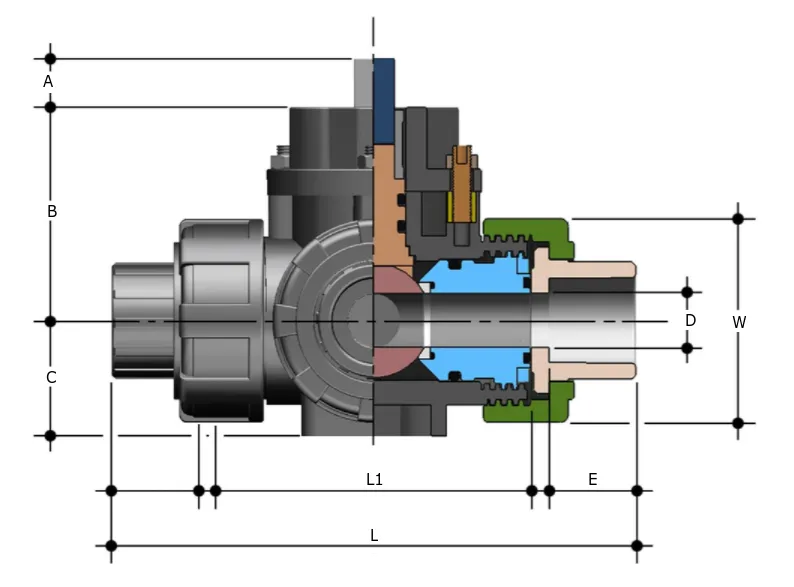

PVC 3 way manual ball valve

Model A B C D E W L L1
BLP3L4B-L-E 14 55 30 14 23 53 138 83
BLP3L5B-L-E 14 65 38 20 25 69 173 110
BLP3L6B-L-E 14 68 48 25 28 82 200 130
BLP3L7B-L-E 14 68 48 25 32 82 208 130
BLP3L8B-L-E 14 92 65 38 35 117 240 154
BLP3L9B-L-E 14 92 65 38 38 117 249 154

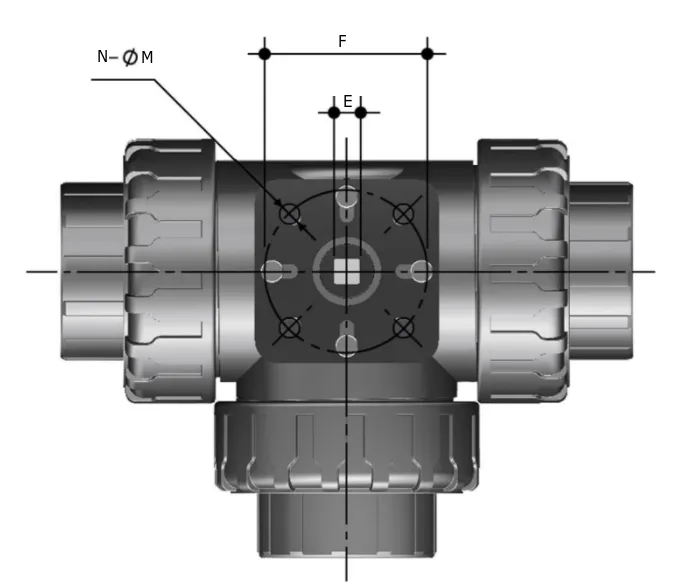

Top View/Pad Mount

3 way lever PVC ball Valve L and T port

Model N-M F E
BLP3L4B-L-E 4-M5 F03 11x11
BLP3L5B-L-E 4-M5 F03 11x11
BLP3L6B-L-E 4-M5 F03 11x11
BLP3L7B-L-E 4-M5 F03 11x11
BLP3L8B-L-E 4-8 F07 11x11
BLP3L9B-L-E 4-8 F07 11x11

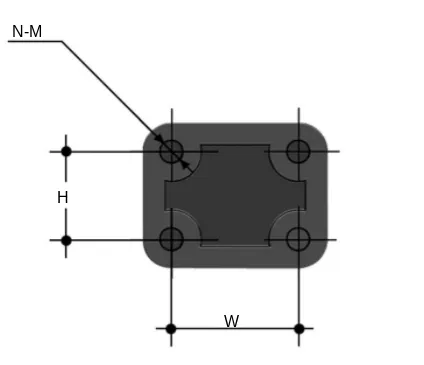

 Underside Fixing

3 way PVC Ball Valve Mountings

Model N-M H W
BLP3L4B-L-E 4-M6 18 26
BLP3L5B-L-E 4-M6 18 26
BLP3L6B-L-E 4-M6 24 36
BLP3L7B-L-E 4-M6 24 36
BLP3L8B-L-E 4-M8 30 50
BLP3L9B-L-E 4-M8 30 50

All dimensions in mm unless shown otherwise.

Size 1/2" to 2" BSP & Solvent Weld
Body UV stabalised PVC
Seat PTFE
Pressure 10 BAR
Temperature Ambient
Actuation Lever

BLP3

UV Stabalised 3 Way PVC Manual Ball Valve

Features:

Size 1/2" to 2" BSP & Solvent Weld
Body UV stabalised PVC
Seat PTFE
Pressure 10 BAR
Temperature Ambient
Actuation Lever

Description:

  • Three way UV Stabalised PVC Ball Valve
  • L or T port configuration
  • Unique Double Oring Stem Seal Design
  • FKM or EPDM seals with a PTFE seat
  • Chem Lock insert with True Union Ends
  • BSP or Solvent Weld (fit sched 40 & 80 pipe) options
  • Includes ISO mounting kit
Model Size DN(mm) Media Pressure Media Temperature Torque (Nm)
BLP3L4B-L-E 1/2 15 -1 to 10 Bar Ambient 3
BLP3L5B-L-E 3/4 20 -1 to 10 Bar Ambient 5
BLP3L6B-L-E 1 25 -1 to 10 Bar Ambient 6
BLP3L7B-L-E 1 ¼ 32 -1 to 10 Bar Ambient 6
BLP3L8B-L-E 1 ½ 40 -1 to 10 Bar Ambient 14
BLP3L9B-L-E 2 50 -1 to 10 Bar Ambient 23

Change the 'B' to an 'S' for solvent weld. Change the 'L" to a 'T' for T port. Change the 'E' to 'V' for FKM.

L Port T Port
.

UV Stabalised 3 Way PVC Manual Ball Valve

BLP3

Dimensions:

PVC 3 way manual ball valve

Model A B C D E W L L1
BLP3L4B-L-E 14 55 30 14 23 53 138 83
BLP3L5B-L-E 14 65 38 20 25 69 173 110
BLP3L6B-L-E 14 68 48 25 28 82 200 130
BLP3L7B-L-E 14 68 48 25 32 82 208 130
BLP3L8B-L-E 14 92 65 38 35 117 240 154
BLP3L9B-L-E 14 92 65 38 38 117 249 154



Top View/Pad Mount

3 way lever PVC ball Valve L and T port

Model N-M F E
BLP3L4B-L-E 4-M5 F03 11x11
BLP3L5B-L-E 4-M5 F03 11x11
BLP3L6B-L-E 4-M5 F03 11x11
BLP3L7B-L-E 4-M5 F03 11x11
BLP3L8B-L-E 4-8 F07 11x11
BLP3L9B-L-E 4-8 F07 11x11

 Underside Fixing

3 way PVC Ball Valve Mountings

Model N-M H W
BLP3L4B-L-E 4-M6 18 26
BLP3L5B-L-E 4-M6 18 26
BLP3L6B-L-E 4-M6 24 36
BLP3L7B-L-E 4-M6 24 36
BLP3L8B-L-E 4-M8 30 50
BLP3L9B-L-E 4-M8 30 50

All dimensions in mm unless shown otherwise.
