SKU: BCP

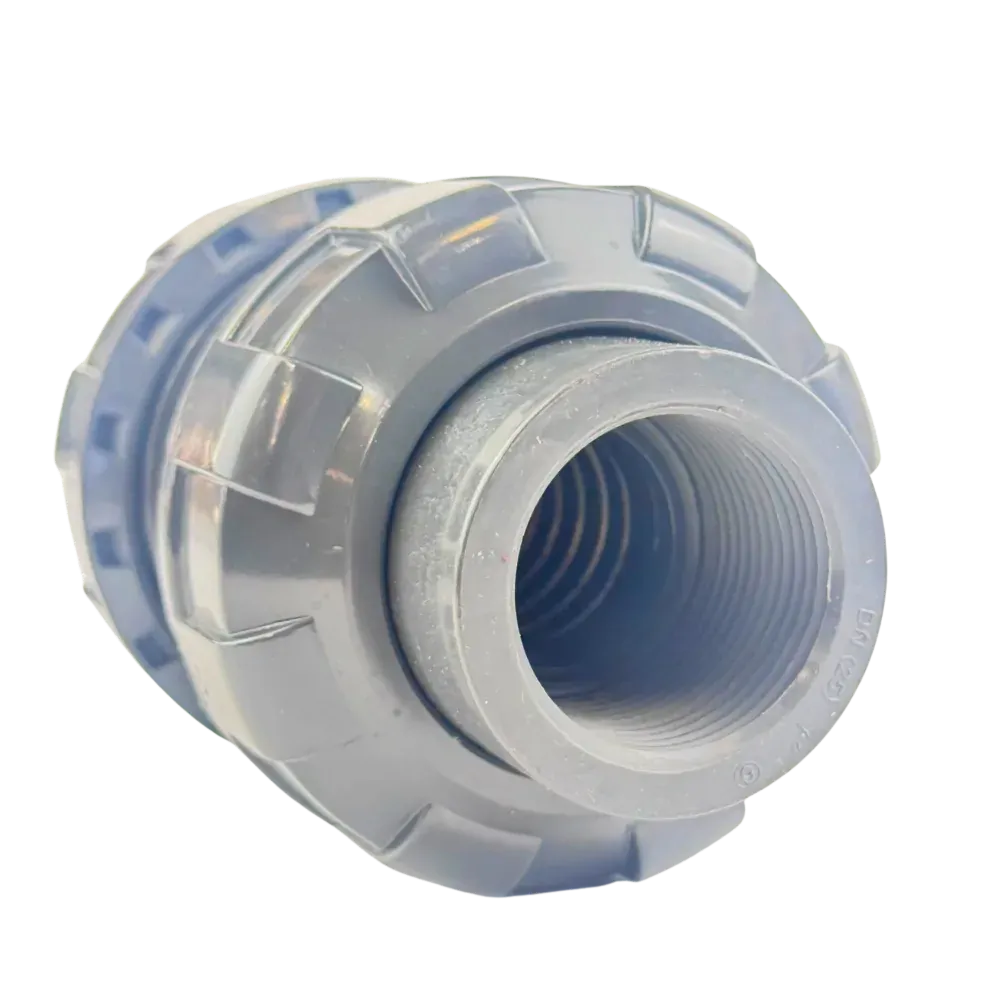

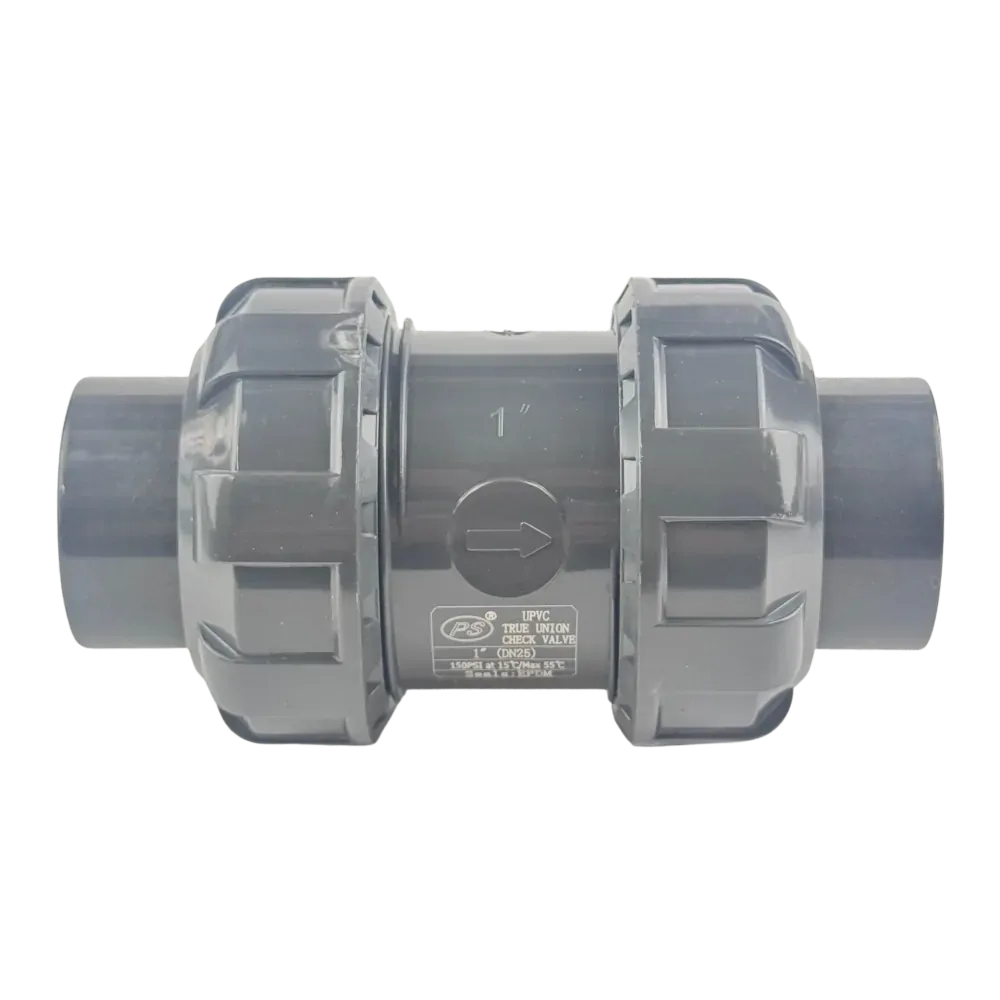

UV Stabalised PVC Ball Check Valve

From $16.50

Inc GST
In Stock
Make an Enquiry
  • UV stabalised PVC Ball Check Valve
  • EPDM or FKM seat
  • BSP threaded or Solvent Weld Ends
  • 0 to 10 Bar Pressure Range
  • Ambient Media Temperature
  • Stainless Steel Spring allows operation on any angle

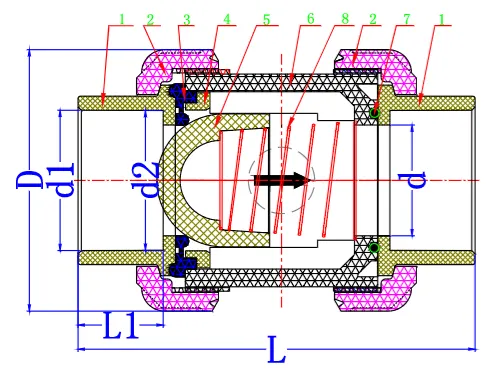

PVC Ball Check Valve

Model Size D d1 d2 L L1
BCPEB-04 1/2 54 21.4 21.25 91 23
BCPEB-05 3/4 63 26.75 26.58 106.5 26
BCPEB-06 1 73.5 33.52 33.28 125 29
BCPEB-07 1 ¼ 84.5 42.28 42.05 141 33
BCPEB-08 1 ½ 98 48.4 48.12 150.5 35.5
BCPEB-09 2 119 60.45 60.18 169.5 38.5

All dimensions in mm unless shown otherwise.

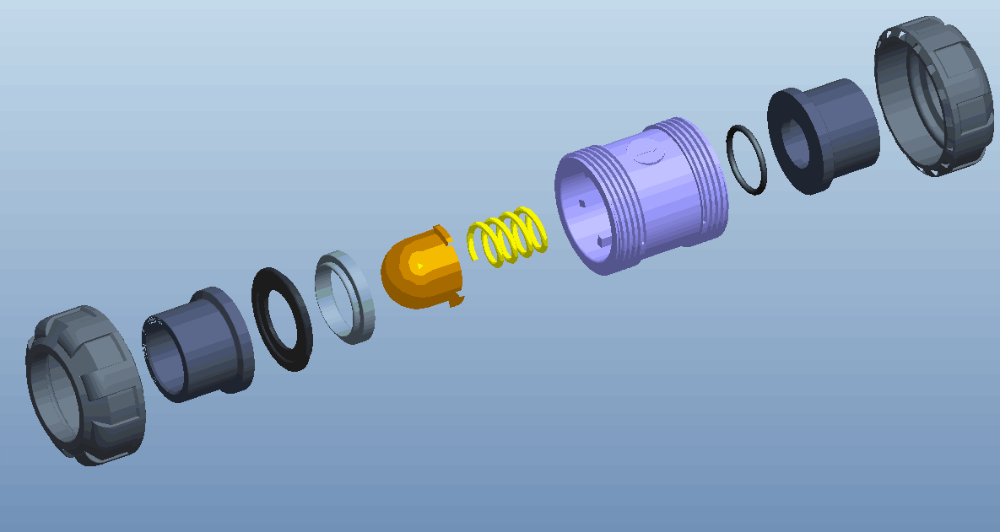

PVC Check Valve Exploded View

Item Material
Body UV Stabalised PVC
Spring 304 Stainless Steel
Ball UV Stabalised PVC
Seals EPDM or FKM
Seat EPDM or FKM

Size 1/2" to 2" BSP & Solvent Weld
Body UV Stabalised PVC
Seat EPDM or FKM
Pressure Range 0 to 10 BAR
Temperature Ambient
