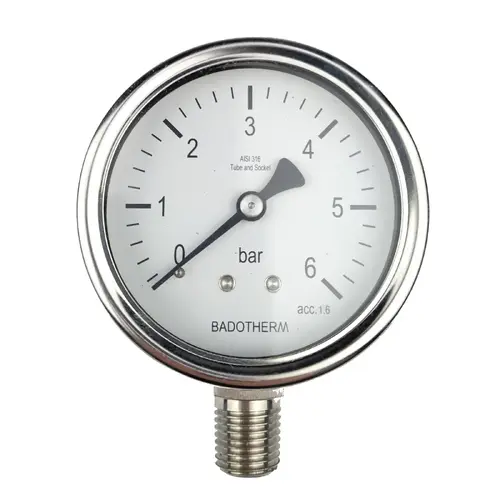

Features:
These gauges are designed to withstand the severest of
operating conditions of the ambient environment and the process medium.
Size | 63mm (2.1/2") |
Accuracy | +/- 1.6% |
Range | Depends upon model |
Work Pressure | 3/4 of full scale |
Fluctuating pressure | 2/3 of full scale |
Short Time Pressure | Full Scale |
Operating Temperature | -40°C to 90°C |
Media | Compatible gases and liquids |
Housing | 304 Stainless Steel Case with Bayonnet Bezel |
Window | Polycarbonate / Glass |
Liquid Filled | No, but fillable |
Bourdon Tube | 316 Stainless Steel |
Movement | 316 Stainless Steel |
Connection | 316 Stainless Steel |
Thread | 1/4" BSPT / NPT |
Scale | kPa / PSI / bar |
Dia 63mm
O/All Height 88mm
PROCESS CONNECTION AISI316(L)
TUBE AISI316
CASE AISI304, bayonet
BEZEL AISI304, bayonet
MOVEMENT stainless steel
WINDOW glass
POINTER aluminium, black
DIAL aluminium, white with black markings
Std warranty applies.
