SKU: FCVC

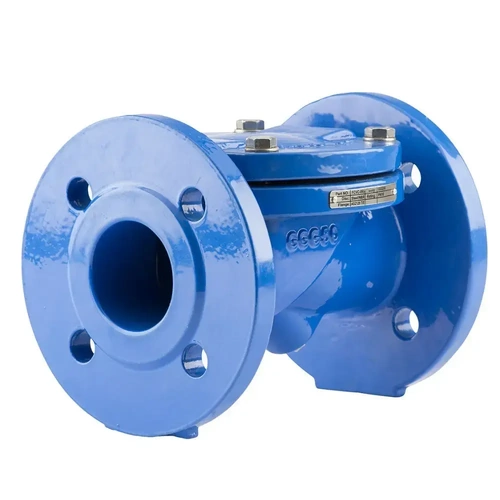

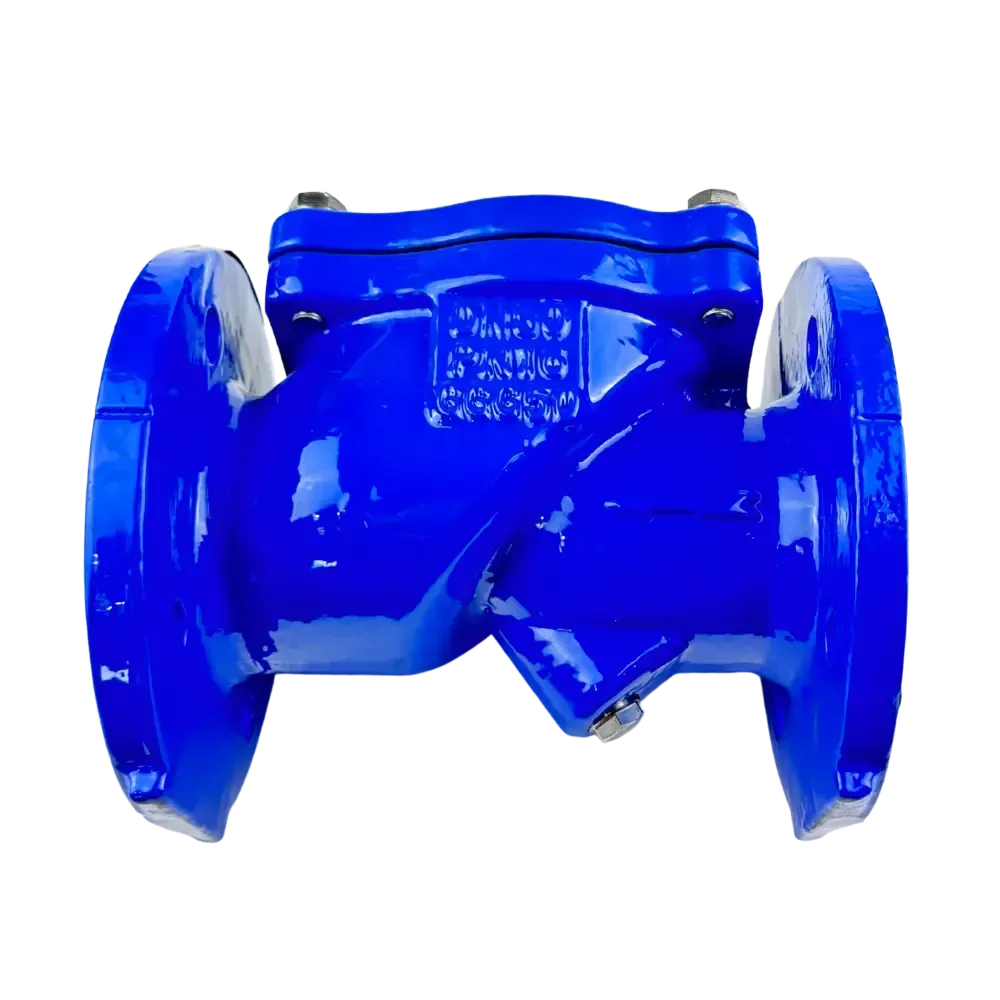

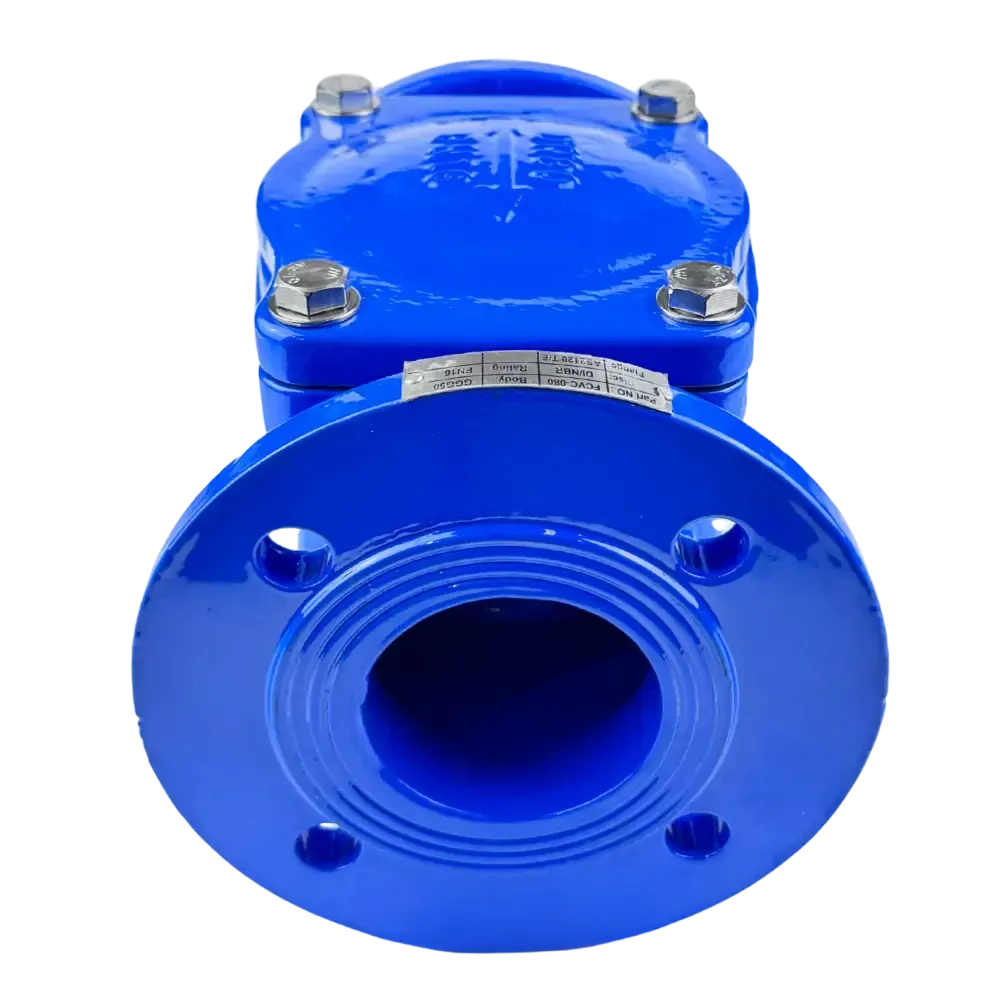

Cast Iron Flex Check Valve

From $187.00

Inc GST
In Stock
Make an Enquiry
  • Ductile Iron Flex Check Valve
  • NBR coated Ductile Iron Flap
  • 0 to 16 Bar Pressure Range
  • 0°C to 80°C temperature range
  • Horizontal Installation
  • Flanged to AS2129 Table E

Flex Check Valve Consctruction

DN D D1 D2 L b f Z-Ød kgs Plug Size
50 165 114.3 94 203 9 3 4-18 7.80 M12*1.5
65 185 127 107 216 9 3 4-18 10.50 M12*1.5
80 200 146 126 241 9 3 4-18 12.70 M16*1.5
100 220 177.8 156 292 9 3 8-18 19.00 M16*1.5
125 250 209.6 184 330 9 3 8-18 26.50 M16*1.5
150 285 235 211 356 9 3 8-22 33.50 M16*1.5
200 340 292.1 266 495 20 3 8-22 70.00 M18-1.5
250 405 355.6 319 622 22 3 12-22 124.50 M18-1.5
300 460 406.4 370 698 24.5 4 12-26 230.00 M18-1.5

All dimensions in mm unless shown otherwise.

Flex Check Valve Consctruction

Number Part Material
1 Body FBE coated Ductile Iron
2 Flap NBR coated Ductile Iron
3 Cover FBE coated Ductile Iron
4 Cover Bolts A2-70
5 Gasket EPDM
6 Plug A2-70

Size 50mm to 300mm
Flange AS4087 PN16 / AS2129 Table E
Body FBE Coated Ductile Iron
Disc NBR Coated
Pressure Range 0 to 16 BAR
Temperature 0 to 80°C

Others Also Bought

FCVC

Cast Iron Flex Check Valve

Features:

Size 50mm to 300mm
Flange AS4087 PN16 / AS2129 Table E
Body FBE Coated Ductile Iron
Disc NBR Coated
Pressure Range 0 to 16 BAR
Temperature 0 to 80°C

Description:

  • Ductile Iron Flex Check Valve
  • NBR coated Ductile Iron Flap
  • 0 to 16 Bar Pressure Range
  • 0°C to 80°C temperature range
  • Horizontal Installation
  • Flanged to AS2129 Table E
.

Cast Iron Flex Check Valve

FCVC

Dimensions:

Flex Check Valve Consctruction

DN D D1 D2 L b f Z-Ød kgs Plug Size
50 165 114.3 94 203 9 3 4-18 7.80 M12*1.5
65 185 127 107 216 9 3 4-18 10.50 M12*1.5
80 200 146 126 241 9 3 4-18 12.70 M16*1.5
100 220 177.8 156 292 9 3 8-18 19.00 M16*1.5
125 250 209.6 184 330 9 3 8-18 26.50 M16*1.5
150 285 235 211 356 9 3 8-22 33.50 M16*1.5
200 340 292.1 266 495 20 3 8-22 70.00 M18-1.5
250 405 355.6 319 622 22 3 12-22 124.50 M18-1.5
300 460 406.4 370 698 24.5 4 12-26 230.00 M18-1.5

All dimensions in mm unless shown otherwise.

.

Cast Iron Flex Check Valve

FCVC

Construction:

Flex Check Valve Consctruction

Number Part Material
1 Body FBE coated Ductile Iron
2 Flap NBR coated Ductile Iron
3 Cover FBE coated Ductile Iron
4 Cover Bolts A2-70
5 Gasket EPDM
6 Plug A2-70

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult PCIPro Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.
