Flanged UV Stabalised PVC Manual Ball Valve

From $44.00

Inc GST
In Stock
Make an Enquiry
  • 2 way UV Stabalised PVC Ball Valve
  • Chem Lock insert with True Union Ends
  • ANSI 150 Flanged Ends
  • FKM or EPDM seals with PTFE seats
Model Size DN(mm) Media Pressure Media Temperature Torque (Nm)
BLP6F-L-E 1 25 Vacuum to 10 Bar Ambient 4
BLP7F-L-E 1 ¼ 32 Vacuum to 10 Bar Ambient 5
BLP8F-L-E 1 ½ 40 Vacuum to 10 Bar Ambient 7.5
BLP9F-L-E 2 50 Vacuum to 10 Bar Ambient 8.5
BLP10F-L-E 2 ½ 65 Vacuum to 10 Bar Ambient 13
BLP11F-L-E 3 80 Vacuum to 10 Bar Ambient 16
BLP12F-L-E 4 100 Vacuum to 10 Bar Ambient 25

Change 'E' to 'V' for FKM seals.

UPVC ANSI 150 Flanged Ball Valve Dimensions

Size d C D L L1 W H1 H2 F M I n-e
15 15 60.5 95 134 52 84 52 27.5 31 - M6 4-15
20 20 70 105 144 54 90 59 32 33 - M6 4-15
25 25 79.5 125 160 62 106 67.5 37.25 40 - M6 4-19
32 32 89 140 178 70 116 77.5 42.75 52 - M8 4-19
40 40 98.5 150 195 79.5 128 90 50 52 - M8 4-19
50 50 120.7 165 215 85 140 106 60 70 - M8 4-19
65 63 139.7 182 320 133 210 136.5 76.5 84 45 M10 4-19
80 75 152 200 350 146 235 149.5 86 84 45 M10 8-19
100 90 190.5 228 395 160 260 175 107 121 49 M12 8-19

All dimensions in mm unless shown otherwise.

UPVC Flanged Manual Ball Valve

Number Part Name Raw Material QTY
3,4,8,9 O-RIng EPDM or FKM 7
1 Socket End UPVC 2
2 Cap UPVC 2
6 Shaft UPVC 1
7 Handle ABS 1
10 Lining UPVC 1
11 Anti-leak Ring PTFE 2
12 Ball UPVC 1
13 Body UPVC 1
14 Flange Buckle UPVC 2

Size 25mm to 100mm ANSI 150
Body UV stabalised PVC
Seat PTFE
Pressure 10 BAR
Temperature Ambient
Actuation Manual

BLPF

Flanged UV Stabalised PVC Manual Ball Valve

Features:

Size 25mm to 100mm ANSI 150
Body UV stabalised PVC
Seat PTFE
Pressure 10 BAR
Temperature Ambient
Actuation Manual

Description:

  • 2 way UV Stabalised PVC Ball Valve
  • Chem Lock insert with True Union Ends
  • ANSI 150 Flanged Ends
  • FKM or EPDM seals with PTFE seats
Model Size DN(mm) Media Pressure Media Temperature Torque (Nm)
BLP6F-L-E 1 25 Vacuum to 10 Bar Ambient 4
BLP7F-L-E 1 ¼ 32 Vacuum to 10 Bar Ambient 5
BLP8F-L-E 1 ½ 40 Vacuum to 10 Bar Ambient 7.5
BLP9F-L-E 2 50 Vacuum to 10 Bar Ambient 8.5
BLP10F-L-E 2 ½ 65 Vacuum to 10 Bar Ambient 13
BLP11F-L-E 3 80 Vacuum to 10 Bar Ambient 16
BLP12F-L-E 4 100 Vacuum to 10 Bar Ambient 25

Change 'E' to 'V' for FKM seals.

.

Flanged UV Stabalised PVC Manual Ball Valve

BLPF

Dimensions:

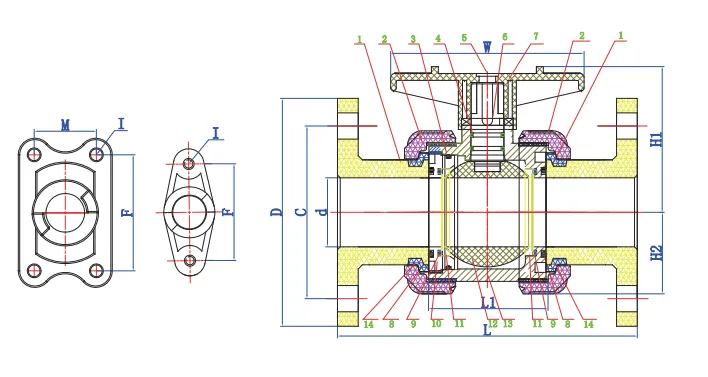

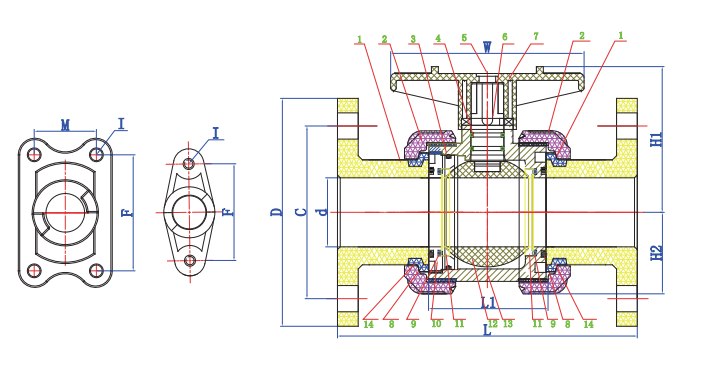

UPVC ANSI 150 Flanged Ball Valve Dimensions

Size d C D L L1 W H1 H2 F M I n-e
15 15 60.5 95 134 52 84 52 27.5 31 - M6 4-15
20 20 70 105 144 54 90 59 32 33 - M6 4-15
25 25 79.5 125 160 62 106 67.5 37.25 40 - M6 4-19
32 32 89 140 178 70 116 77.5 42.75 52 - M8 4-19
40 40 98.5 150 195 79.5 128 90 50 52 - M8 4-19
50 50 120.7 165 215 85 140 106 60 70 - M8 4-19
65 63 139.7 182 320 133 210 136.5 76.5 84 45 M10 4-19
80 75 152 200 350 146 235 149.5 86 84 45 M10 8-19
100 90 190.5 228 395 160 260 175 107 121 49 M12 8-19

All dimensions in mm unless shown otherwise.

.

Flanged UV Stabalised PVC Manual Ball Valve

BLPF

Construction:

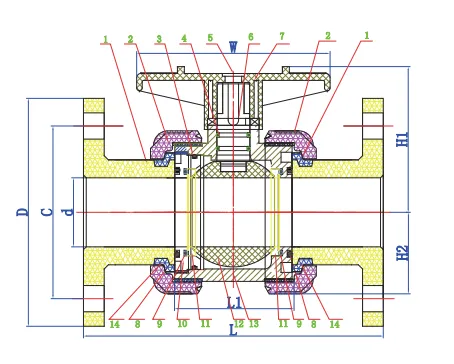

UPVC Flanged Manual Ball Valve

Number Part Name Raw Material QTY
3,4,8,9 O-RIng EPDM or FKM 7
1 Socket End UPVC 2
2 Cap UPVC 2
6 Shaft UPVC 1
7 Handle ABS 1
10 Lining UPVC 1
11 Anti-leak Ring PTFE 2
12 Ball UPVC 1
13 Body UPVC 1
14 Flange Buckle UPVC 2
