SKU: FT100556

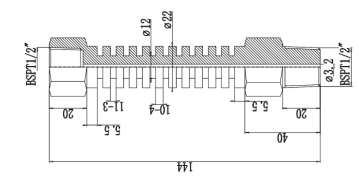

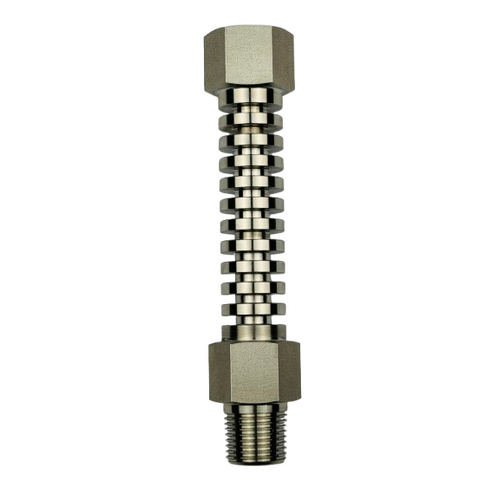

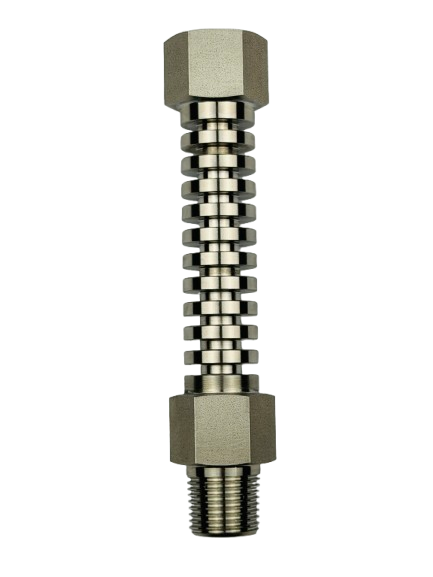

Stainless Steel Cooling Element, 1/2 Female x 1/2 Male BSPT

$110.00

Inc GST
In Stock
Make an Enquiry

Cooling elements are used when the medium temperature would exceed the permissible temperature limit of the pressure measuring instrument. Through air circulation and heat radiation at the cooling element, the medium temperature is lowered sufficiently so that the temperature limits are not exceeded and any possible temperature error is reduced.The cooling element can also be used for warming very cold media, provided that the ambient temperature is higher than that of the media.

For installation between pressure measuring instruments and high-temperature process connections. Helps reduce heat transfer to pressure gauges, pressure transmitters and other pressure measuring devices. Suitable for steam, hot water, boiler, heating, chemical processing and general industrial piping systems.

DATA SHEET
