SKU: KGSHR

Stainless Steel Manual Knife Gate Valve

From $664.40

Inc GST
In Stock
Make an Enquiry
  • Table E Lugged 316 Stainless Steel Knife Gate Valve
  • Metal to Metal or Resilient (NBR) Seat options
  • Rising Stem
  • 0 to 10 Bar Pressure Range
  • 0°C to 80°C NBR Seat Temperature Range
  • 0°C to 150°C Metal Seat Temperature Range
  • Uni Directional Flow
  • Designed to MSS SP-81

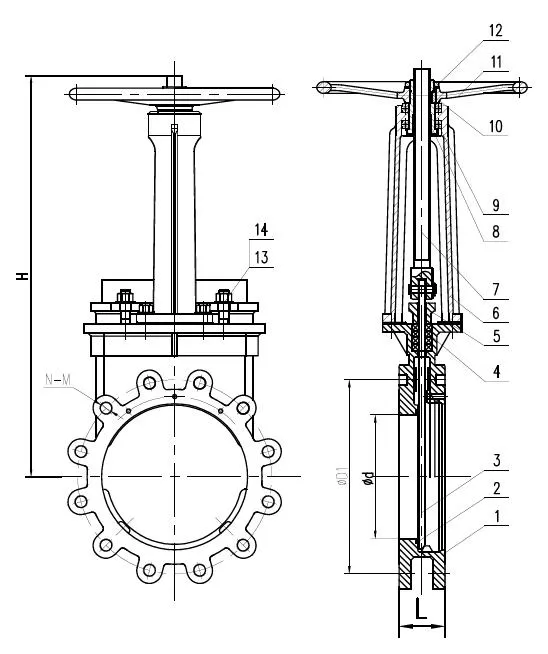

Stainless Steel Hand Wheel Knife Gate Valve

N L D1 (PCD) d (bore) N-M H
50 42 114 45 4-M16 320
65 43 127 60 4-M16 325
80 45 146 74 4-M16 360
100 45 178 93 8-M16 400
125 52 210 116 8-M16 441
150 52 235 138 8-M20 507
200 65 292 188 8-M20 625
250 70 356 233 12-M20 770
300 70 406 281 12-M22 873
350 70 470 330 12-M22 981
400 96 521 368 12-M22 1098
450 108 584 415 16-M22 1219
500 121 642 460 16-M22 1329
600 148 756 560 16-M22 1553

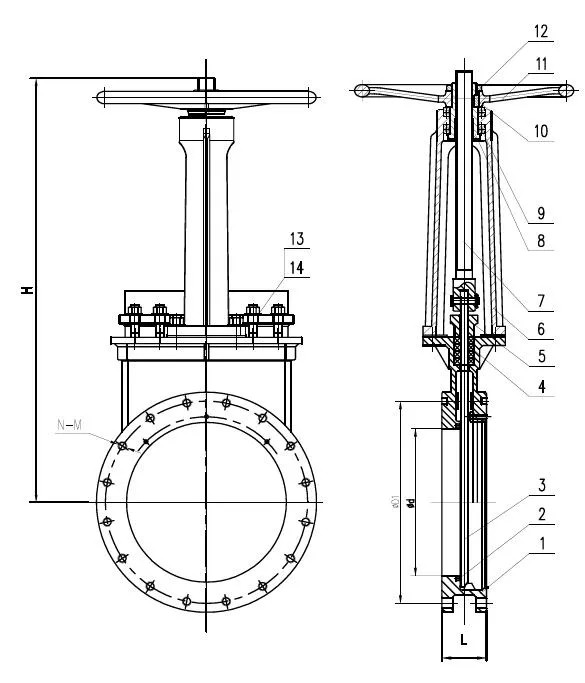

Round above 350mm

Stainless Steel Manual Knife Gate Valve

Stainless Steel Hand Wheel Knife Gate Valve

No. Item Material
1 Body CF8M
2 Seat NBR or metal
3 Disc SS316
4 Packing PTFE
5 Gland CF8
6 Yoke CF8
7 Stem SS304
8 Yoke Sleeve Copper
9 Bearing GCr15
10 Key 45
11 Hand wheel KTH350-10
12 Lock Nut 35
13 Bolt B8M
14 Nut 8M

Stainless Steel Manual Knife Gate Valve

Size 50mm to 600mm
Body 316 Stainless Steel
Seat Metal or NBR
Gate 316 Stainless Steel
Pressure 10 BAR
Actuation Hand Wheel Rising Spindle
