SKU: SCVS

Wafer Swing Check Valve

From $115.50

Inc GST
In Stock
Make an Enquiry
  • Wafer 316 Stainless Steel Swing Check Valve
  • Low Cracking Pressure
  • FKM Seat

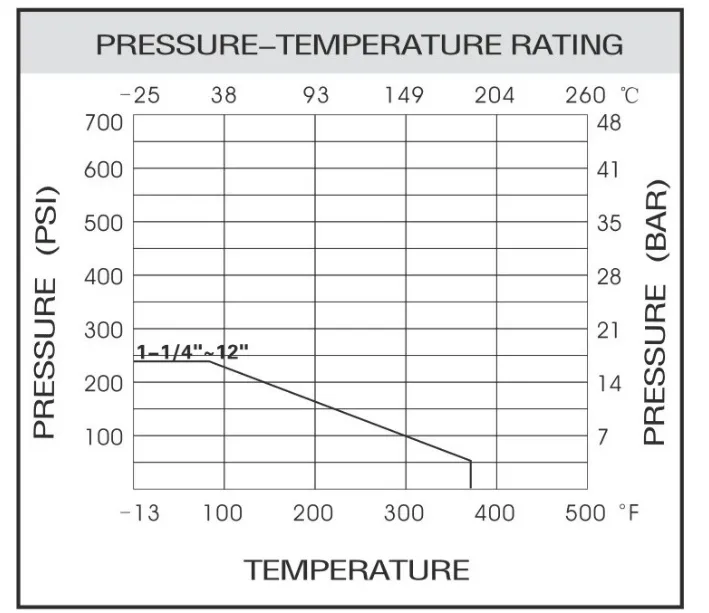

  • 0 to 16 Bar Pressure Range
  • -25°C to 120°C Temperature Range
  • Horizontal installation only
  • Tested to API598

Stainless Wafer Swing Check Valve

Wafer Stainless Steel Check Valve

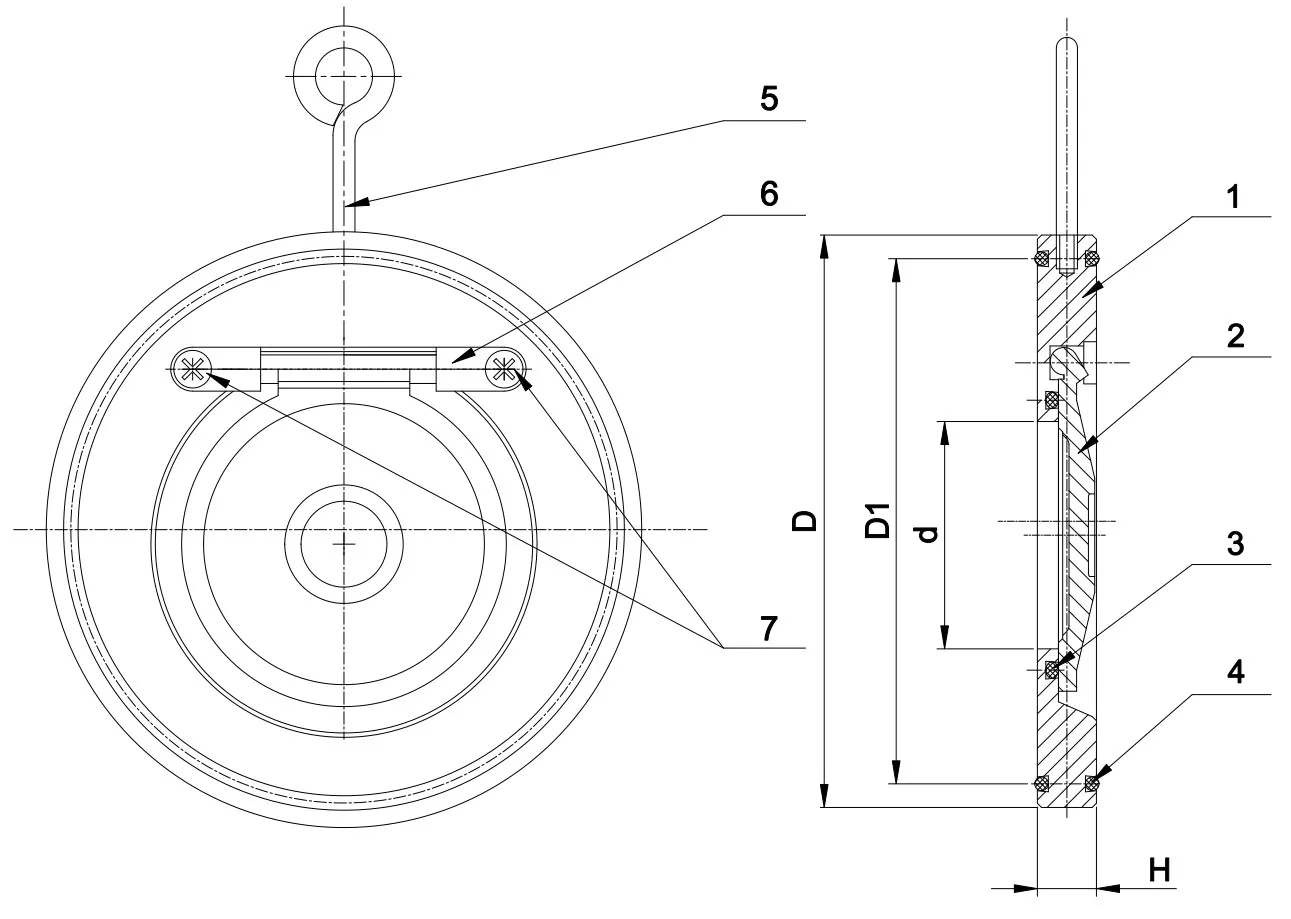

Model Size DN d D D1 H
SCVS-050 2" 50 32 105 84 14
SCVS-065 2-1/2" 65 40 124 96 14
SCVS-080 3" 80 54 136 117.5 14
SCVS-100 4" 100 70 164 148 18
SCVS-125 5" 125 92 194 166 18
SCVS-150 6" 150 114 220 197 20
SCVS-200 8" 200 154 275 249 22
SCVS-250 10" 250 200 330 310 26
SCVS-300 12" 300 230 380 358 30

All dimensions in mm unless shown otherwise.


Wafer Stainless Steel Check Valve

Item Part Material Qty
1 Body F316 1
2 Disc CF8M 1
3 O-ring Viton 1
4 O-ring Viton 2
5 Hook SS304 1
6 Axis Stopper SS316 2
7 Axis Screw SS316 2

Size 50mm to 600mm
Body 316 Stainless Steel
Seat FKM
Pressure Range 0 to 16 BAR
Temperature -20°Cto 120°C

Others Also Bought

SCVS

Wafer Swing Check Valve

Features:

Size 50mm to 600mm
Body 316 Stainless Steel
Seat FKM
Pressure Range 0 to 16 BAR
Temperature -20°Cto 120°C

Description:

  • Wafer 316 Stainless Steel Swing Check Valve
  • Low Cracking Pressure
  • FKM Seat
  • 0 to 16 Bar Pressure Range
  • -25°C to 120°C Temperature Range
  • Horizontal installation only
  • Tested to API598

Stainless Wafer Swing Check Valve

.

Wafer Swing Check Valve

SCVS

Dimensions:

Wafer Stainless Steel Check Valve

Model Size DN d D D1 H
SCVS-050 2" 50 32 105 84 14
SCVS-065 2-1/2" 65 40 124 96 14
SCVS-080 3" 80 54 136 117.5 14
SCVS-100 4" 100 70 164 148 18
SCVS-125 5" 125 92 194 166 18
SCVS-150 6" 150 114 220 197 20
SCVS-200 8" 200 154 275 249 22
SCVS-250 10" 250 200 330 310 26
SCVS-300 12" 300 230 380 358 30

All dimensions in mm unless shown otherwise.


.

Wafer Swing Check Valve

SCVS

Construction:

Wafer Stainless Steel Check Valve

Item Part Material Qty
1 Body F316 1
2 Disc CF8M 1
3 O-ring Viton 1
4 O-ring Viton 2
5 Hook SS304 1
6 Axis Stopper SS316 2
7 Axis Screw SS316 2
