Cast Iron Manual Knife Gate Valve

From $297.00

Inc GST
In Stock
Make an Enquiry
  • Table E Lugged Cast Iorn Knife Gate Valve
  • Resilient (NBR) Seat options
  • Rising Stem
  • 0 to 10 Bar Pressure Range
  • 0°C to 80°C NBR Seat Temperature Range
  • Uni Directional Flow
  • Designed to JB308

Cast Iron Handwheel Knife Gate Valve

DN L ØD1 N - M
50 40 114 4 – M16
65 40 127 4 – M16
80 50 146 4 – M16
100 50 178 8 – M16
125 50 210 8 – M16
150 60 235 8 – M20
200 60 292 8 – M20
250 70 356 12 - M20
300 70 406 12 - M22

All dimensions in mm unless otherwise shown.

Cast Iron Handwheel Knife Gate Valve

No. Item Material
1 Body GGG40 Cast Iron
2 Seat NBVR
3 Disc 316 S.S
4 Packing PTFE
5 Gland GGG40 Cast Iron
6 Plate Carbon Steel
7 Stem 2Cr13
8 Yoke Sleeve Copper Alloy
9 Bear GCr15
10 Key 1045
11 Handwheel KTH350-10
12 Lock Nut 1045
13 Bolt B8
14 Nut 8

Size 50mm to 300mm
Body Cast Iron
Seat NBR
Gate 316 Stainless Steel
Pressure 10 BAR
Actuation Hand Wheel Rising Spindle

Others Also Bought

KGDHWN

Cast Iron Manual Knife Gate Valve

Features:

Size 50mm to 300mm
Body Cast Iron
Seat NBR
Gate 316 Stainless Steel
Pressure 10 BAR
Actuation Hand Wheel Rising Spindle

Description:

  • Table E Lugged Cast Iorn Knife Gate Valve
  • Resilient (NBR) Seat options
  • Rising Stem
  • 0 to 10 Bar Pressure Range
  • 0°C to 80°C NBR Seat Temperature Range
  • Uni Directional Flow
  • Designed to JB308
.

Cast Iron Manual Knife Gate Valve

KGDHWN

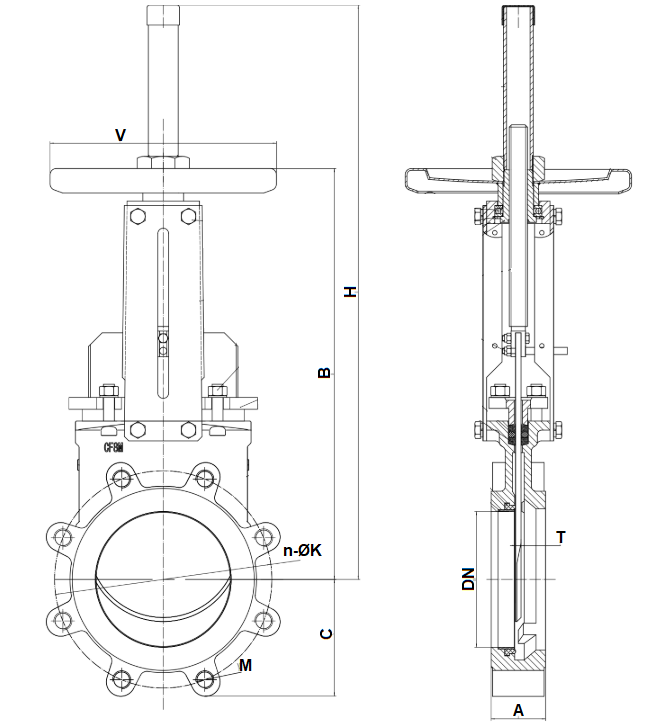

Dimensions:

Cast Iron Handwheel Knife Gate Valve

DN L ØD1 N - M
50 40 114 4 – M16
65 40 127 4 – M16
80 50 146 4 – M16
100 50 178 8 – M16
125 50 210 8 – M16
150 60 235 8 – M20
200 60 292 8 – M20
250 70 356 12 - M20
300 70 406 12 - M22

All dimensions in mm unless otherwise shown.

.

Cast Iron Manual Knife Gate Valve

KGDHWN

Construction:

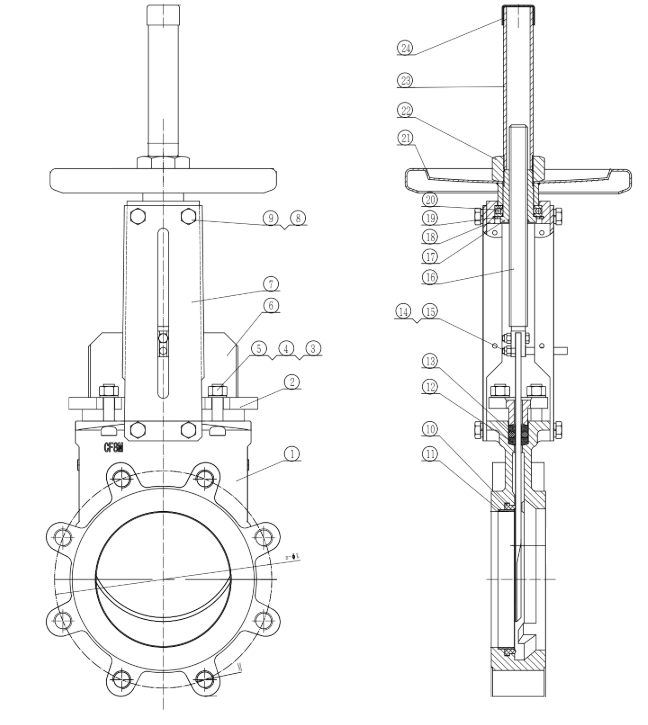

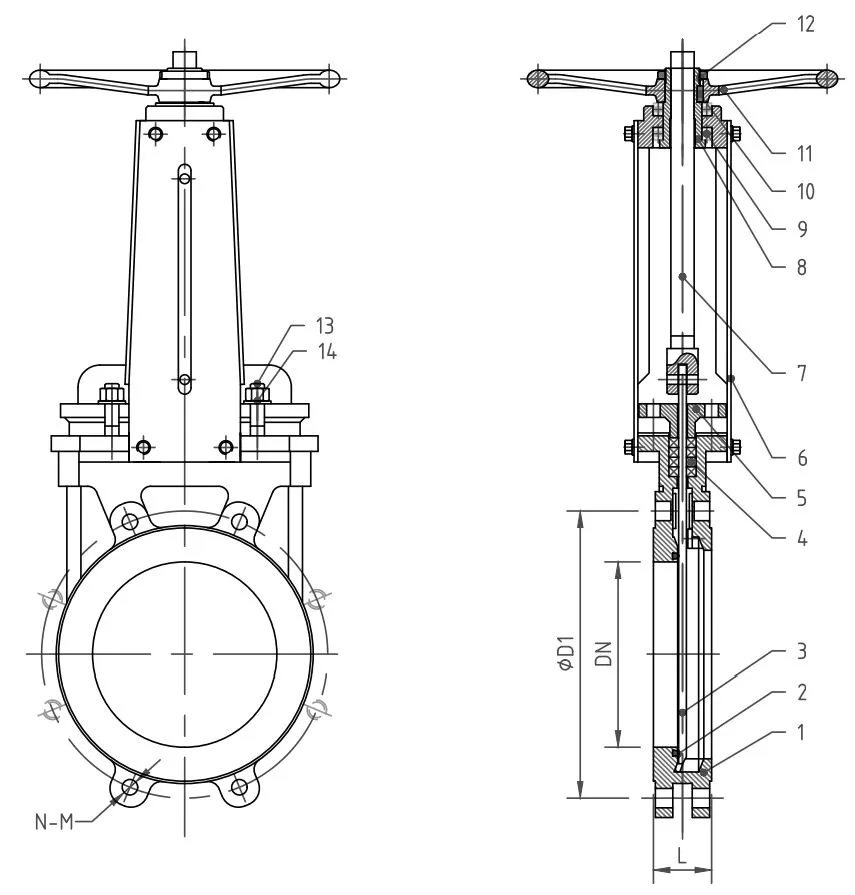

Cast Iron Handwheel Knife Gate Valve

No. Item Material
1 Body GGG40 Cast Iron
2 Seat NBVR
3 Disc 316 S.S
4 Packing PTFE
5 Gland GGG40 Cast Iron
6 Plate Carbon Steel
7 Stem 2Cr13
8 Yoke Sleeve Copper Alloy
9 Bear GCr15
10 Key 1045
11 Handwheel KTH350-10
12 Lock Nut 1045
13 Bolt B8
14 Nut 8
