Key Way to Star Drive Adaptor

From $8.80

Inc GST
In Stock
Make an Enquiry

Key way drives are common on larger style valves. The problem this presents is when matching it with a more modern actuator which usually use a star drive connection. These drive sleeves will let you adapt between a keyway drive and a star drive.

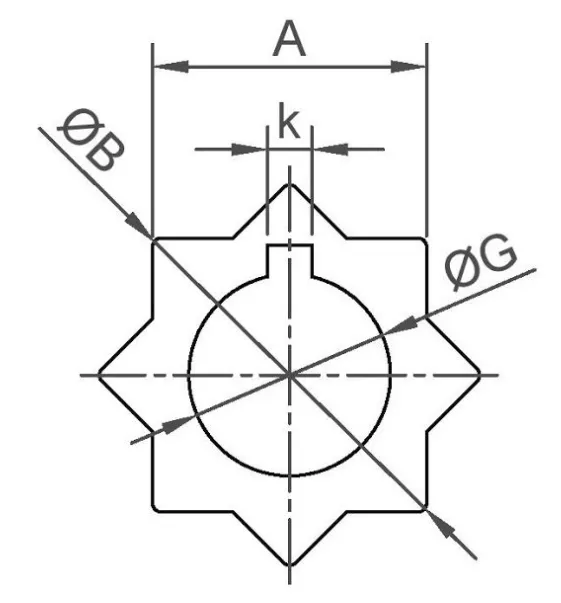

Star drive to key way adaptor

Model A G k B Length
KD17-12.8 17 12.8 3 22.2 19
KD19-12.8 19 12.8 3 25.2 21
KD22-15.9 22 15.9 5 28.2 24
KD22-19.05 22 19.05 5 28.2 24
KD27-19.05 27 19.05 5 36.2 29
KD27-22.2 27 22.2 5 36.2 29
KD36-28.7 36 28.7 8 48.2 38
KD36-31.8 36 31.8 8 48.2 38
KD46-31.8 46 31.8 8 60.2 48
KD46-33.3 46 33.3 10 60.2 48
KD46-38.1 46 38.1 10 60.2 48
KD46-41.4 46 41.4 12 60.2 48

All dimensions in mm unless shown otherwise.



Star drive to key way adaptor

Model A G k B Length
KD17-12.8 17 12.8 3 22.2 19
KD19-12.8 19 12.8 3 25.2 21
KD22-15.9 22 15.9 5 28.2 24
KD22-19.05 22 19.05 5 28.2 24
KD27-19.05 27 19.05 5 36.2 29
KD27-22.2 27 22.2 5 36.2 29
KD36-28.7 36 28.7 8 48.2 38
KD36-31.8 36 31.8 8 48.2 38
KD46-31.8 46 31.8 8 60.2 48
KD46-33.3 46 33.3 10 60.2 48
KD46-38.1 46 38.1 10 60.2 48
KD46-41.4 46 41.4 12 60.2 48

All dimensions in mm unless shown otherwise.

Size 17mm to 46mm
Body Cast Steel
Function Star Drive to Key Way
Factory Accredited CE, ISO 9001, TUV

We Also Recommend

Others Also Bought

KD

Key Way to Star Drive Adaptor

Features:

Size 17mm to 46mm
Body Cast Steel
Function Star Drive to Key Way
Factory Accredited CE, ISO 9001, TUV

Description:

Key way drives are common on larger style valves. The problem this presents is when matching it with a more modern actuator which usually use a star drive connection. These drive sleeves will let you adapt between a keyway drive and a star drive.

Star drive to key way adaptor

Model A G k B Length
KD17-12.8 17 12.8 3 22.2 19
KD19-12.8 19 12.8 3 25.2 21
KD22-15.9 22 15.9 5 28.2 24
KD22-19.05 22 19.05 5 28.2 24
KD27-19.05 27 19.05 5 36.2 29
KD27-22.2 27 22.2 5 36.2 29
KD36-28.7 36 28.7 8 48.2 38
KD36-31.8 36 31.8 8 48.2 38
KD46-31.8 46 31.8 8 60.2 48
KD46-33.3 46 33.3 10 60.2 48
KD46-38.1 46 38.1 10 60.2 48
KD46-41.4 46 41.4 12 60.2 48

All dimensions in mm unless shown otherwise.

.

Key Way to Star Drive Adaptor

KD

Dimensions:



Star drive to key way adaptor

Model A G k B Length
KD17-12.8 17 12.8 3 22.2 19
KD19-12.8 19 12.8 3 25.2 21
KD22-15.9 22 15.9 5 28.2 24
KD22-19.05 22 19.05 5 28.2 24
KD27-19.05 27 19.05 5 36.2 29
KD27-22.2 27 22.2 5 36.2 29
KD36-28.7 36 28.7 8 48.2 38
KD36-31.8 36 31.8 8 48.2 38
KD46-31.8 46 31.8 8 60.2 48
KD46-33.3 46 33.3 10 60.2 48
KD46-38.1 46 38.1 10 60.2 48
KD46-41.4 46 41.4 12 60.2 48

All dimensions in mm unless shown otherwise.
