SKU: ZT

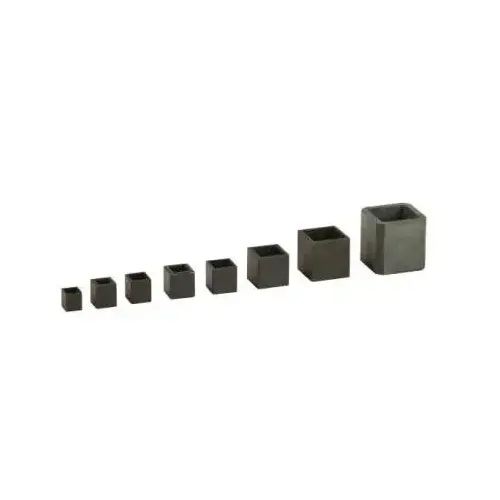

Square Drive Sleeve

From $8.80

Inc GST
In Stock
Make an Enquiry

These square drive adaptors are great for adapting between different size valve and actuator shafts. Quite often the actuator female drive will be bigger than the male drive on the valve. By using these drive sleeves you can adapt between the two.

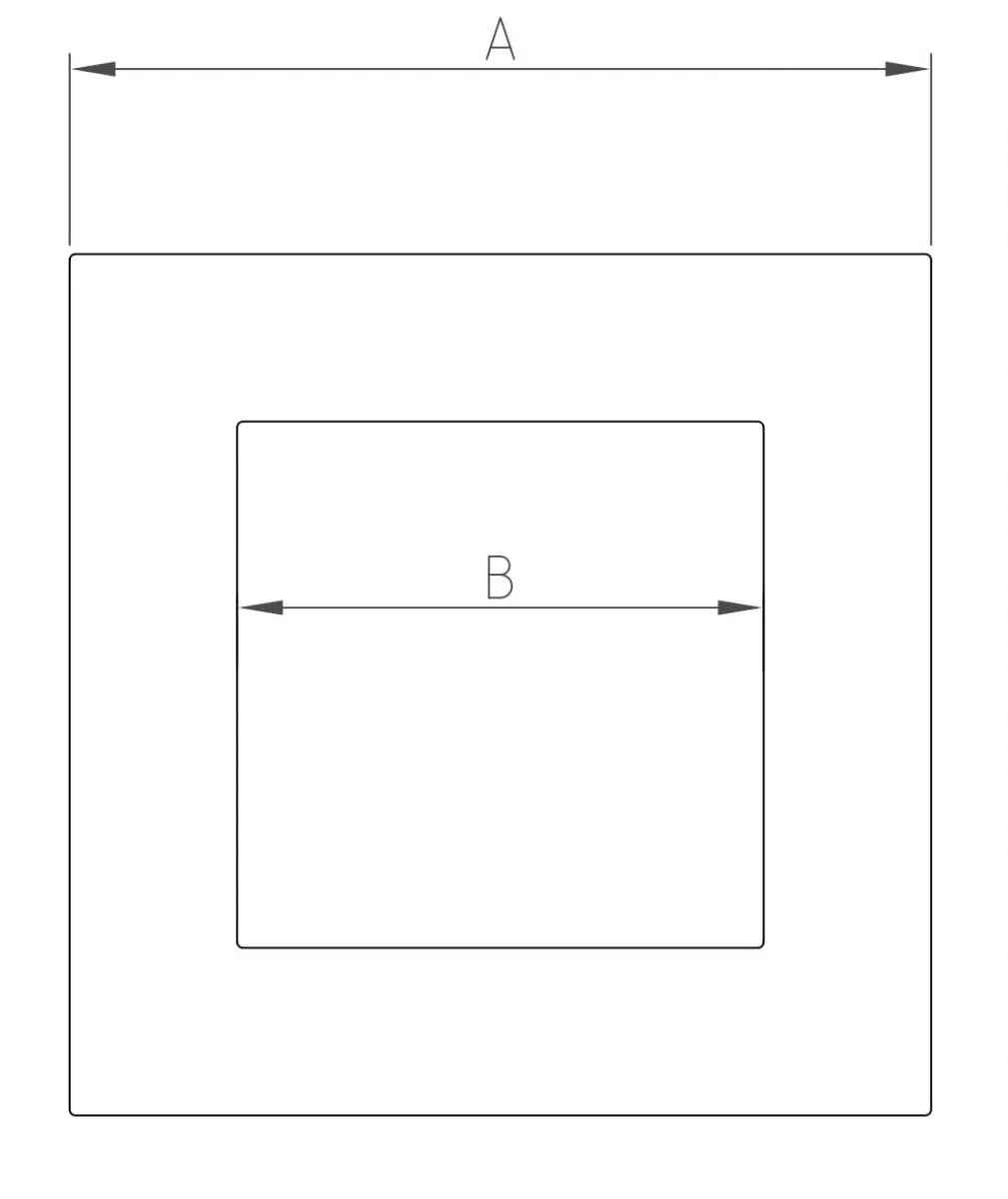

Model A B
ZT11-9SQ.DRIVE 11 9
ZT14-9SQ.DRIVE 14 9
ZT14-11SQ.DRIVE 14 11
ZT17-9SQ.DRIVE 17 9
ZT17-11SQ.DRIVE 17 11
ZT17-14SQ.DRIVE 17 14
ZT22-14SQ.DRIVE 22 14
ZT22-17SQ.DRIVE 22 17
ZT22-19SQ.DRIVE 22 19
ZT27-17SQ.DRIVE 27 17
ZT27-22SQ.DRIVE 27 22
ZT35-27SQ.DRIVE 35 27
ZT36-22SQ.DRIVE 36 22
ZT36-27-36SQ.DRIVE 36 27

Size 11mm to 36mm
Body Cast Steel
Function Square drive adaptor sleeve
Factory Accredited CE, ISO 9001, TUV
